Combination Meter: Location

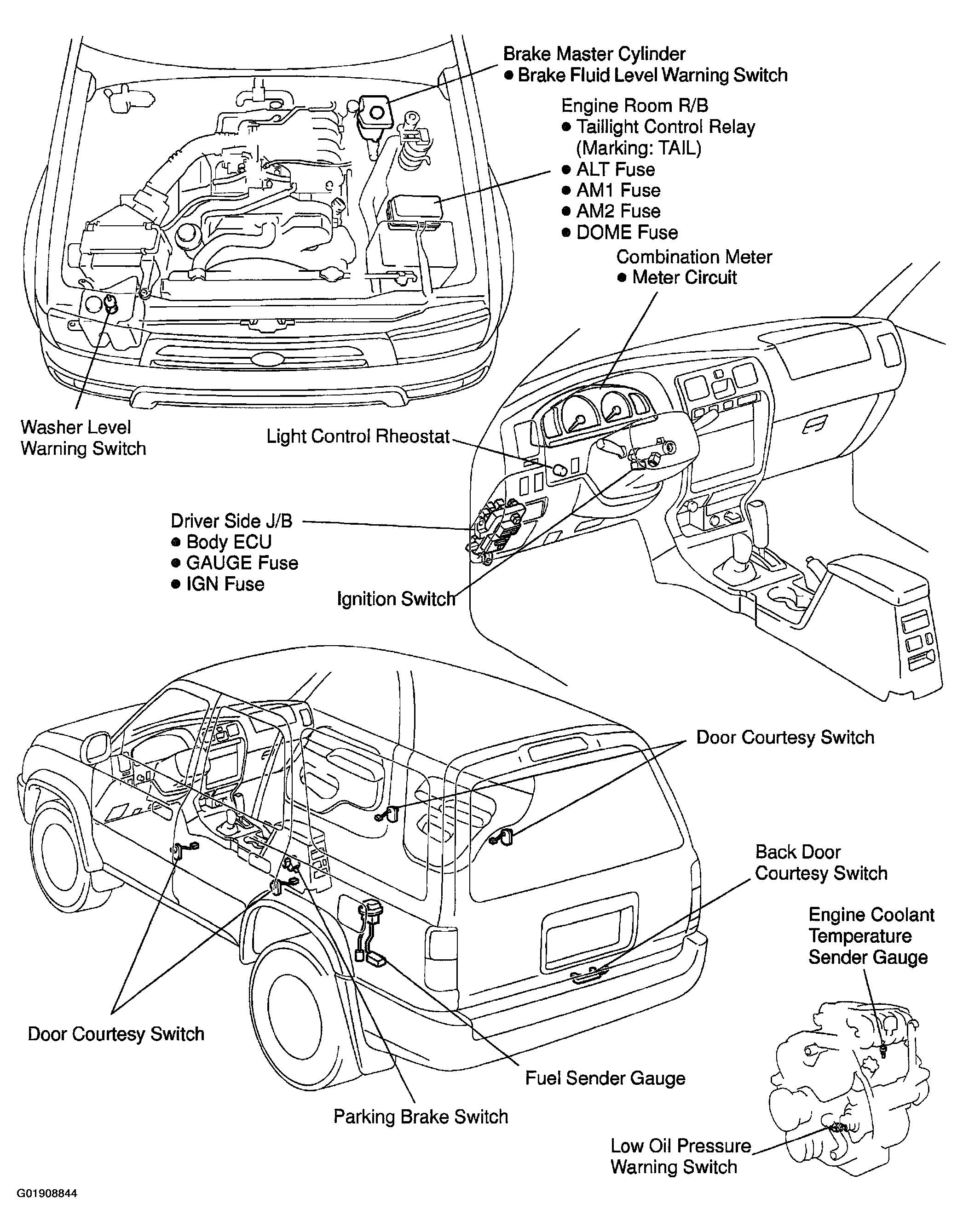

Fig 1: Locating Combination Meter Components

G01908844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
