Combination Meter: Circuit

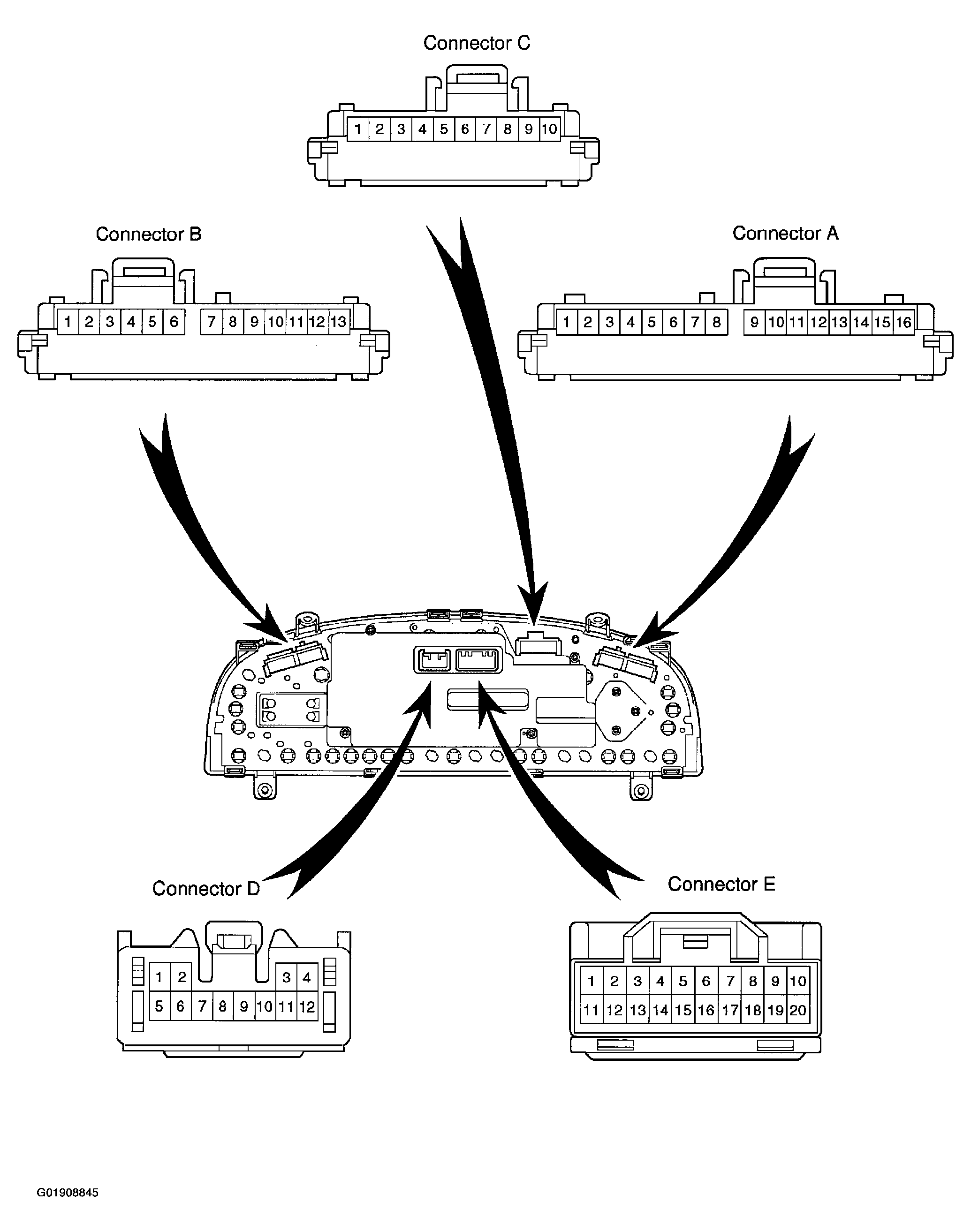

Fig 1: Locating Combination Meter Connectors
G01908845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

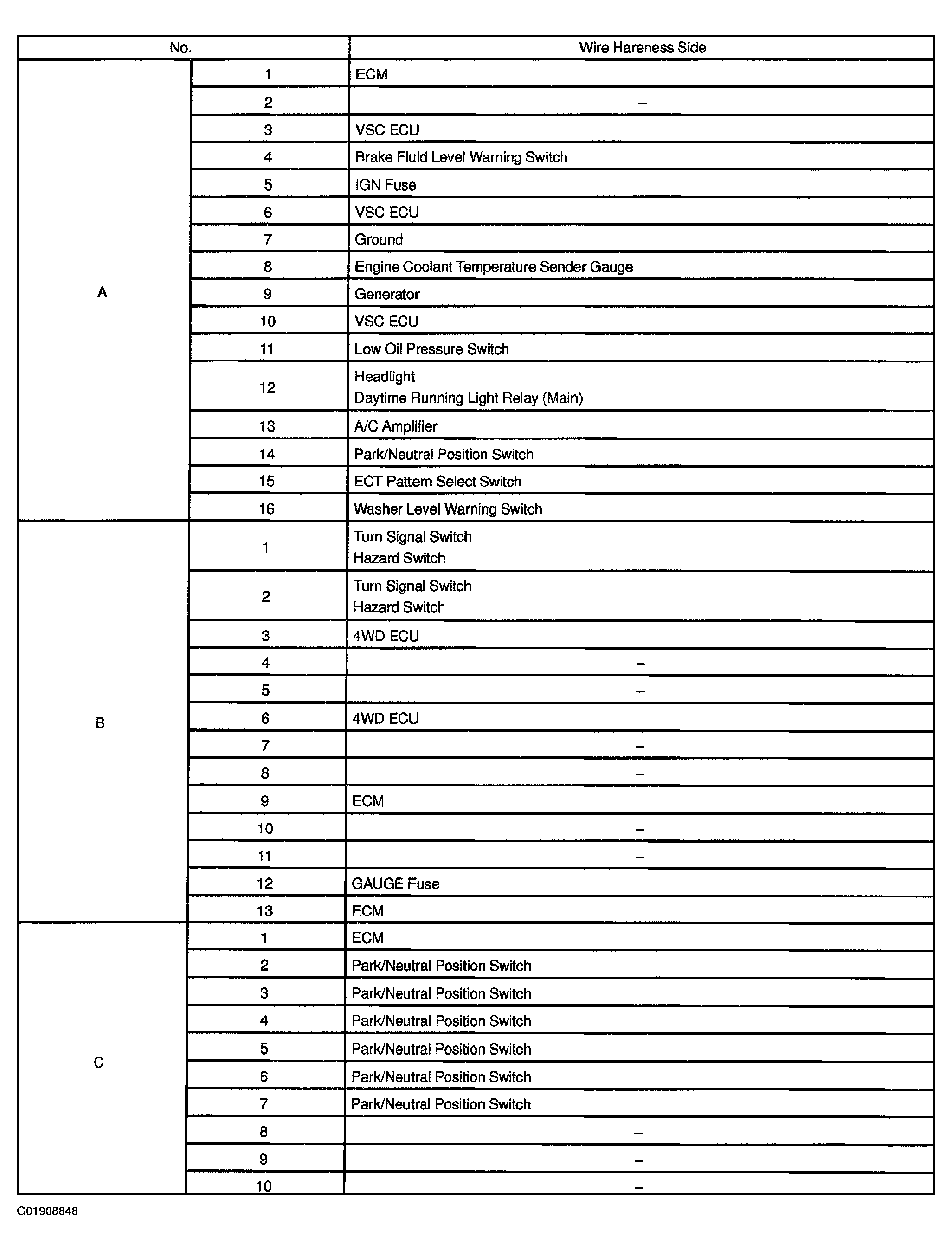

Fig 2: Combination Meter Connector Legend (1 Of 2)
G01908848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

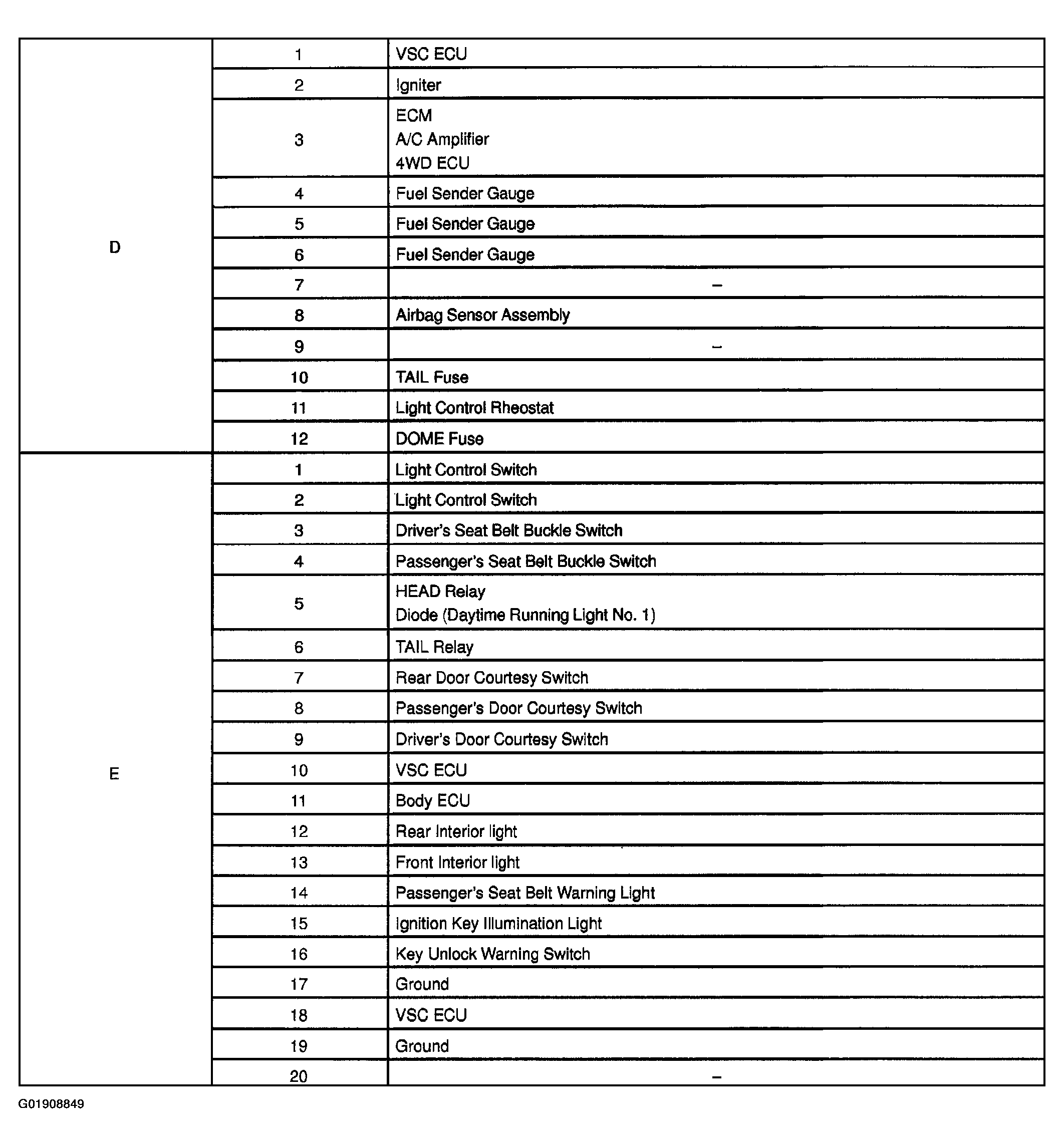

Fig 3: Combination Meter Connector Legend (2 Of 2)
G01908849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

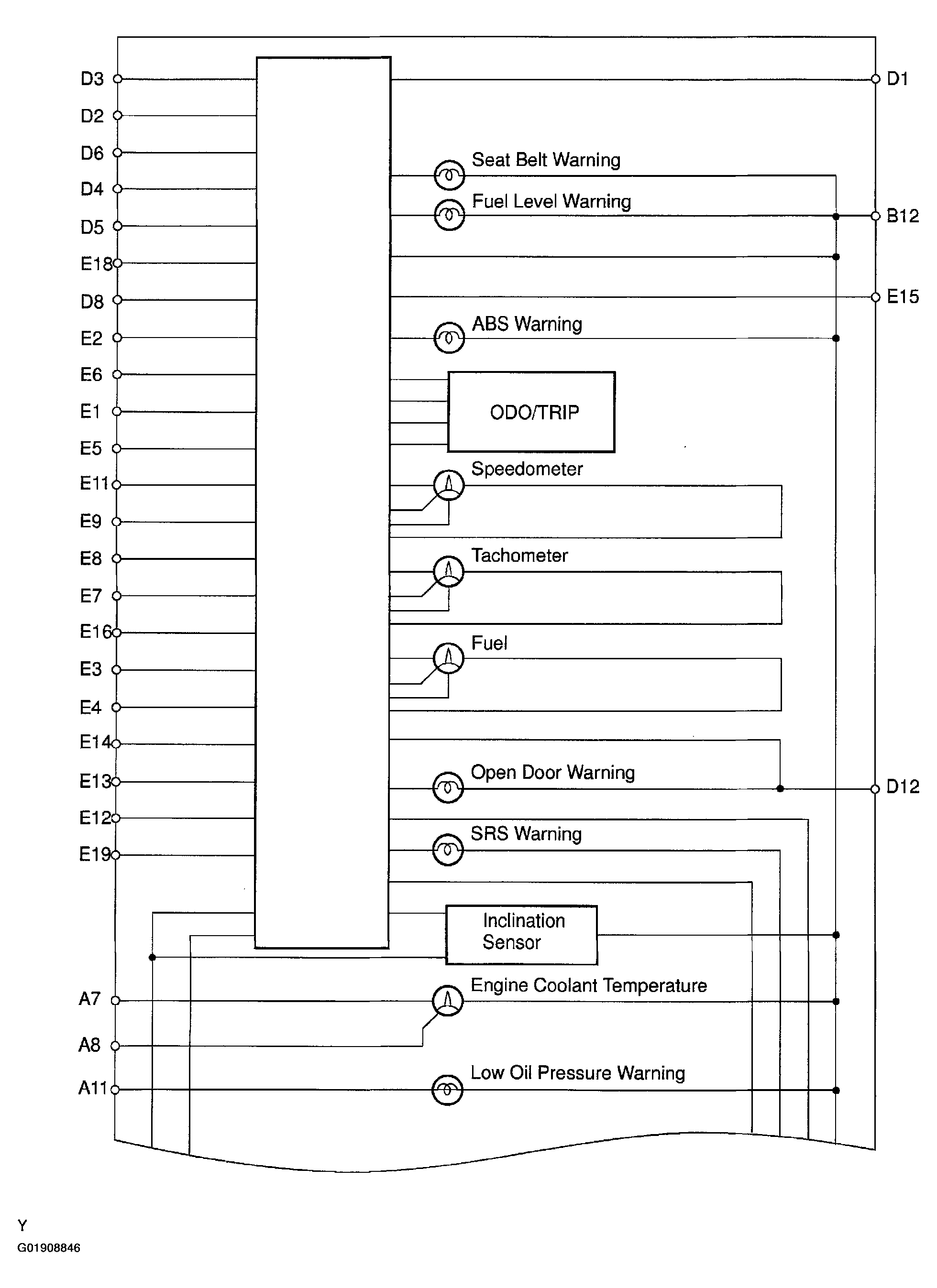

Fig 4: Combination Meter Circuit Schematic (1 Of 2)
G01908846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

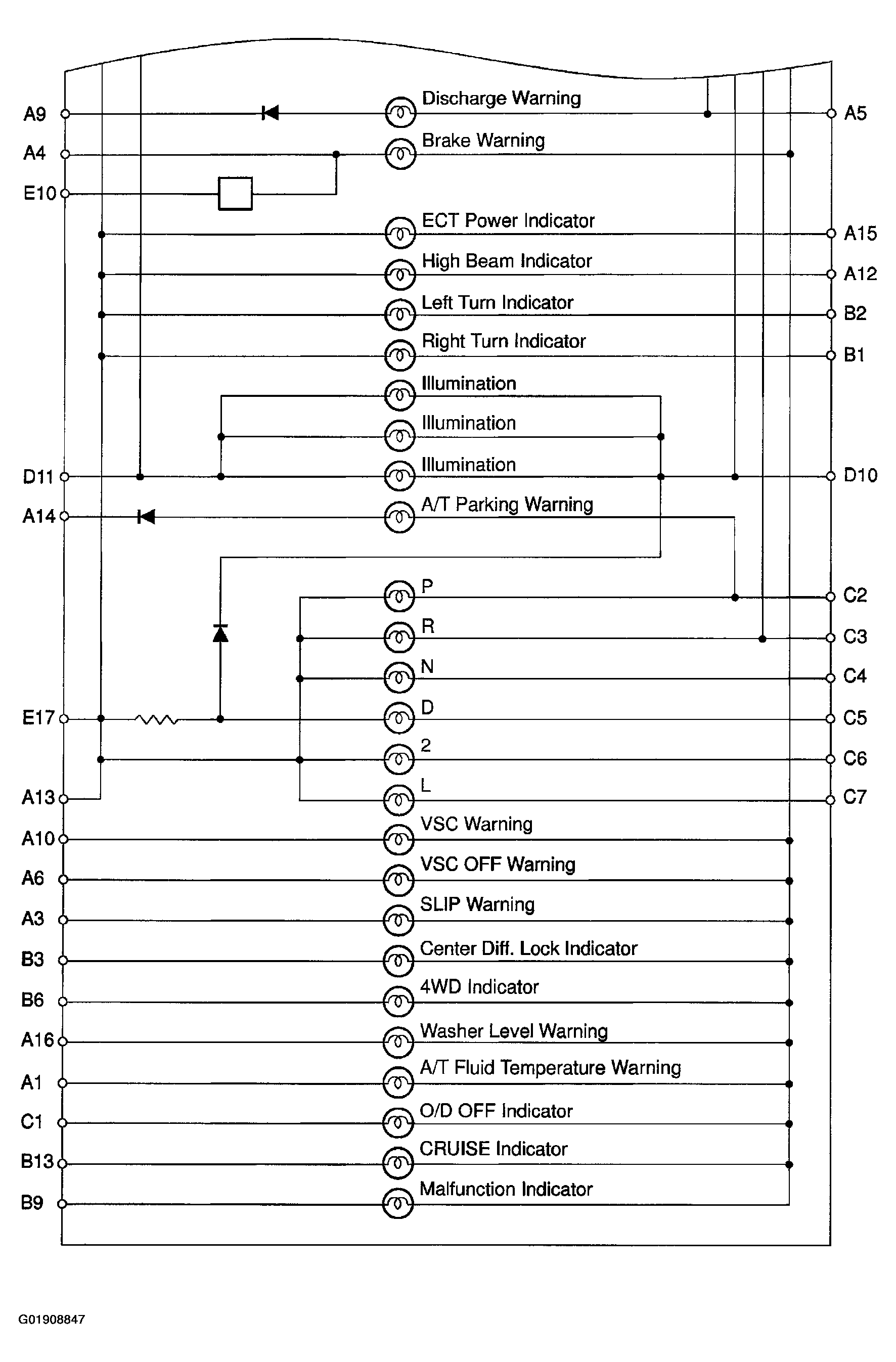

Fig 5: Combination Meter Circuit Schematic (2 Of 2)
G01908847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
