Problem No. 2

  1. 2 Clock loses or gains time  :
    1. Check that the battery positive voltage is 10-16 V.

      If the voltage is not as specified, replace the battery.

    2. Inspect the error of the clock.

      Allowable error (per day): +/- 1.5 sec.

      If the error exceeds the allowable error, replace the clock.

    3. Check that the clock adjusting button is sticking in position and has failed to return.

      If the button is not returned, repair or replace the clock.

      4. NOTE: Inspect the connector on the wire harness side.

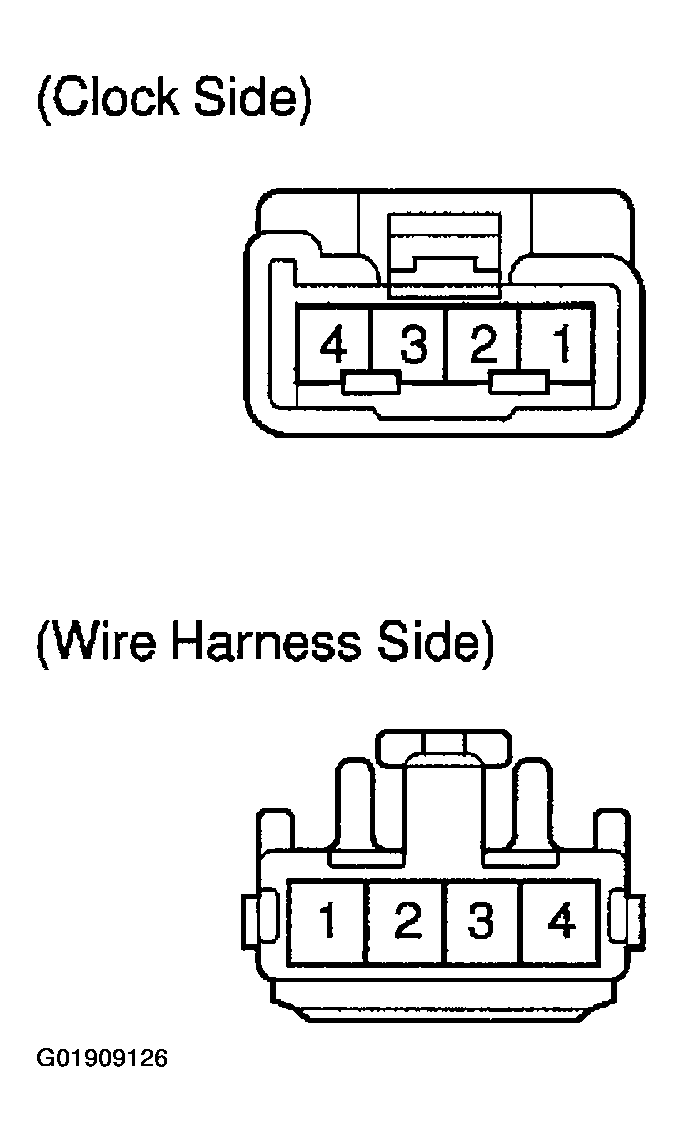

      Fig 1: Identifying Clock Side & Wire Harness Side Terminals
      G01909126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 2: Clock Troubleshooting Flow Chart (Clock Loses Or Gains Time)
      G01909127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Troubleshoot the clock as follows.
