Problem No. 1

  1. Clock will not operate  :
    1. Check that the battery positive voltage is 10 - 14 V.

      If the voltage is not as specified, replace the battery.

    2. Check that the DOME fuse is not blown.

      If the fuse is blown, replace the fuse and check for short.

      3. NOTE: Inspect the connector on the wire harness side.
      Fig 1: Identifying B+ & GND Terminals (Wire Harness Side)
      G01909124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

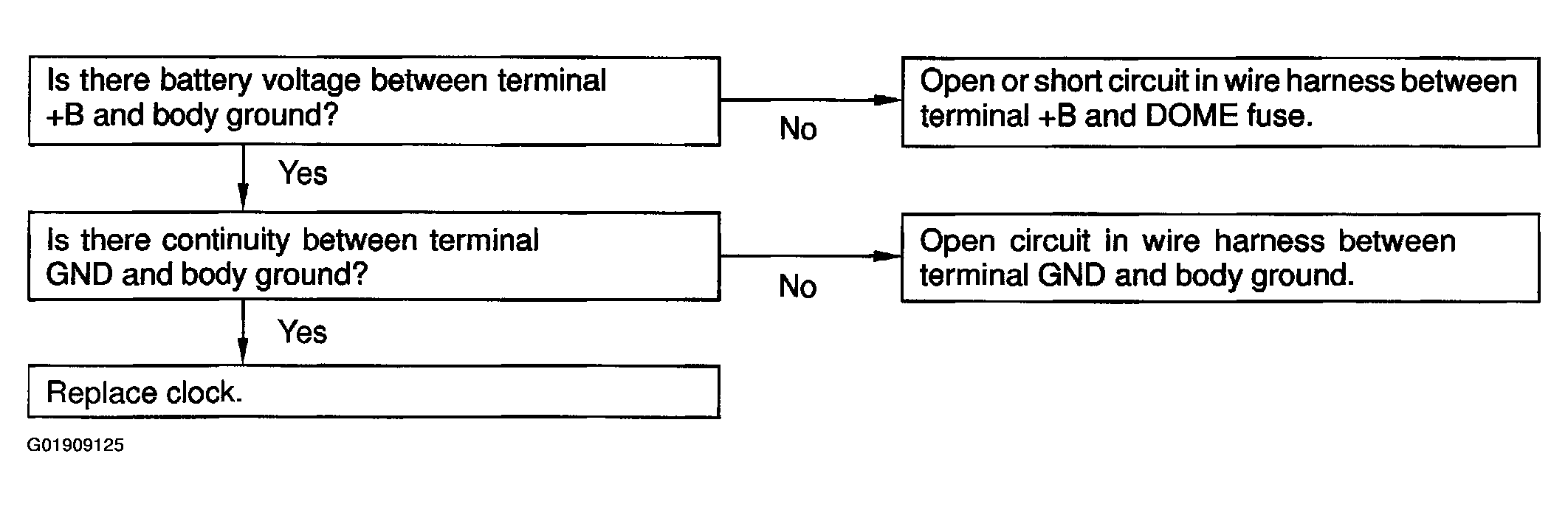

      Fig 2: Clock Troubleshooting Flow Chart (Clock Not Operating)
      G01909125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Troubleshoot the clock as follows.
