Inspect Hydraulic Brake Booster Pump Motor Operation

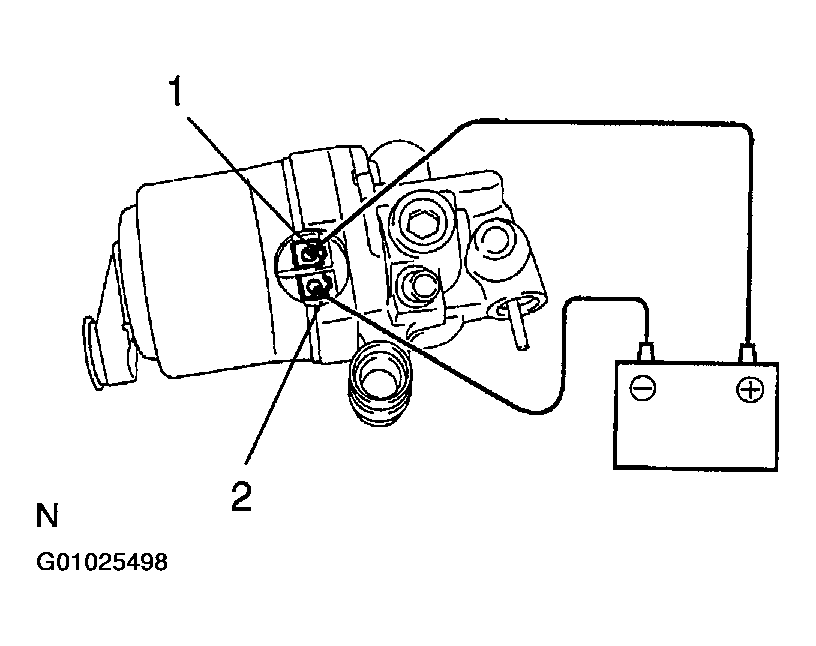

- Connect the positive (+) lead from the battery to terminal 1 of pump motor, and the negative (-) lead to terminal 2.
- Check that the pump motor operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
