Rear Drum Brake: Inspection

Inspect disassembled parts.
Inspect the disassembled parts for wear, rust or damage.
Measure brake drum inside diameter.

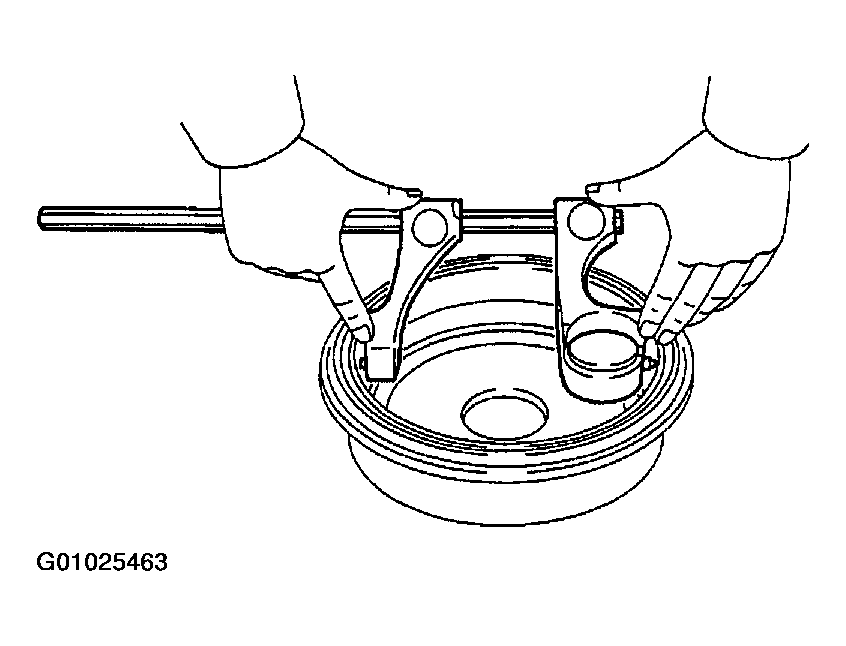

Fig 1: Measuring Brake Drum Inside Diameter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a brake drum gauge or equivalent, measure the inside diameter of the drum.
1. Standard inside diameter: 295.0 mm (11.614 in.)
2. Maximum inside diameter: 297.0 mm (11.693 in.)
If the drum is scored or worn, the brake drum may be lathed to the maximum inside diameter.
Measure brake shoe lining thickness.

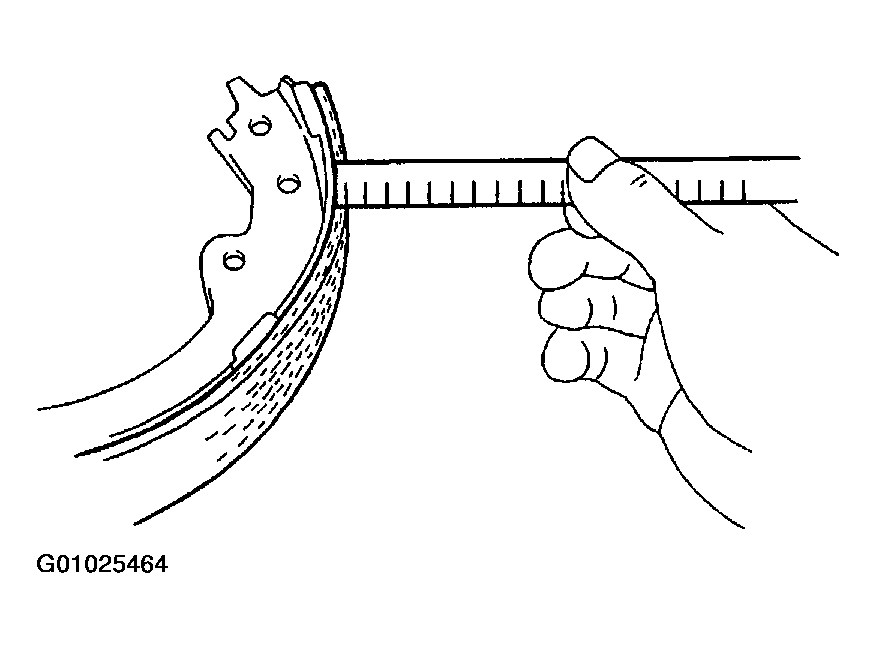

Fig 2: Measuring Brake Shoe Lining Thickness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a ruler, measure the shoe lining thickness.
1. Standard thickness: 6.0 mm (0.236 in.)
2. Minimum thickness: 1.0 mm (0.039 in.)
If the shoe lining is less than the minimum, or shows signs of uneven wear, replace the brake shoes.

NOTE:
If any of the brake shoes have to be replaced, replace all of the rear brake shoes in order to maintain even braking.
Inspect brake lining and drum for proper contact.

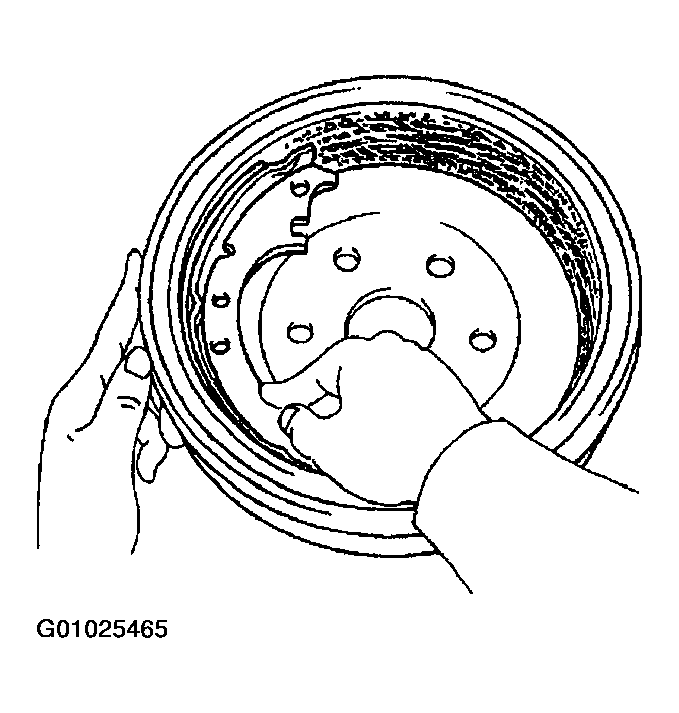

Fig 3: Inspecting Brake Lining & Drum
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the contact between the brake lining and drum is improper, repair the lining with a brake shoe grinder, or replace the brake shoe assembly.
