On-Vehicle Inspection

Check that parking brake lever travel is correct.
Pull the parking brake lever all the way up, and count the number of clicks.
1. Parking brake lever travel at 196 N (20 kgf, 44.1 lbf): 7-9 clicks .
If incorrect, adjust the parking brake.

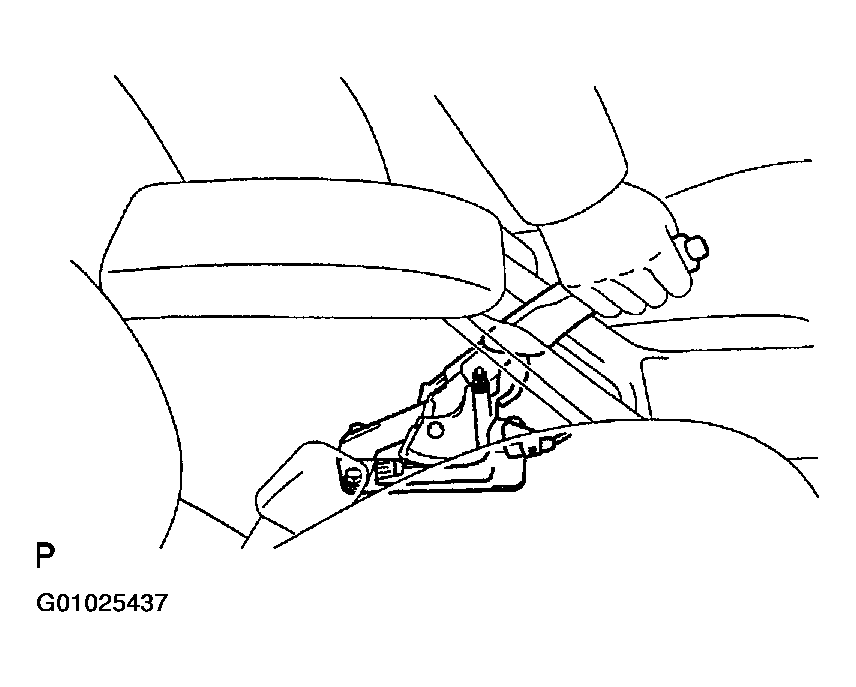

Fig 1: Checking Parking Brake Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If necessary, adjust parking brake lever travel.

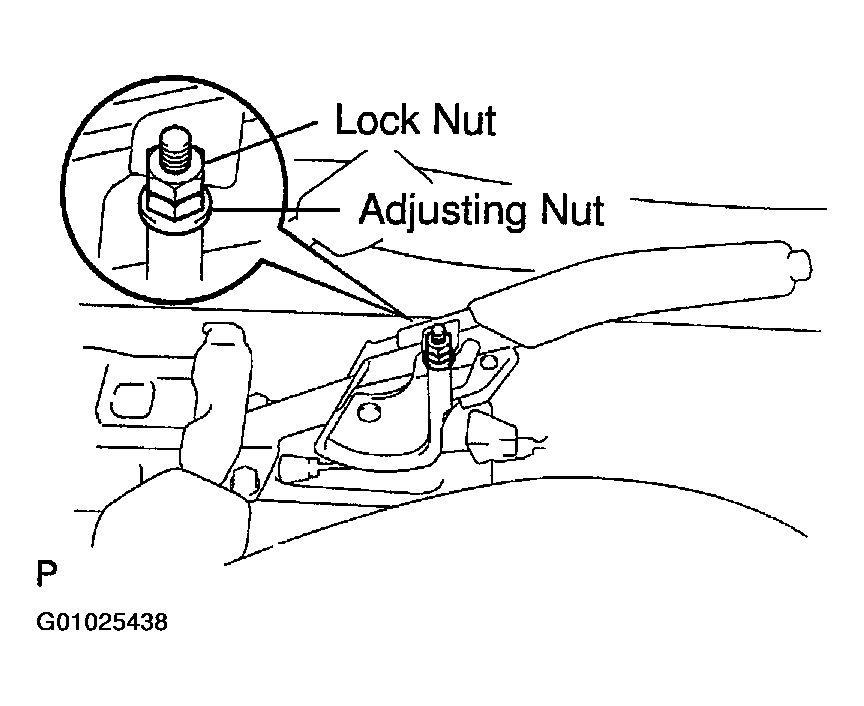

Fig 2: Locating Parking Brake Lever Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Before adjusting the parking brake lever travel, make sure that the rear brake shoe clearance has been adjusted. For shoe clearance adjustment, see INSTALLATION .
1. Remove the console box.
2. Loosen the lock nut and turn the adjusting nut until the lever travel is correct.
3. Tighten the lock nut.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
4. Install the console box.
