Install Accumulator Bracket

When installing the accumulator bracket, adjust to secure the clearance (A, B and C) shown in the illustration on the left.

Standard clearance:
1. A + B: 4.1 mm (0.161 in.) or less
2. C: 0.3-3.8 mm (0.012-0.150 in.)

NOTE:

Secure more than 0.3 mm (0.012 in.) clearance for A and B each.

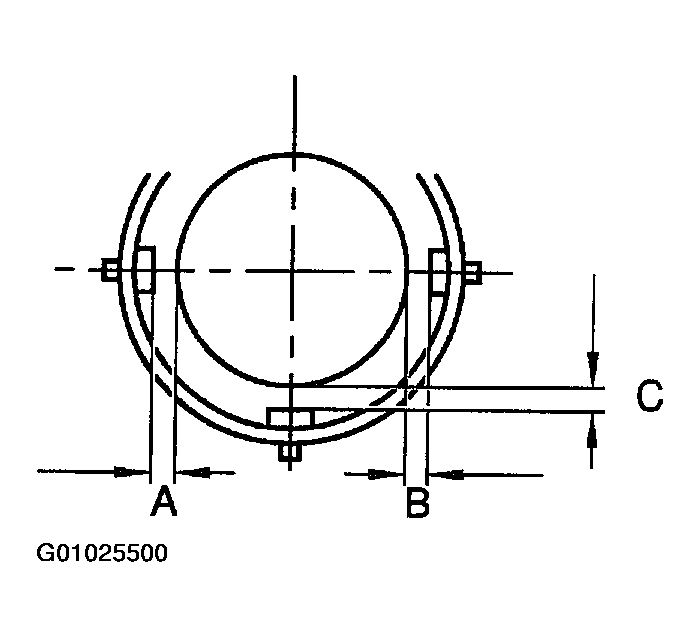

Fig 1: Adjusting A, B & C Clearance
