Disposal Method Of Accumulator

  1. Follow the procedures described below and drain the high pressure gas from the accumulator.
  2. Place the accumulator in a vise, cover it with a cloth over a saw then cut the accumulator body slowly.
    CAUTION: Never cut at a stretch.
  3. When the outer body of the accumulator is cut, gas discharges.

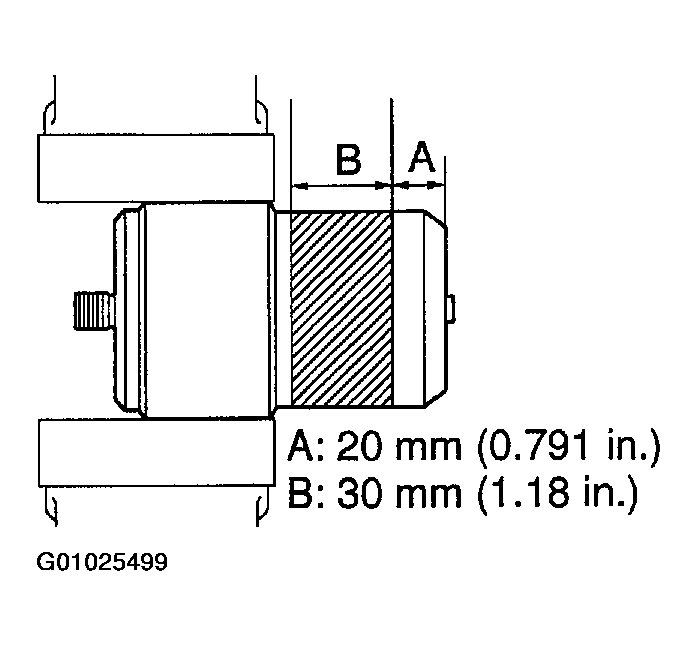

    Fig 1: Displaying Disposal Method Of Accumulator
    G01025499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
