Hydraulic Brake Booster: Components

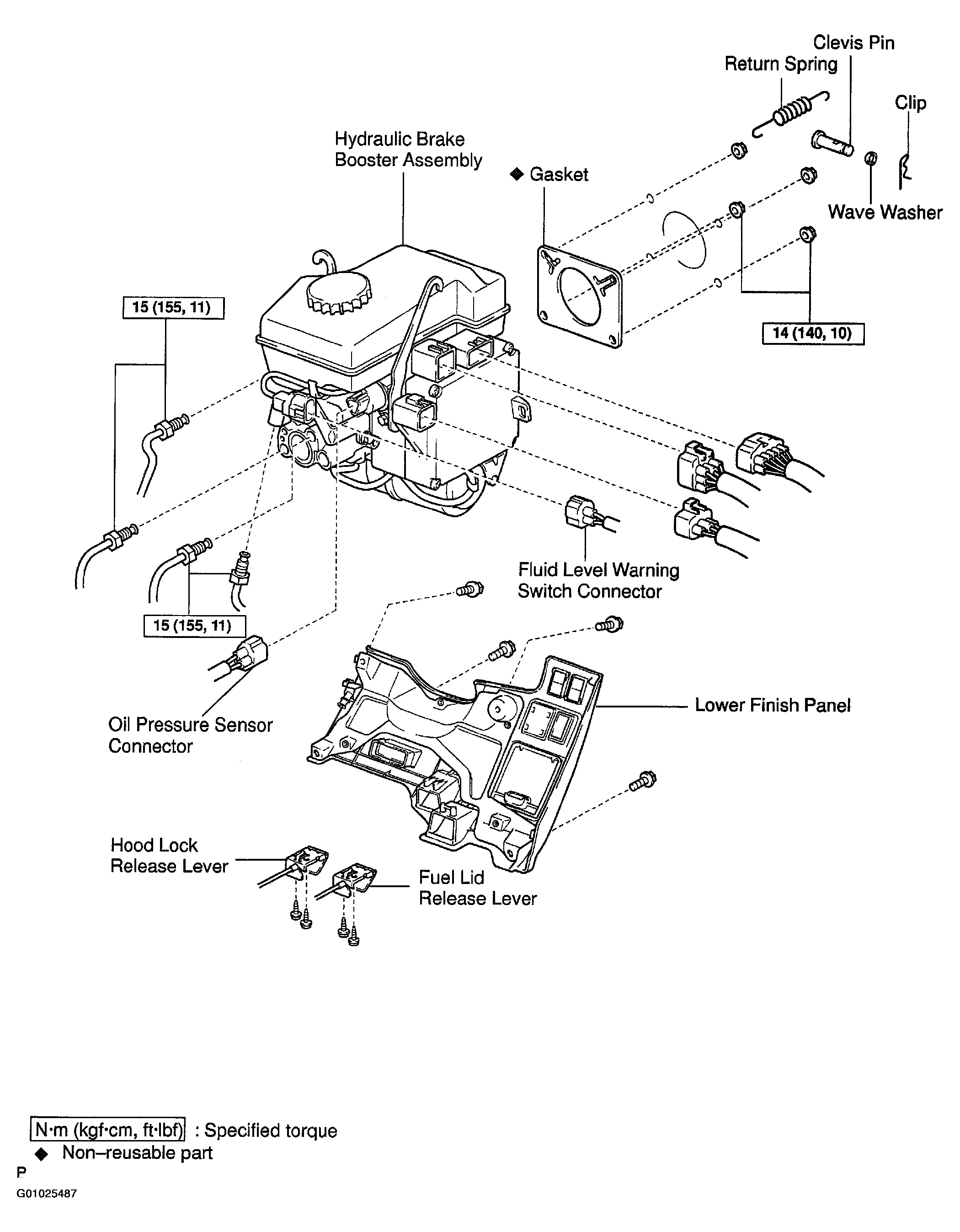

Fig 1: Hydraulic Brake Booster Components (1 Of 2)
G01025487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

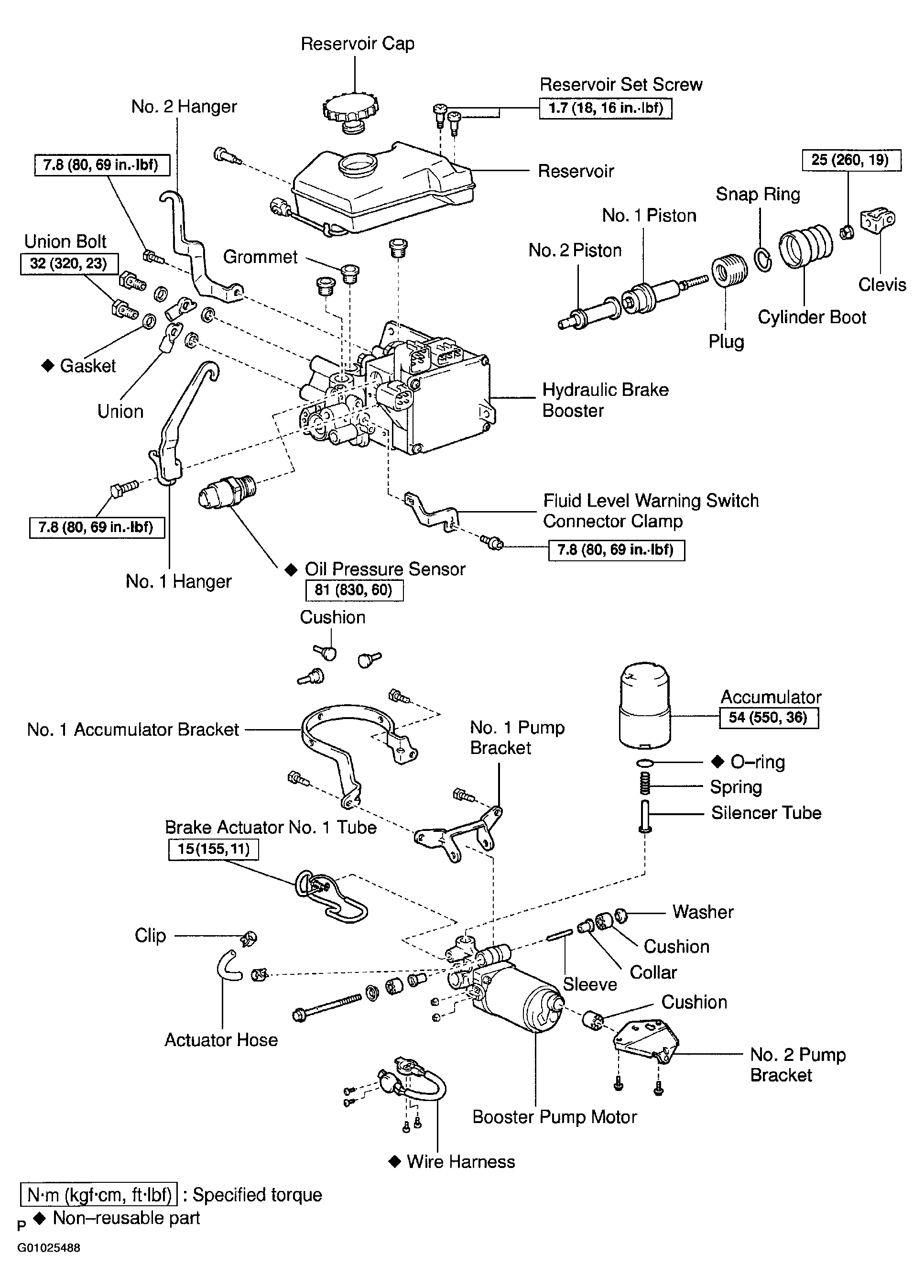

Fig 2: Hydraulic Brake Booster Components (2 Of 2)
G01025488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
