Front Brake Caliper: Removal

  1. Remove front wheel.

    Remove the front wheel and temporarily fasten the disc with hub nuts.

    1. Torque: 103 N.m (1050 kgf.cm, 76 ft.lbf)

  2. Disconnect brake line.

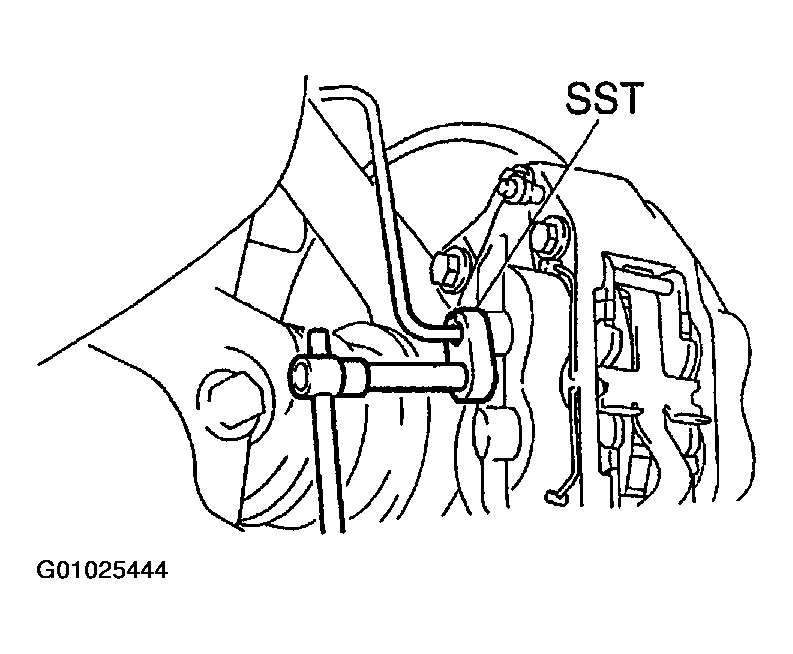

    Fig 1: Disconnecting Brake Line
    G01025444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Using SST, disconnect the brake line. Use a container to catch the brake fluid.

    1. SST 09023-00100
    2. Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

  3. Remove caliper.

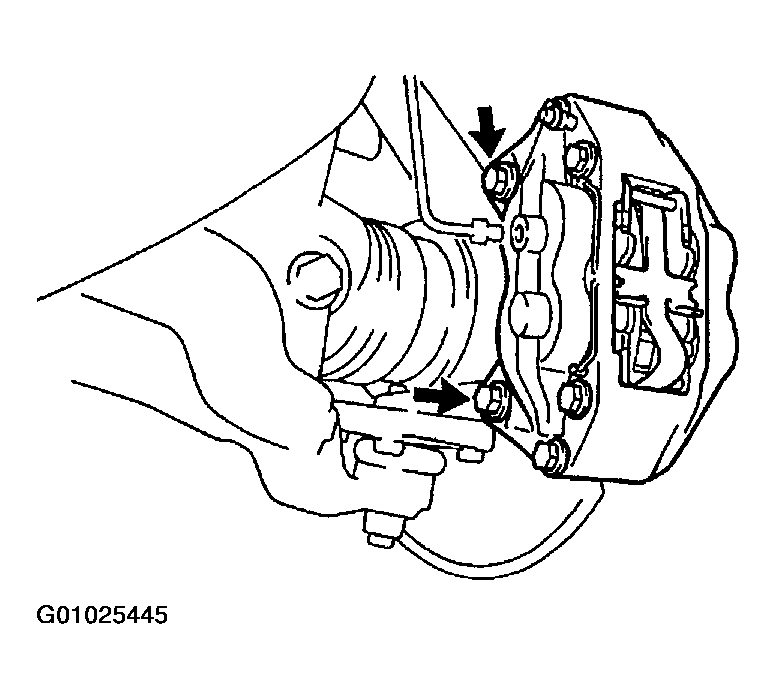

    Fig 2: Removing Mounting Bolts & Caliper
    G01025445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the 2 mounting bolts and caliper.

    1. Torque: 123 N.m (1250 kgf.cm, 90 ft.lbf)

  4. Remove clip, 2 pins, anti-rattle spring and 2 pads with 4 anti-squeal shims.
