Front Brake Caliper: Components

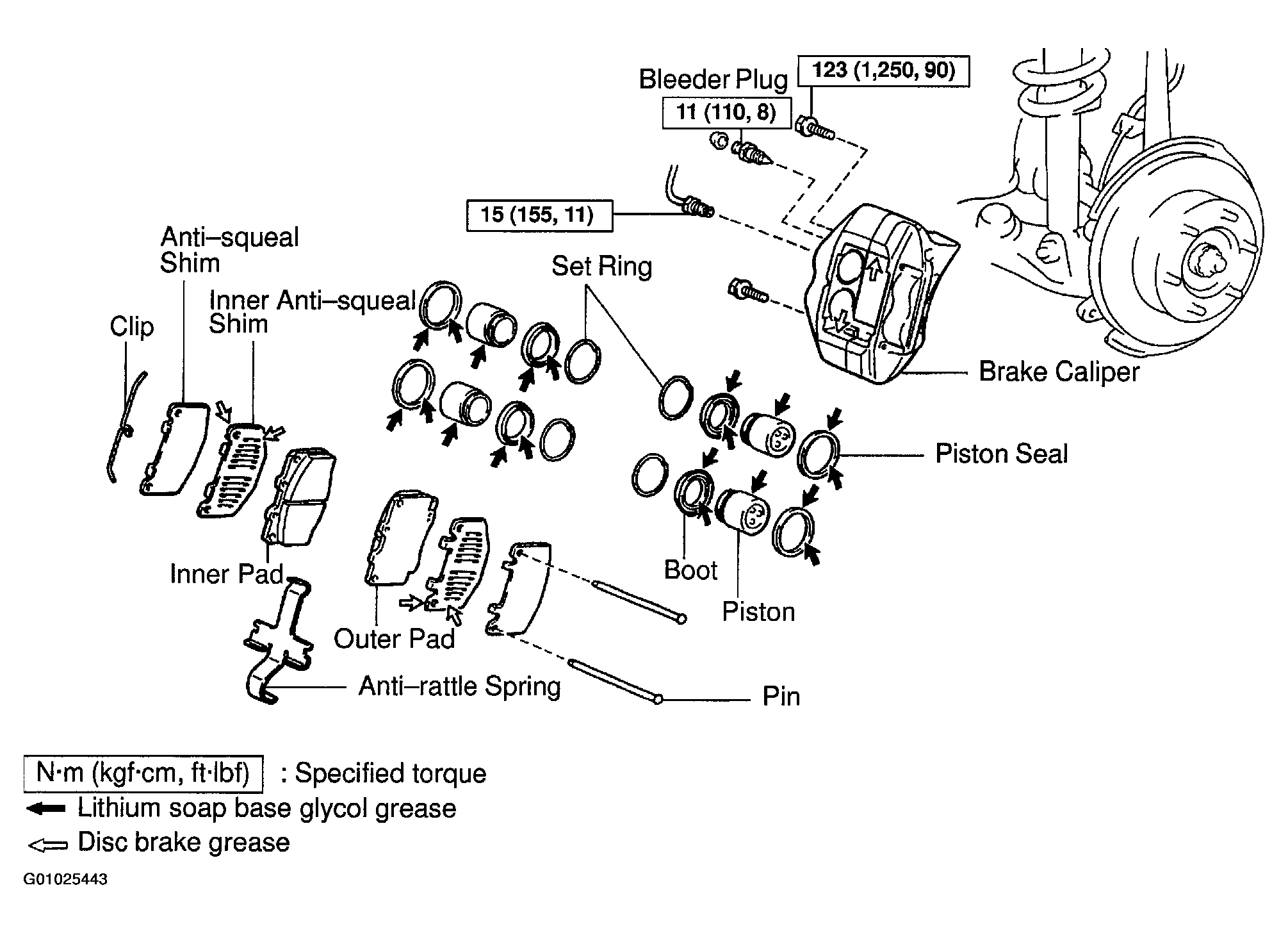

Fig 1: Displaying Front Brake Caliper Components

G01025443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
