Brake Fluid: Bleeding

NOTE:
  • If any work is done on the brake system or if air in the brake lines is suspected, bleed the air from the system.
  • When bleeding, keep the amount of the fluid within the line of reservoir between Min. and Max.
  • Do not let brake fluid remain on painted surfaces. Wash it off immediately.
  • With the reservoir cap removed, when depressing the brake pedal, the fluid will spray.
  1. Fill reservoir with brake fluid.

    Fluid: SAE J1703 or FMVSS NO. 116 DOT3.

  2. In case of using TOYOTA hand-held tester:

    Bleed hydraulic brake booster

    NOTE:

    If the hydraulic brake booster has been disassembled, disconnect the brake line from the hydraulic brake booster or if the reservoir becomes empty, bleed the hydraulic brake booster.

    1. Turn the ignition switch OFF, depress the brake pedal more than 40 times.
      NOTE:

      When a pressure in power supply system is released, reaction force becomes heavy and stroke becomes shorter.

    2. Turn the ignition switch ON, check that the pump stops after about 30-40 sec.
      NOTE: When the pump does not stop, repeat step (a) and (b) again.
    3. With the ignition switch remained ON, depress the brake pedal more than 20 times.
    4. Observe the procedure in step 4 and bleed the right and left front brake caliper.
    5. Holding the brake pedal depressed, bleed the right and left rear brake caliper.
      NOTE:

      It is not necessary to depress the pedal continuously, as brake fluid flows out by first depressing.

    6. Connect the TOYOTA hand-held tester.

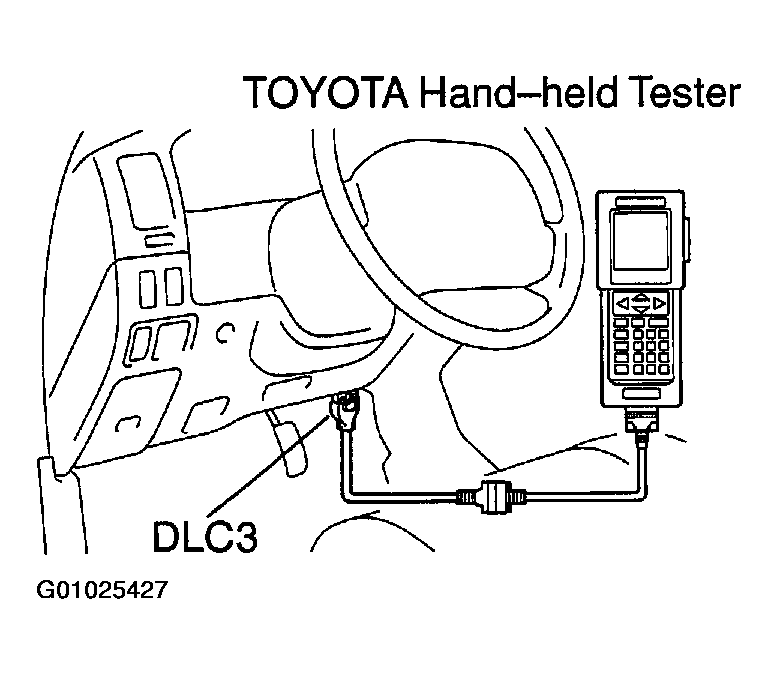

        Fig 1: Displaying TOYOTA Hand-Held Tester
        G01025427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the ignition switch OFF, connect the TOYOTA hand-held tester to DLC3.
      2. Turn the ignition switch ON and select "AIR BLEEDING" on the TOYOTA hand-held tester.
      NOTE:

      Please refer to the TOYOTA hand-held tester operator's manual for further details

    7. Bleed right front brake line.
      1. Select "FR LINE" on the TOYOTA hand-held tester.
      2. With "FR LINE" turned ON with the TOYOTA hand-held tester, depress the brake pedal and hold it to bleed the right front brake caliper.
      3. Repeat step (2) until there are no more air bubbles in the fluid.
    8. Bleed left front brake line.
      1. Select "FL LINE" on the TOYOTA hand-held tester.
      2. With "FL LINE" turned ON with the TOYOTA hand-held tester, depress the brake pedal and hold it to bleed the left front brake caliper.
      3. Repeat step (2) until there are no more air bubbles in the fluid.
    9. Bleed rear brake line.
      1. Select "RR LINE" on the TOYOTA hand-held tester.
      2. With "RR LINE" turned ON with the TOYOTA hand-held tester, bleed the left and right rear brake caliper.
    10. Disconnect the TOYOTA hand-held tester from DLC3.
    11. Clear the DTC (See CLEARING CODES .
  3. In case of using ABS actuator checker (SST):

    Bleed hydraulic brake booster.

    NOTE:

    If the hydraulic brake booster has been disassembled, disconnect the brake line from the hydraulic brake booster or if the reservoir becomes empty, bleed the hydraulic brake booster.

    1. Disconnect the 2 connectors from the hydraulic brake booster.

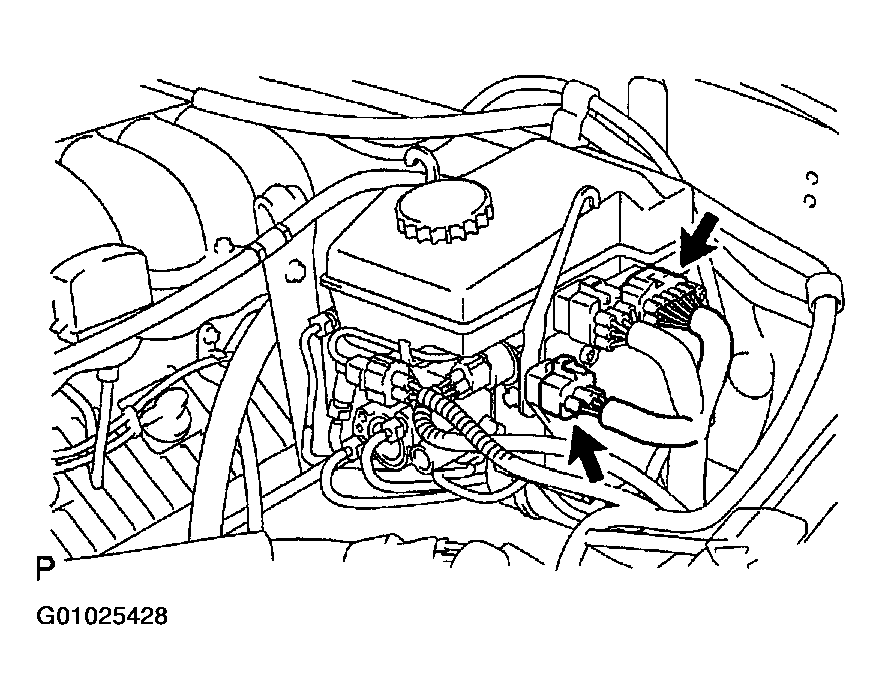

      Fig 2: Locating Connectors From Hydraulic Brake Booster
      G01025428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the ABS actuator checker (SST) to the hydraulic brake booster side wire harness via the sub-wire harness (SST), as shown in the chart below.

      SST 09990-00150, 09990-00480

      NOTE:

      Connect the connector with the label of "AIR BLEED" attached to the connector of ABS actuator checker.

    3. Connect the red cable of the checker to the battery positive (+) terminal and the black cable to the negative (-) terminal.

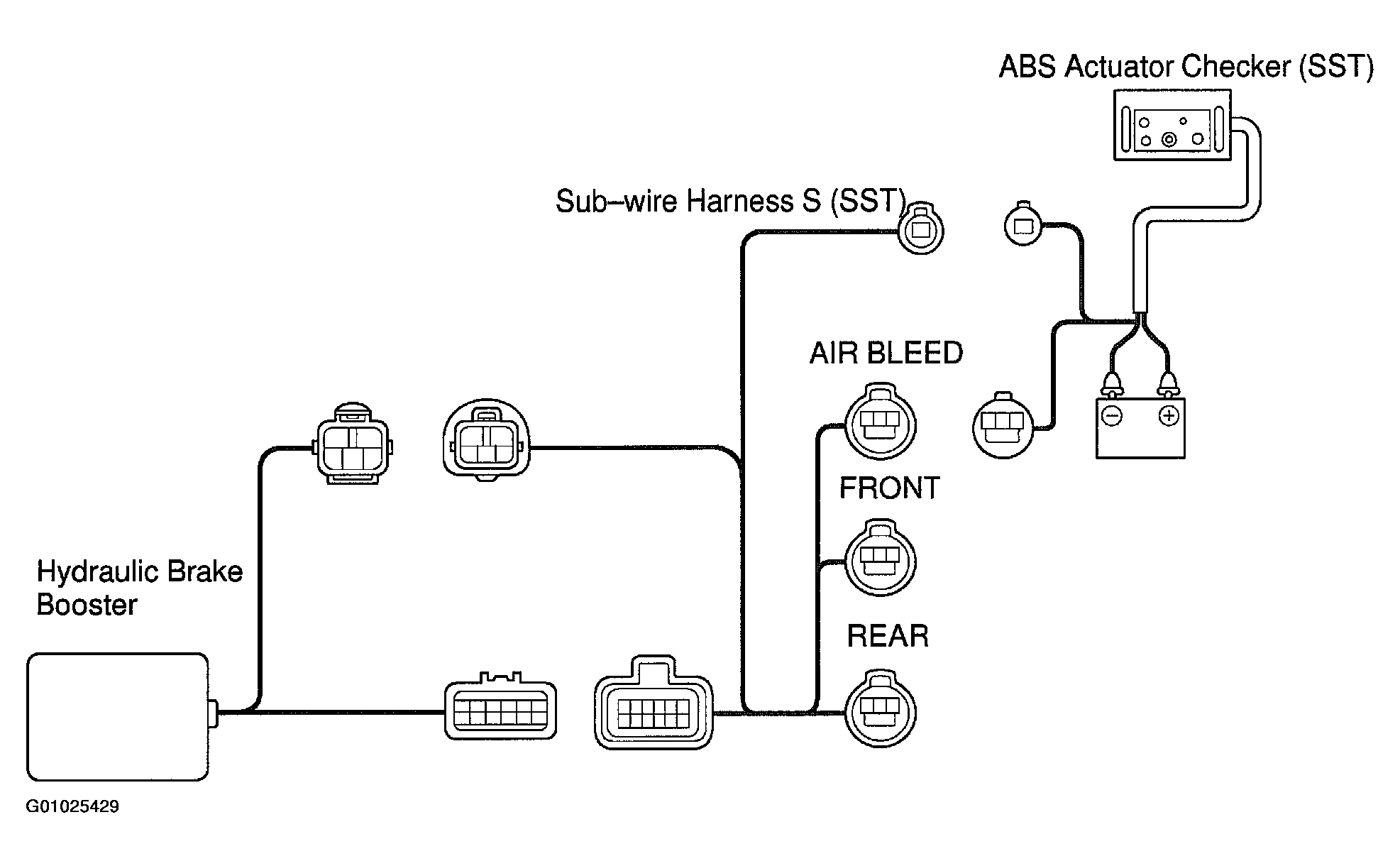

      Fig 3: Connecting ABS Actuator Checker
      G01025429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the ignition switch OFF, depress the brake pedal more than 40 times.
      NOTE:

      When a pressure in power supply system is released, reaction force becomes heavy and stroke becomes shorter.

    5. Turn the ignition switch ON, check that the pump stops after 30-40 sec.
      NOTE: When the pump does not stop, repeat step (d) and (e) again.
    6. With the ignition switch remained ON, depress the brake pedal more than 20 times.
    7. Observe the procedure in step 4 and bleed the right and left front brake caliper.
    8. Holding the brake pedal depressed, bleed the right and left rear brake caliper.
      NOTE:

      It is not necessary to depress the pedal continuously, as brake fluid flows out by first depressing.

    9. Bleed right front brake line.
      1. Turn the selector switch of the ABS actuator checker to the "FRONT RH" position.
      2. Push and hold in MAIN push switch, depress the brake pedal and hold it to bleed the right front brake caliper.
        NOTE: Do not keep the MAIN switch pushed in for more than 10 sec. When operating it continuously, set the interval of more than 20 sec.
      3. Repeat step (2) until there are no more air bubbles in the fluid.

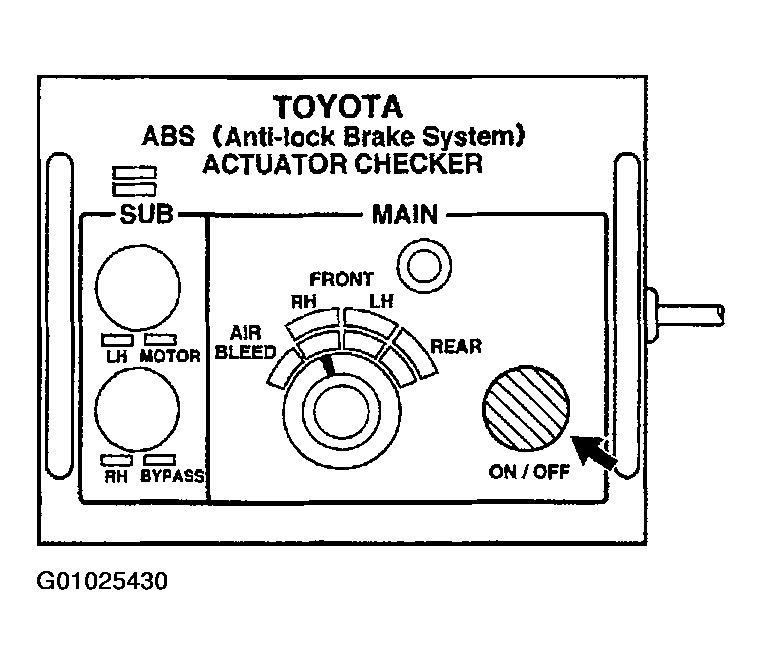

        Fig 4: Setting Selector Switch To FRONT RH Position
        G01025430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Bleed left front brake line.
      1. Turn the selector switch of the ABS actuator checker to the "FRONT LH" position.
      2. Push and hold in the MAIN push switch, depress the brake pedal and hold it to bleed the left front brake caliper.
        NOTE: Do not keep the MAIN switch pushed in for more than 10 sec. When operating it continuously, set the interval of more than 20 sec.
      3. Repeat step (2) until there are no more air bubbles in the fluid.

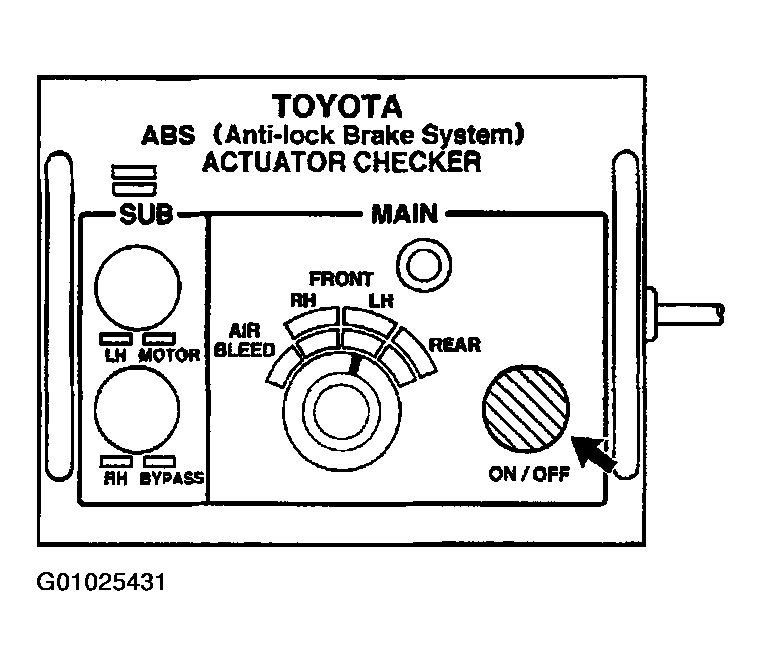

        Fig 5: Setting Selector Switch To FRONT LH Position
        G01025431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Bleed right rear brake line.
      1. Push and hold in the "SUB LH" and "SUB RH" switches, bleed the right rear brake caliper.
        NOTE: Do not keep the MAIN switch pushed in for more than 10 sec. When operating it continuously, set the interval of more than 20 sec.
      2. Repeat step (1) until there are no more air bubbles in the fluid.

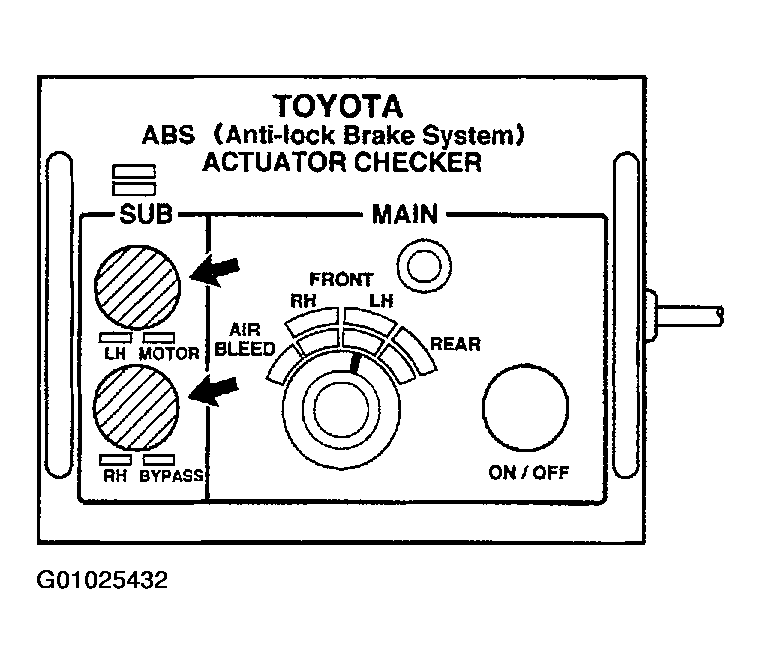

        Fig 6: Identifying SUB LH & SUB RH Switches
        G01025432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Observe the procedure in step (k) and bleed left rear brake line.
    13. Disconnect the ABS actuator checker (SST) and sub-wire harness (SST) from the actuator.

      SST 09990-00150, 09990-00480

    14. Connect the 2 connectors to the hydraulic brake booster.
    15. Clear the DTC (See CLEARING CODES .
  4. Bleed brake line.
    1. Connect the vinyl tube to the brake caliper.
    2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal held down.
    3. At the point when fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
    4. Repeat (b) and (c) until all the air in the fluid has been bled out.
    5. Repeat the above procedure to bleed the brake line for each wheel.
      1. Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
    Fig 7: Bleeding Brake Line
    G01025433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Check fluid level in reservoir.
    1. With the ignition switch OFF, depress the brake pedal more than 40 times.
      NOTE:

      When a pressure in power supply system is released, reaction force becomes heavy and stroke becomes shorter.

    2. Remove the reservoir cap. Add brake fluid up to the "MAX" line.

      Fluid: SAE J1703 or FMVSS NO. 116 DOT3
