Rear Brake Shoes: Inspection

WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For inspection procedure, see Fig 1.

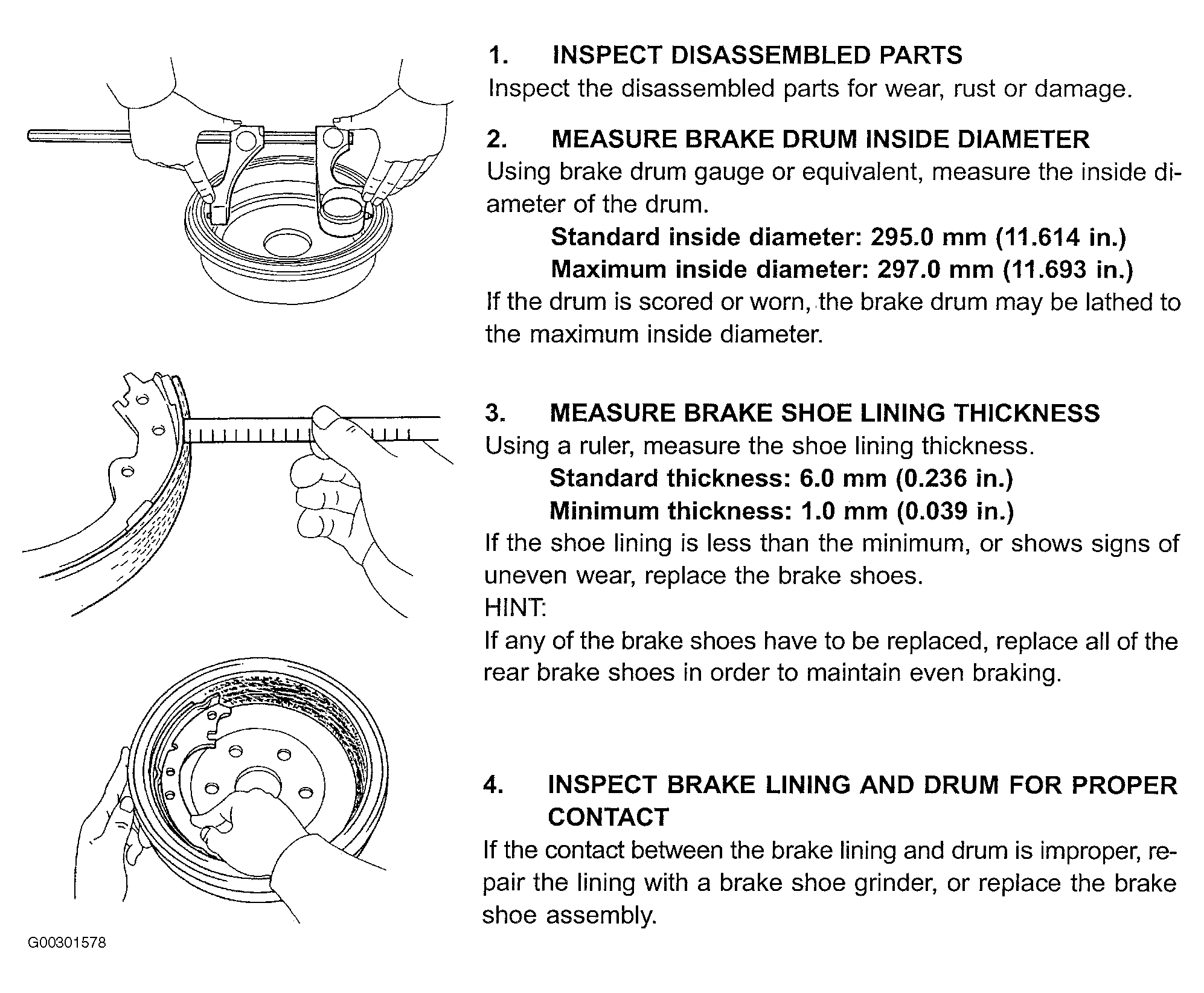

Fig 1: Rear Drum Brake Component Inspection Procedure
G00301578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
