Removal & Installation (Highlander)
- Disable air bag system, remove driver's air bag and steering wheel. See
AIR BAG RESTRAINT SYSTEMS article. Remove steering column covers. Remove hood release and fuel door levers. Remove screws from instrument panel lower finish panel and remove panel.

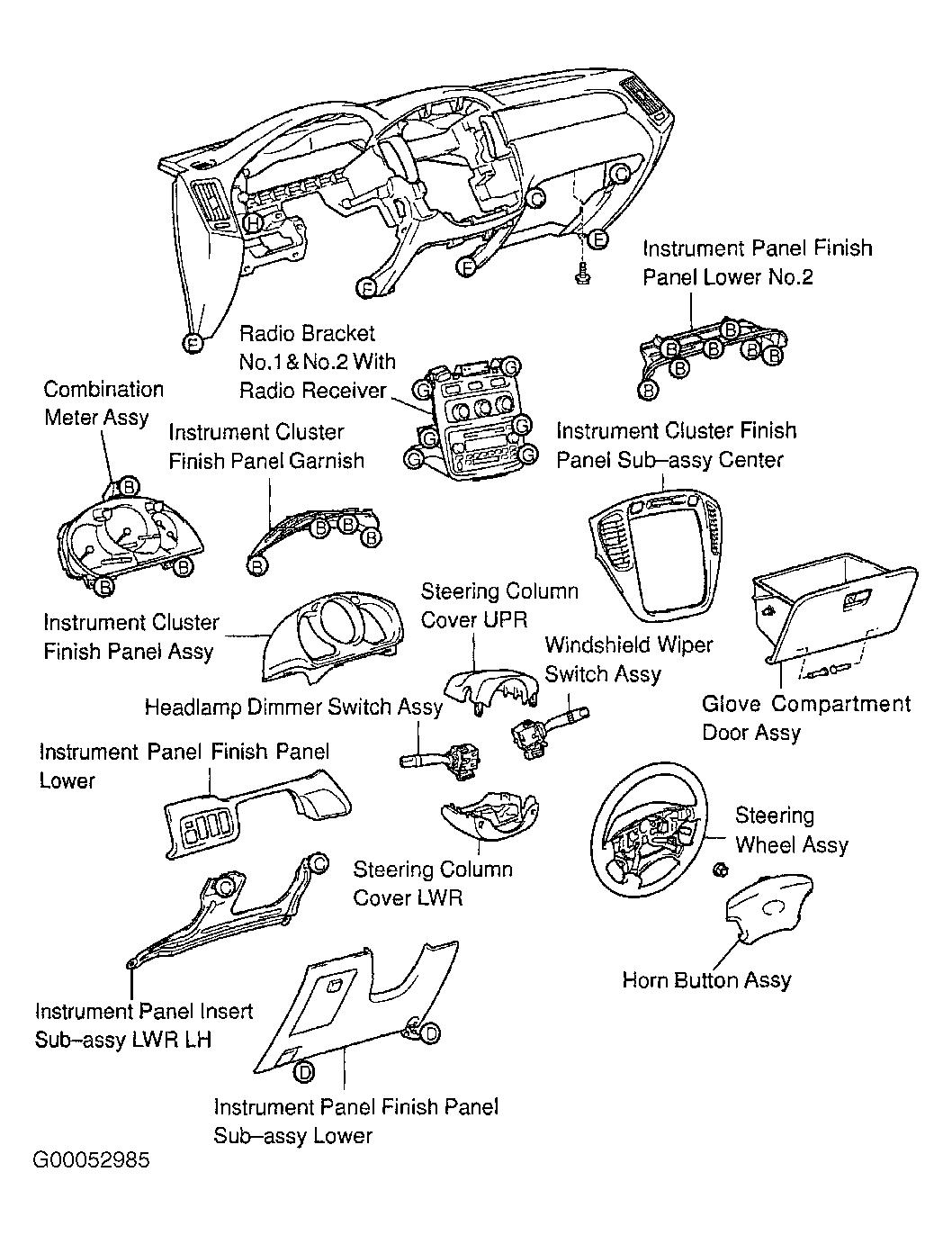

- Release 5 clips from instrument cluster lower finish panel. Remove 4 screws from instrument cluster finish panel garnish and remove. Remove 3 retaining screws from instrument cluster. Pull cluster outward enough to disconnect 2 harness connectors. Remove instrument cluster. See Fig 1. To install, reverse removal procedure.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
