Component Tests: Voltmeter: Sequoia

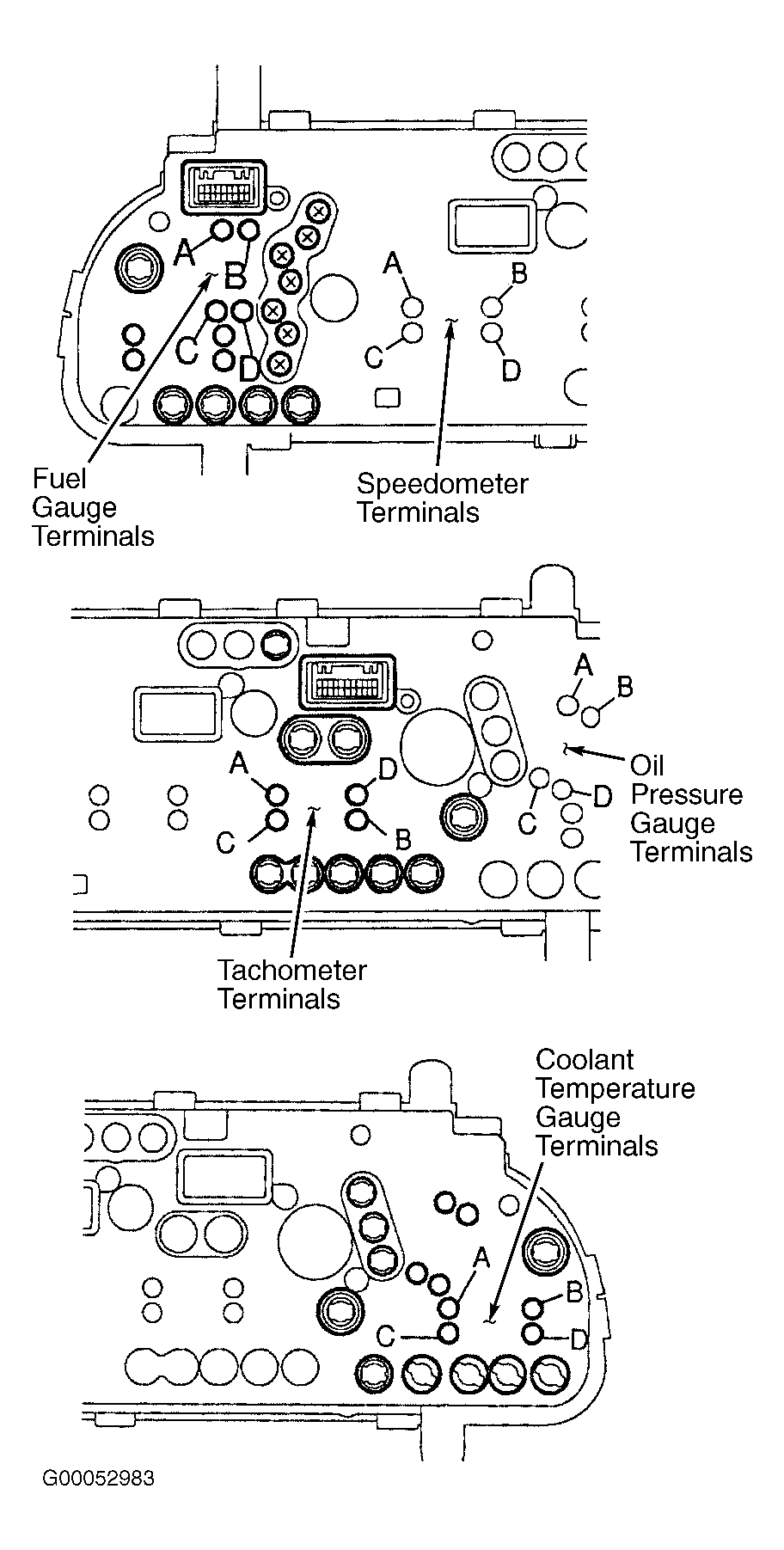

Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Using an ohmmeter, measure resistance between tachometer terminals "A" and "D" on rear of instrument cluster. Also measure resistance between tachometer terminals "B" and "C". See Figure. Resistance should be about 250 ohms. If resistance is not as specified, replace tachometer.
