Rear Wheel Cylinders

WARNING: This page is about a different car, the 2003 Toyota RAV4 and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For overhaul of rear wheel cylinders, see Figure and Fig 1 . Install wheel cylinder components in reverse of removal procedure. Fill and bleed system. See BLEEDING BRAKE SYSTEM .

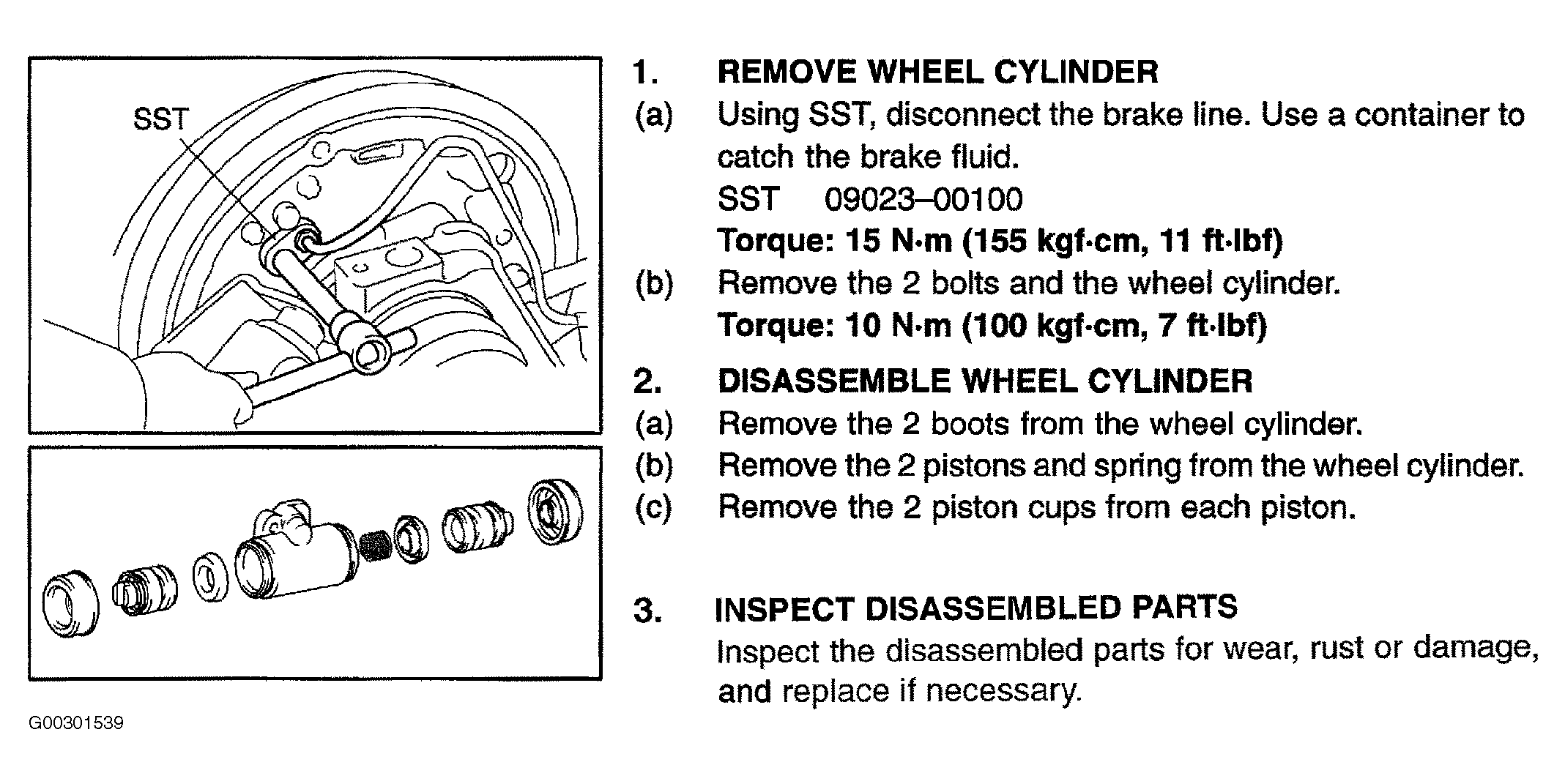

Fig 1: Rear Wheel Cylinder Overhaul Procedure
