Power Brake Unit Push Rod

WARNING: This page is about a different car, the 2003 Toyota RAV4 and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

For procedure, see Fig 1.

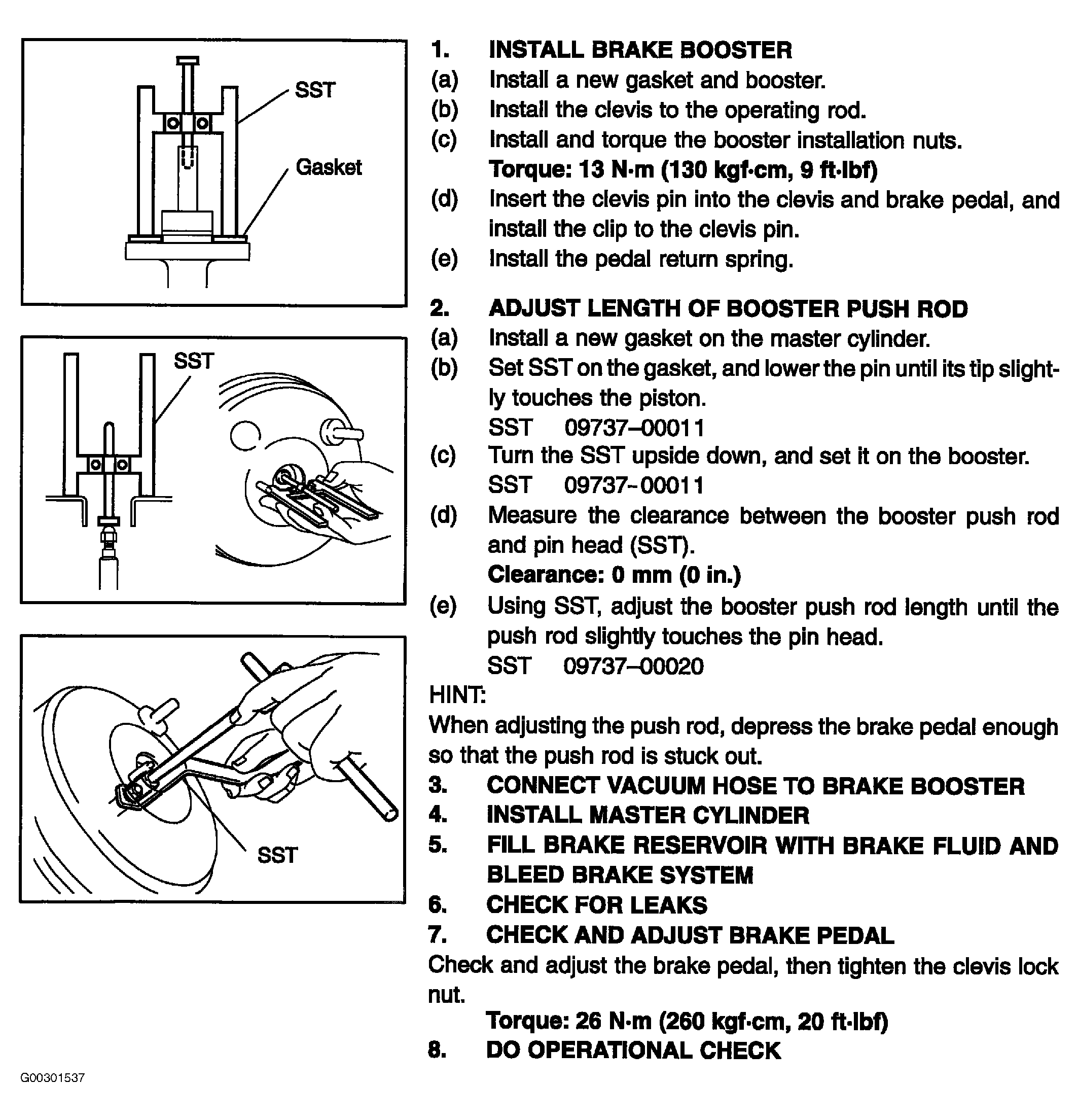

Fig 1: Adjusting Brake Booster Push Rod
G00301537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
