Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect CKP sensor harness connector. Measure resistance between CKP sensor terminals (component side). See Figure. Resistance should be 1630-2740 ohms (cold sensor) or 2065-3225 ohms (hot sensor). If resistance is not as specified, replace CKP sensor. If resistance is as specified, go to next step.

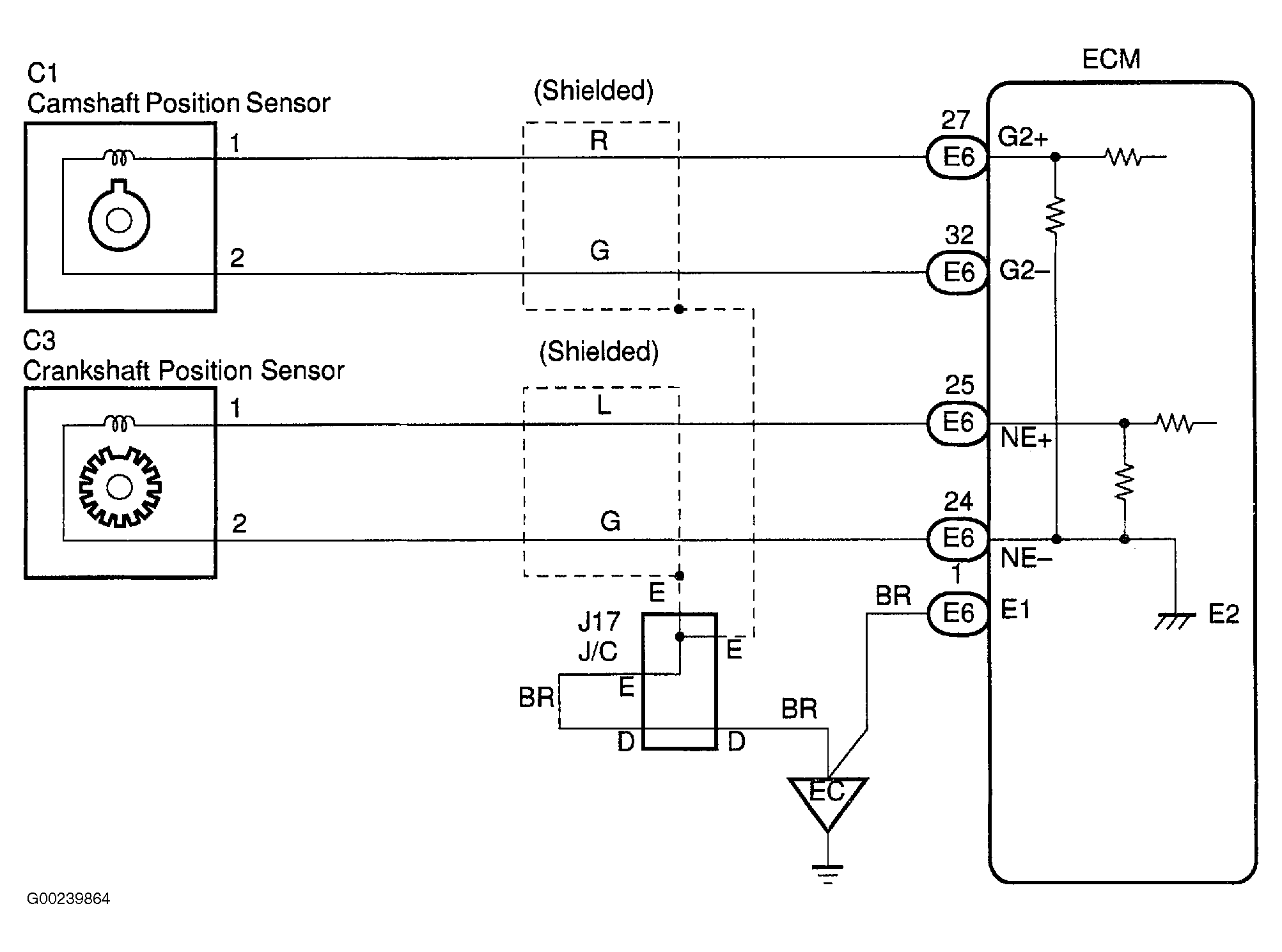

  2. Check for open or short in wiring between ECM and CKP sensor. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. If problem exists, repair wiring as necessary. If problem does not exist, remove and inspect CKP sensor. Also inspect signal plate. Replace CKP sensor and/or signal plate as necessary. If both components are okay, replace ECM.
