Test Drive Confirmation

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If conditions in test drive confirmation procedure are not strictly followed, detection of malfunction will not be possible.
  1. If using OBD-II scan tool, go to step  3. If using Lexus scan tool, connect scan tool to Data Link Connector (DLC) No. 3. See Figure. Switch scan tool to CHECK mode and go to next step.
  2. Start and let engine idle for 120 seconds or more. Drive vehicle at 25 MPH for 20 seconds or more. Let engine idle for 20 seconds or more. Repeat driving and idle part of test 3 times. If malfunction exists, MIL will illuminate.
  3. Start and warm engine to normal operating temperature. Start and let engine idle for 120 seconds or more. Drive vehicle at 25 MPH for 20 seconds or more. Let engine idle for 20 seconds or more. Repeat driving and idle part of test 3 times, turning engine off between each drive cycle. If malfunction exists, MIL will illuminate. See Fig 1.

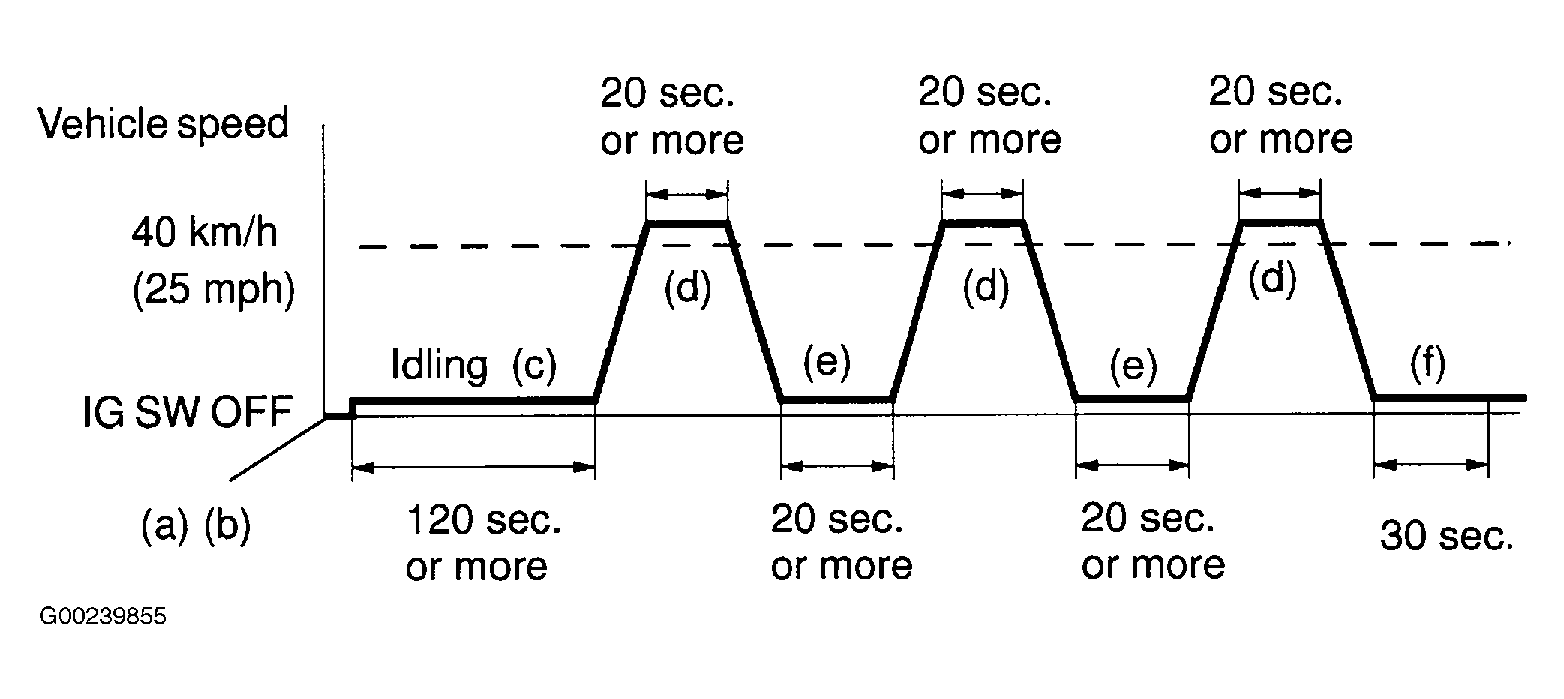

    Fig 1: Test Drive Confirmation
    G00239855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
