Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

The ECM provides a pulse width modulated control circuit to adjust current through the heater. The A/F ratio sensor heater circuit uses a relay on the B+ side of the circuit. See Fig 1. To obtain a high purification rate for the CO, HC and NOx components of the exhaust gas, a 3-way catalytic converter is used, but for the most efficient use of the 3-way catalytic converter, the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric air-fuel ratio. The oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity of the gas and provides feedback to the computer for control of the air-fuel ratio. When the air-fuel ratio becomes LEAN, the oxygen concentration in the exhaust increases and the oxygen sensor informs the ECM of the LEAN condition. When the air-fuel ratio is RICHER than the stoichiometric air-fuel ratio, the oxygen concentration in the exhaust gas is reduced and the oxygen sensor informs the ECM of the RICH condition. The ECM judges by the electromotive force from the oxygen sensor whether the air-fuel ratio is RICH or LEAN and controls the injection time accordingly. However, if malfunction of the oxygen sensor causes output of abnormal electromotive force, the ECM is unable to perform accurate air-fuel ratio control. The heated oxygen sensors include a heater which heats the zirconia element. The heater is controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low) current flows to the heater to heat the sensor for accurate oxygen concentration detection. See Fig 2 and Fig 3 . Possible causes are:

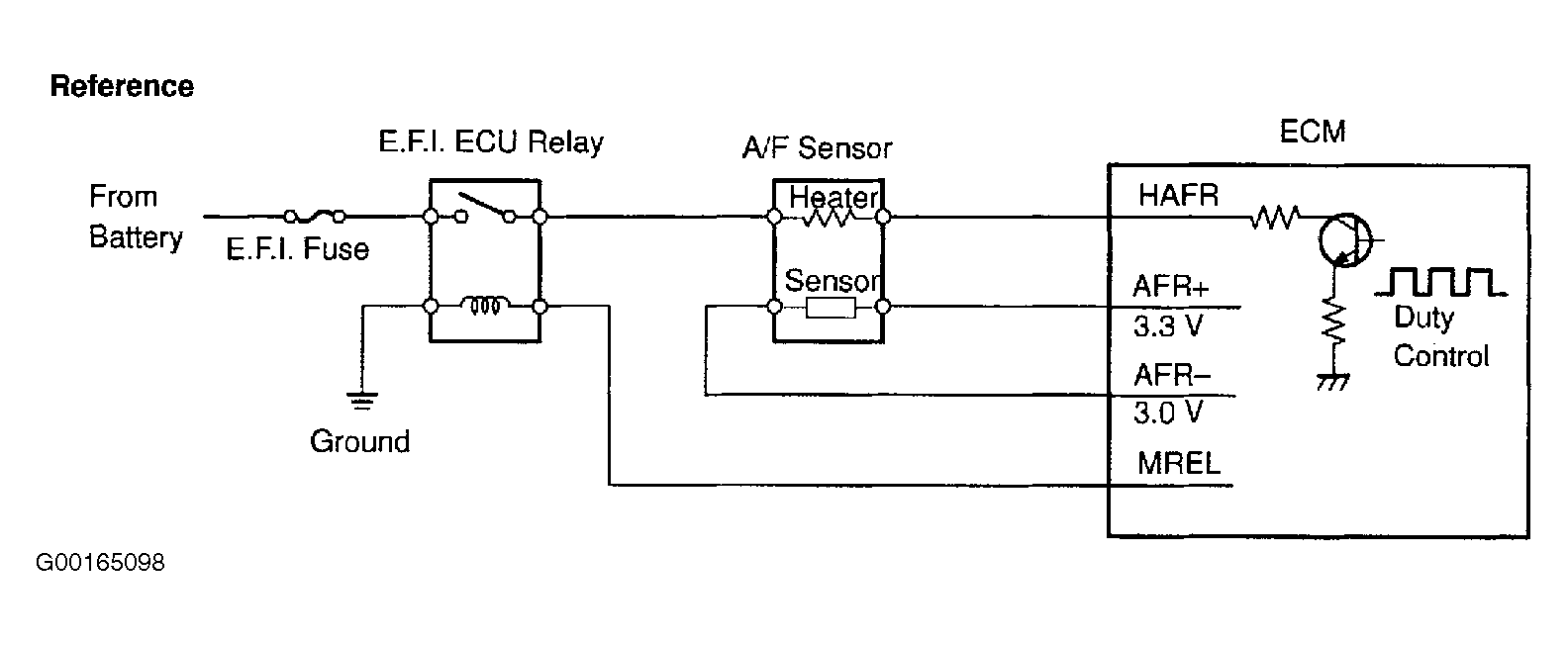

Fig 1: Identifying ECM Pulse Width Circuit
G00165098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

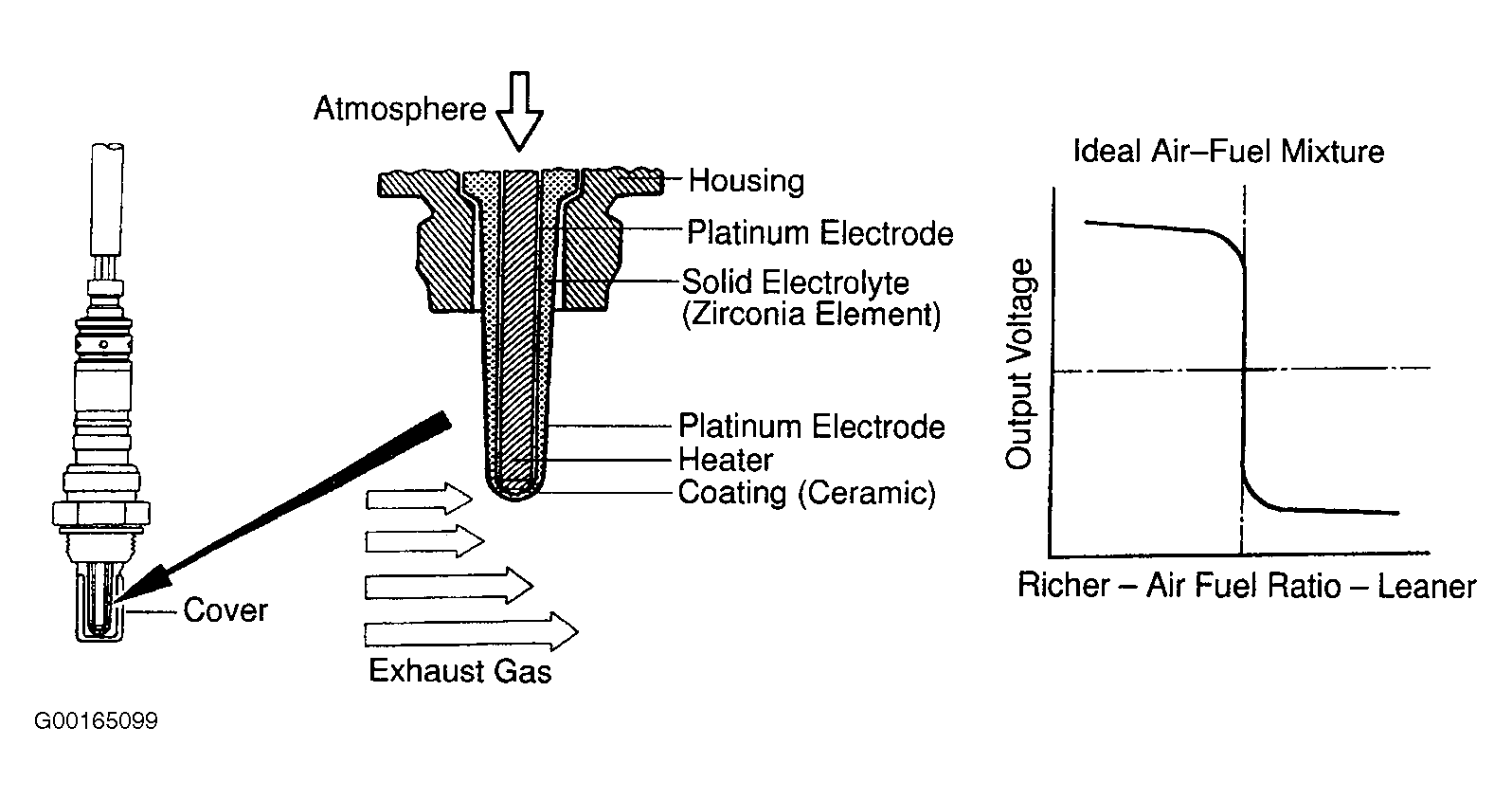

Fig 2: Identifying Oxygen Sensor Construction
G00165099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

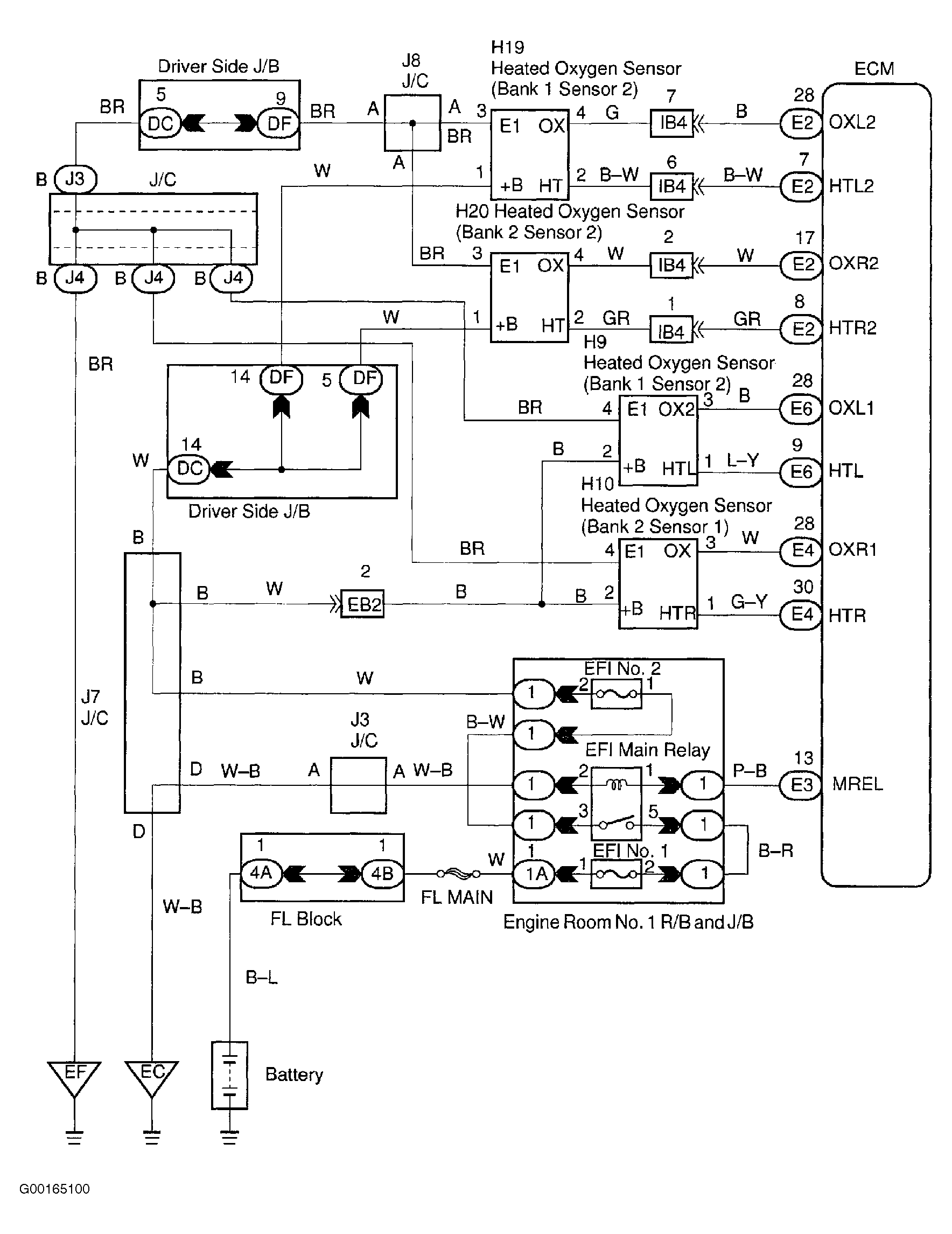

Fig 3: Identifying Oxygen Sensor Circuits
G00165100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
