Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1 and Fig 2 .

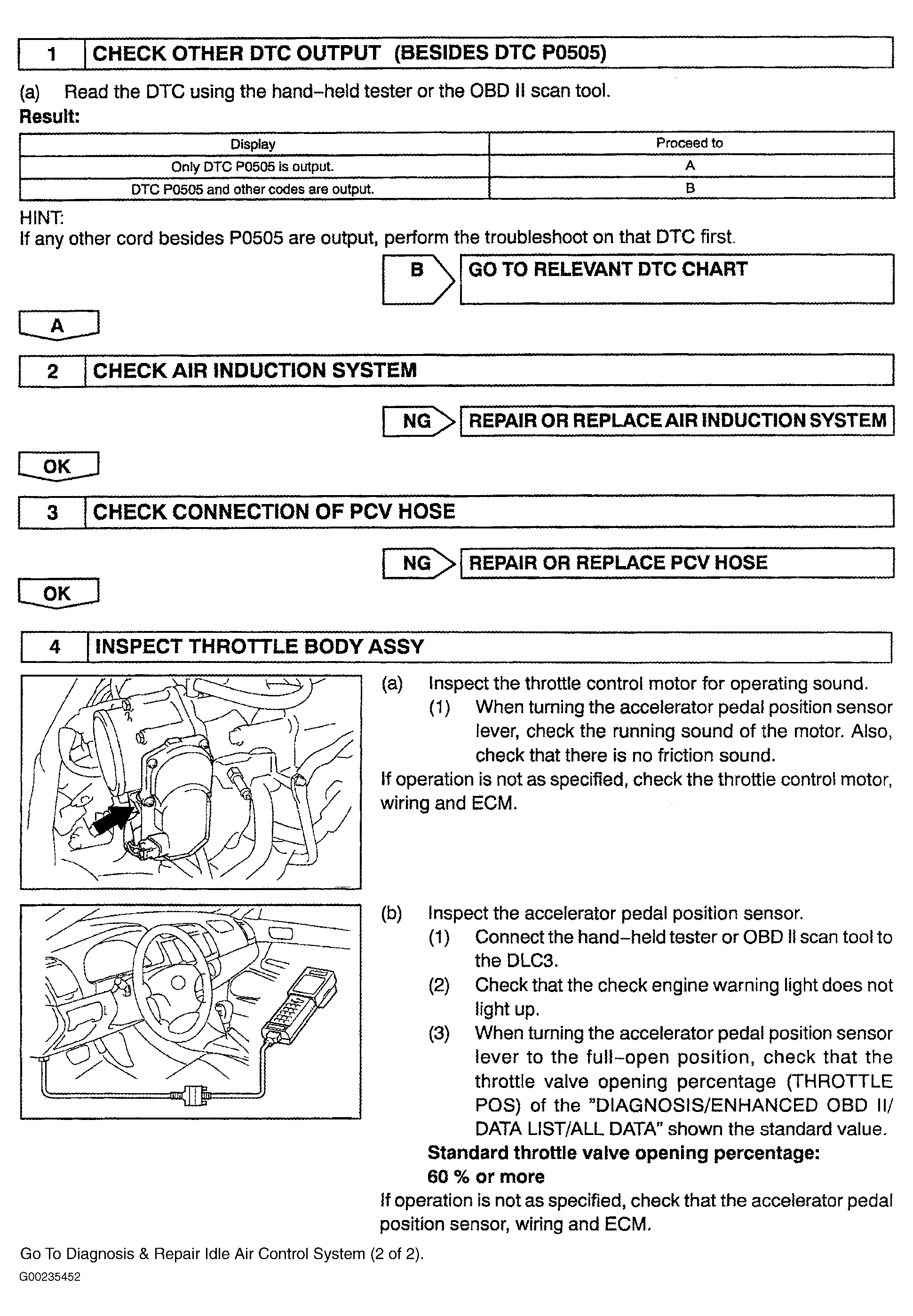

Fig 1: Diagnosis & Repair Of Idle Air Control System (1 Of 2)
G00235452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

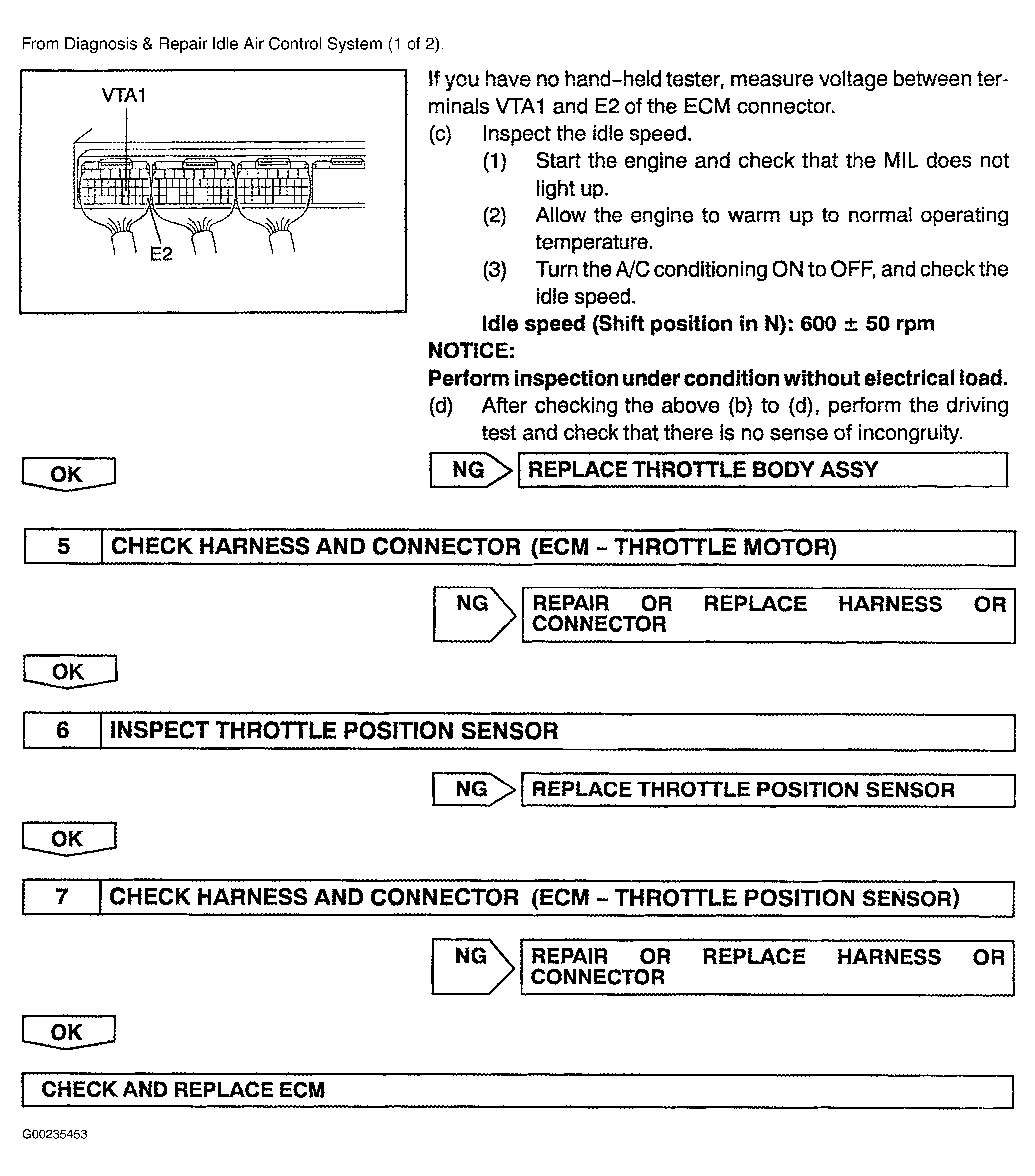

Fig 2: Diagnosis & Repair Of Idle Air Control System (2 Of 2)
G00235453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
