Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2.

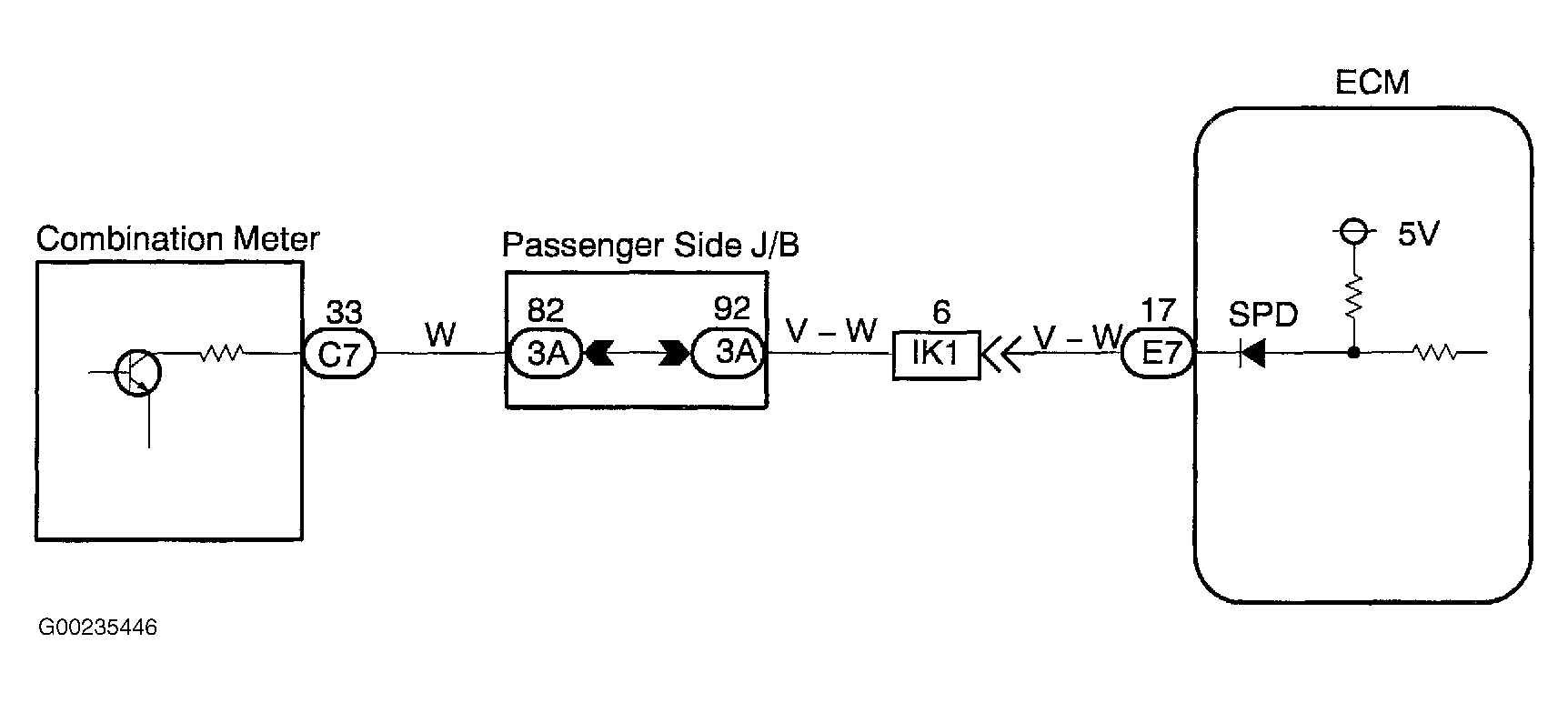

Fig 1: Vehicle Speed Sensor Circuit Wiring Diagram
G00235446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

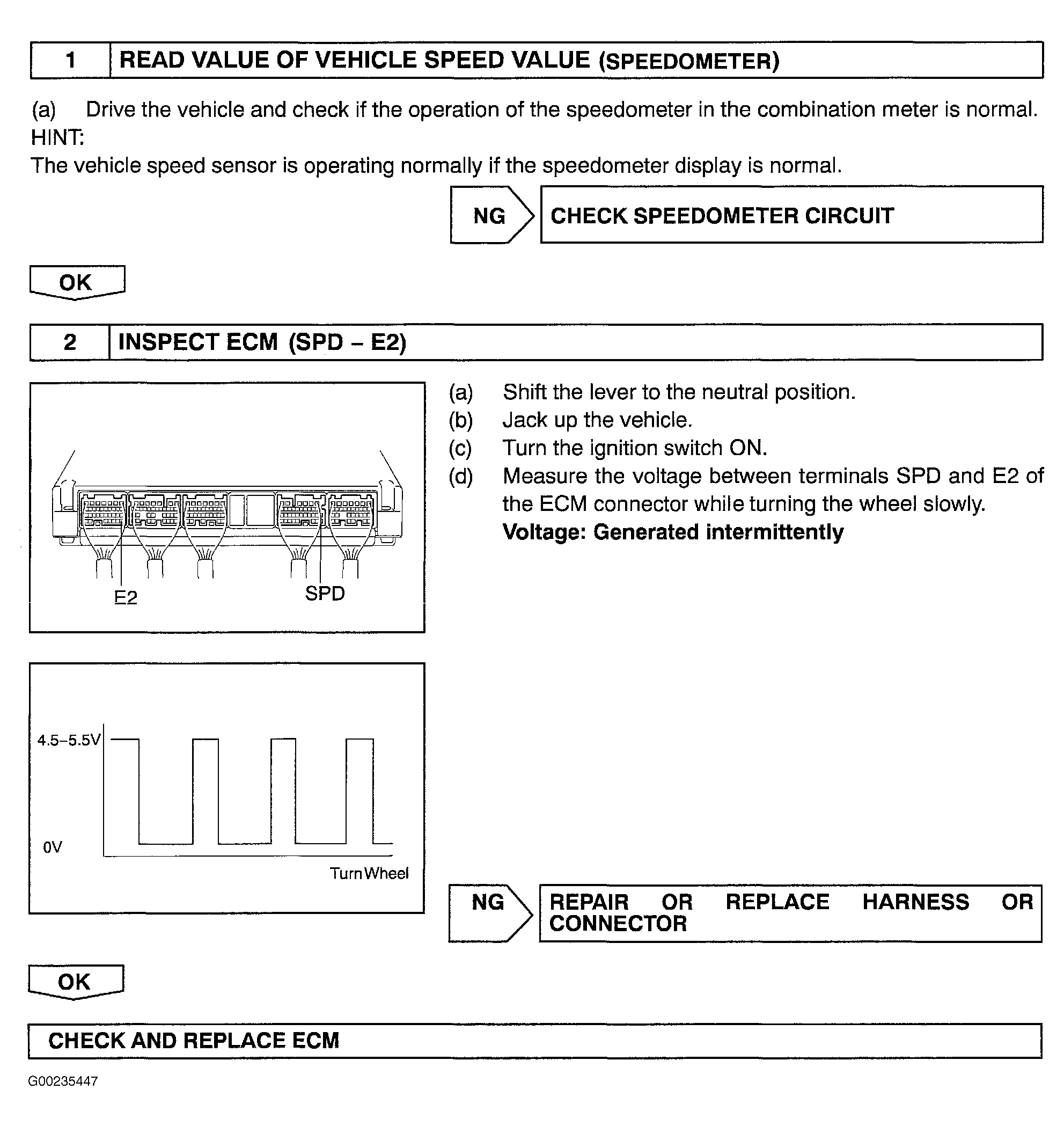

Fig 2: Diagnosis & Repair Of Vehicle Speed Sensor "A"
G00235447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
