Diagnosis & Repair (With Hand-Held Tester)

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

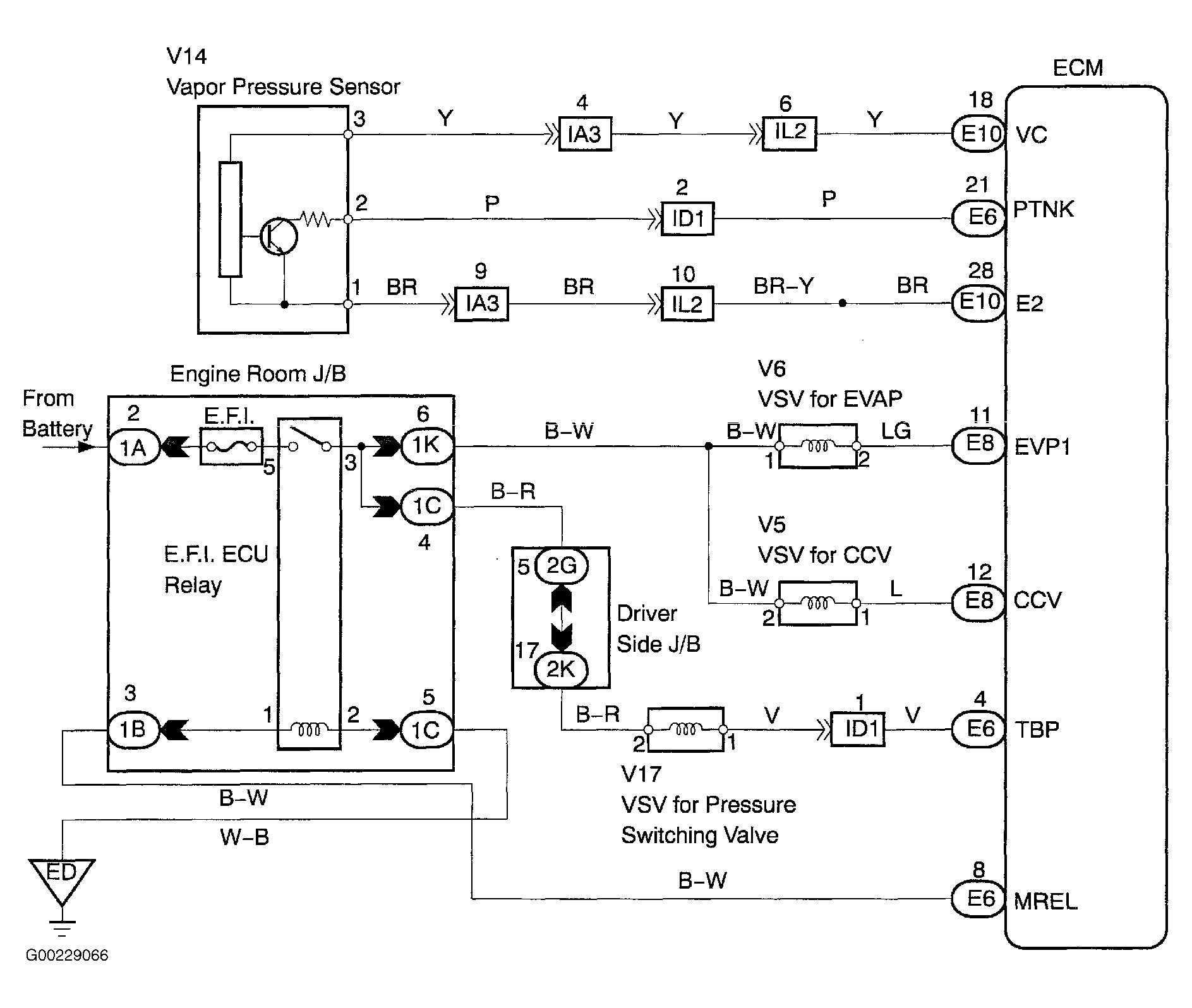

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1-Fig 6 .

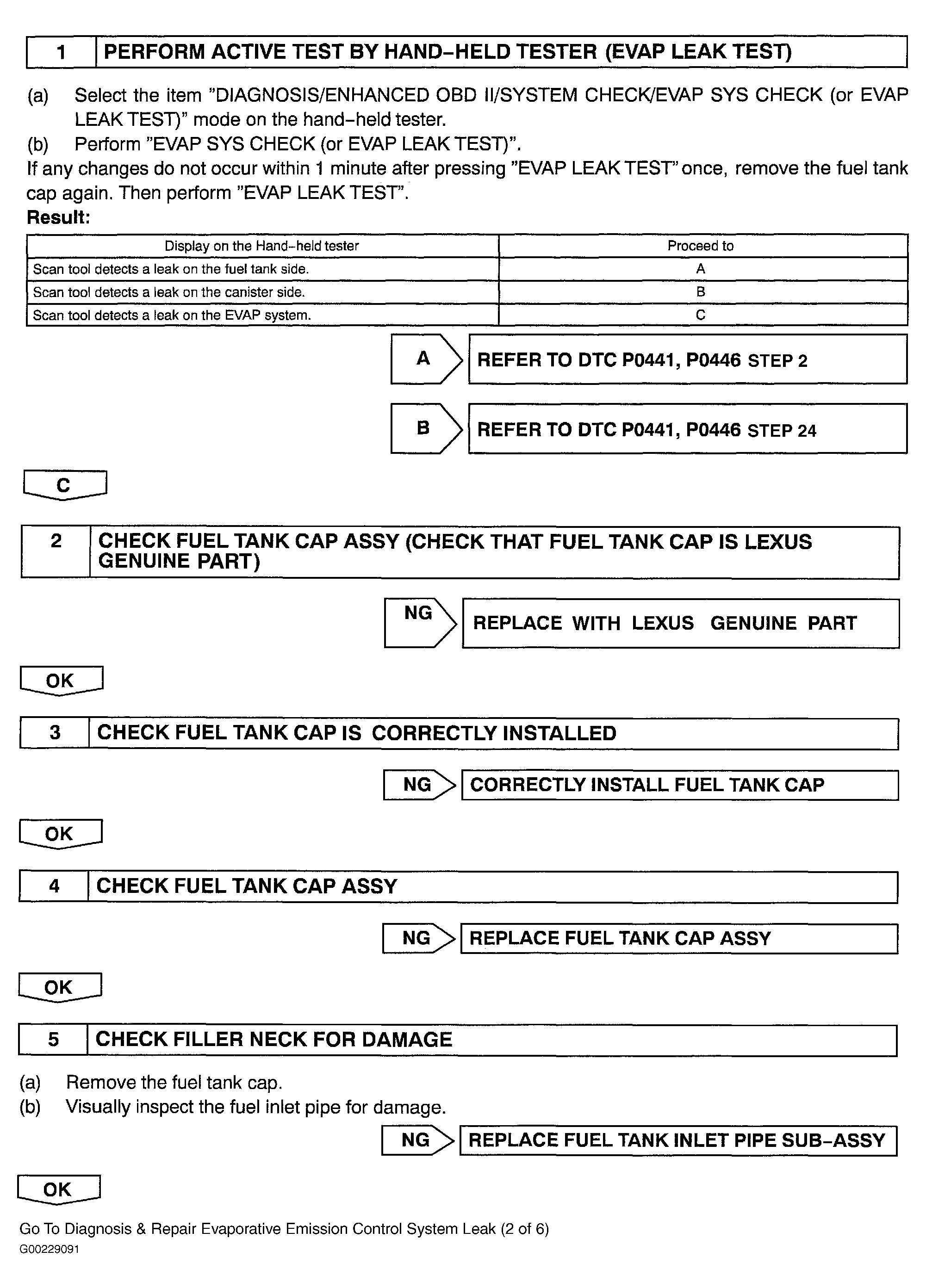

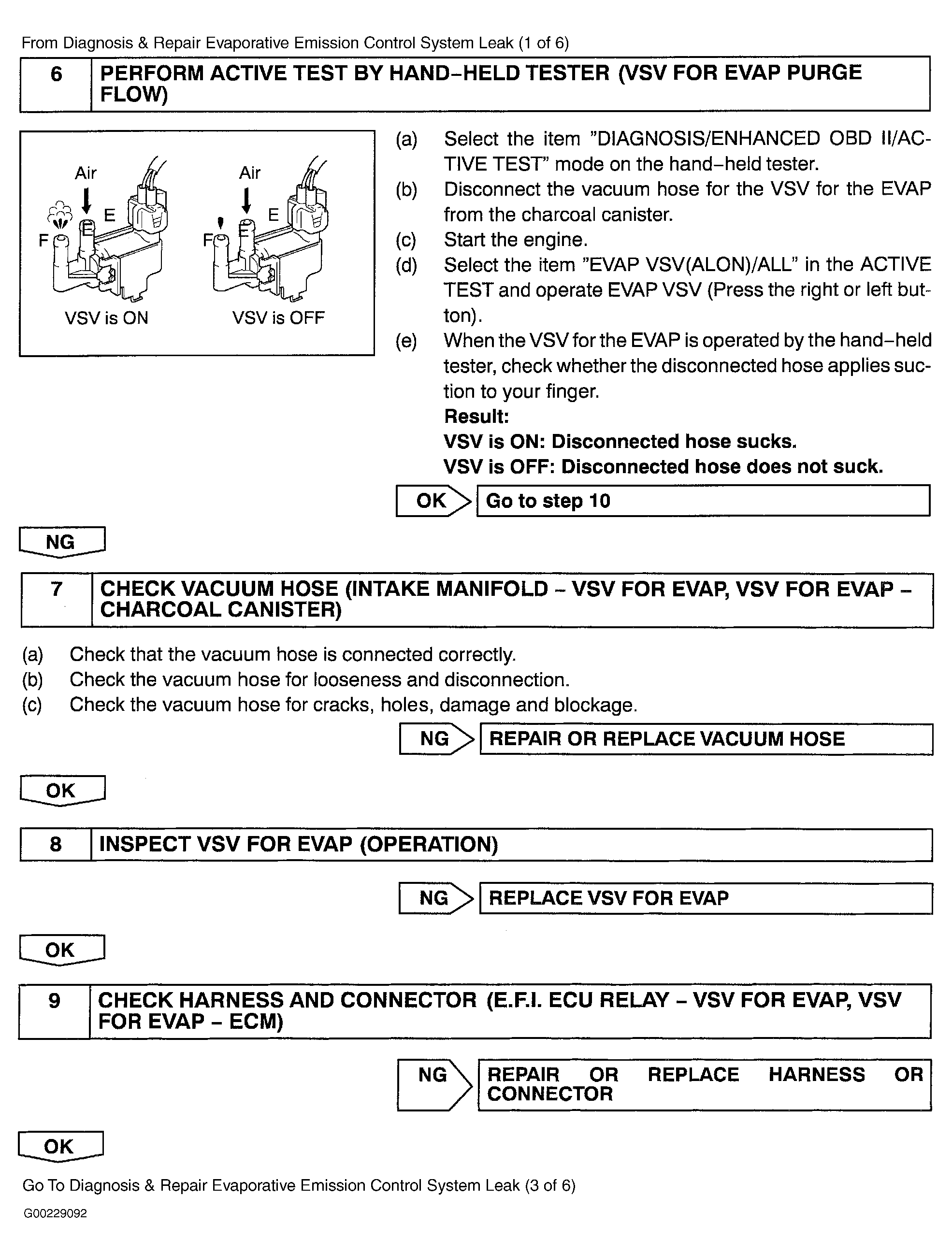

Fig 1: Diagnosis & Repair Of Evaporative Emission Control System Leak (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

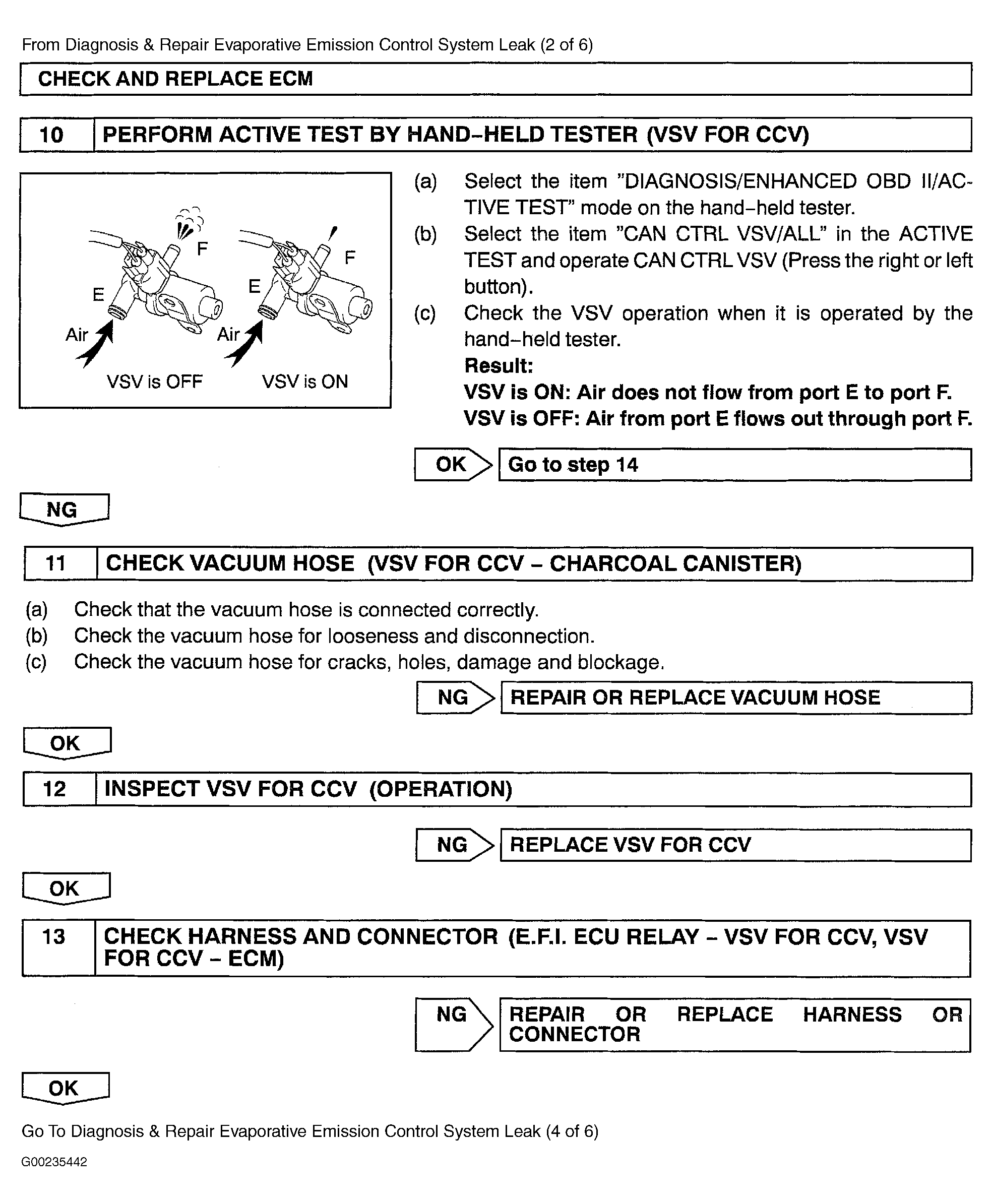

Fig 2: Diagnosis & Repair Of Evaporative Emission Control System Leak (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

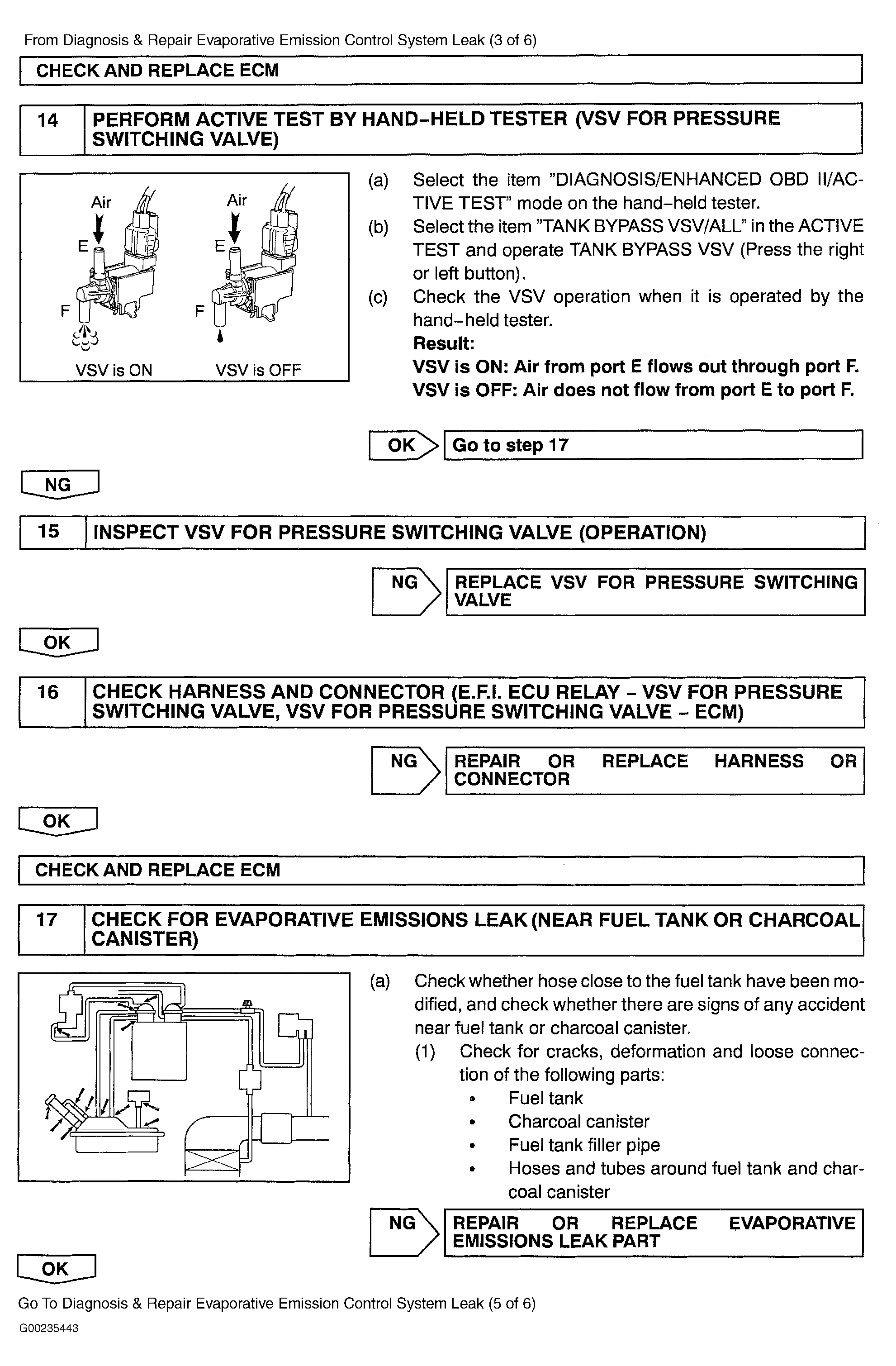

Fig 3: Diagnosis & Repair Of Evaporative Emission Control System Leak (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

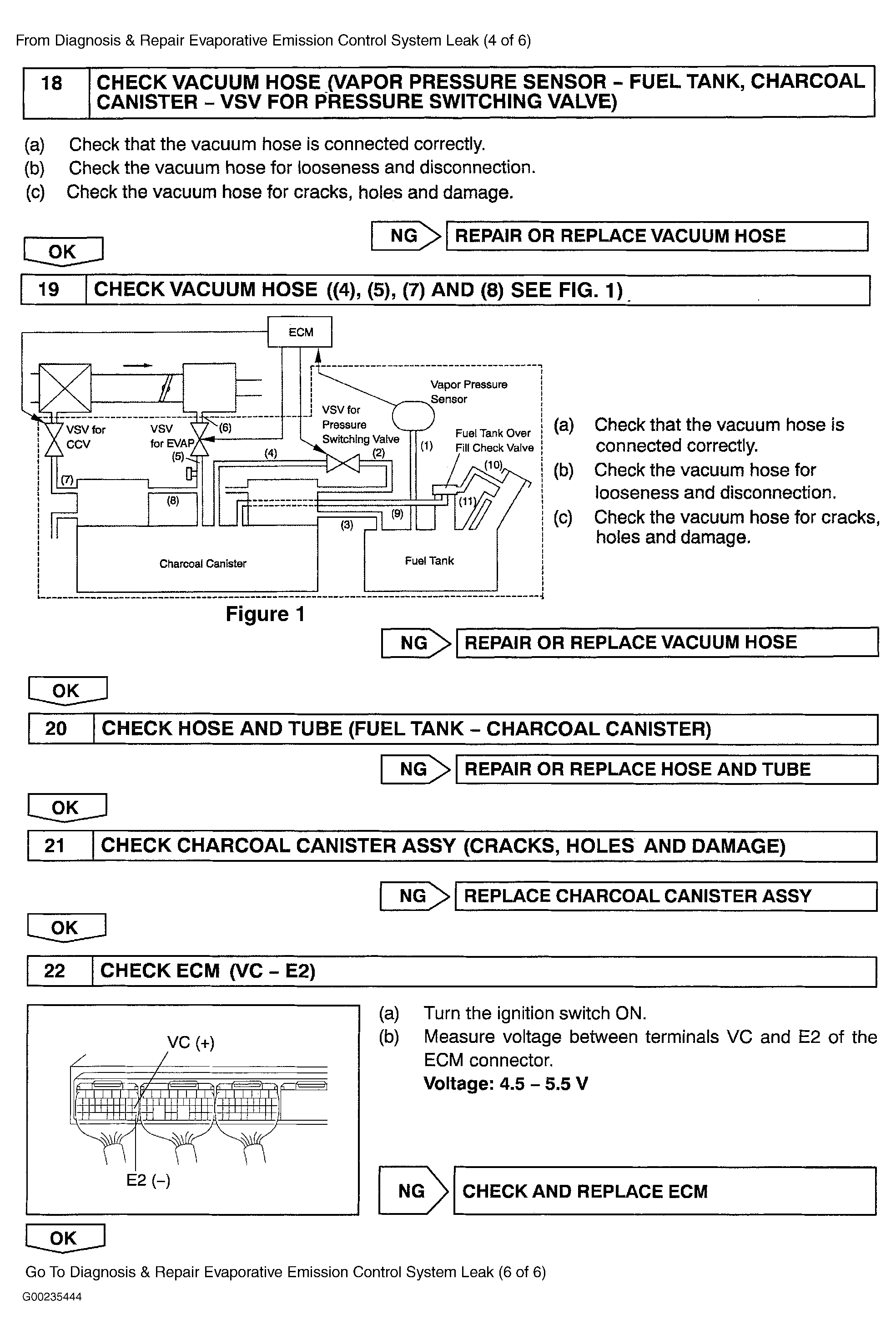

Fig 4: Diagnosis & Repair Of Evaporative Emission Control System Leak (4 Of 6)

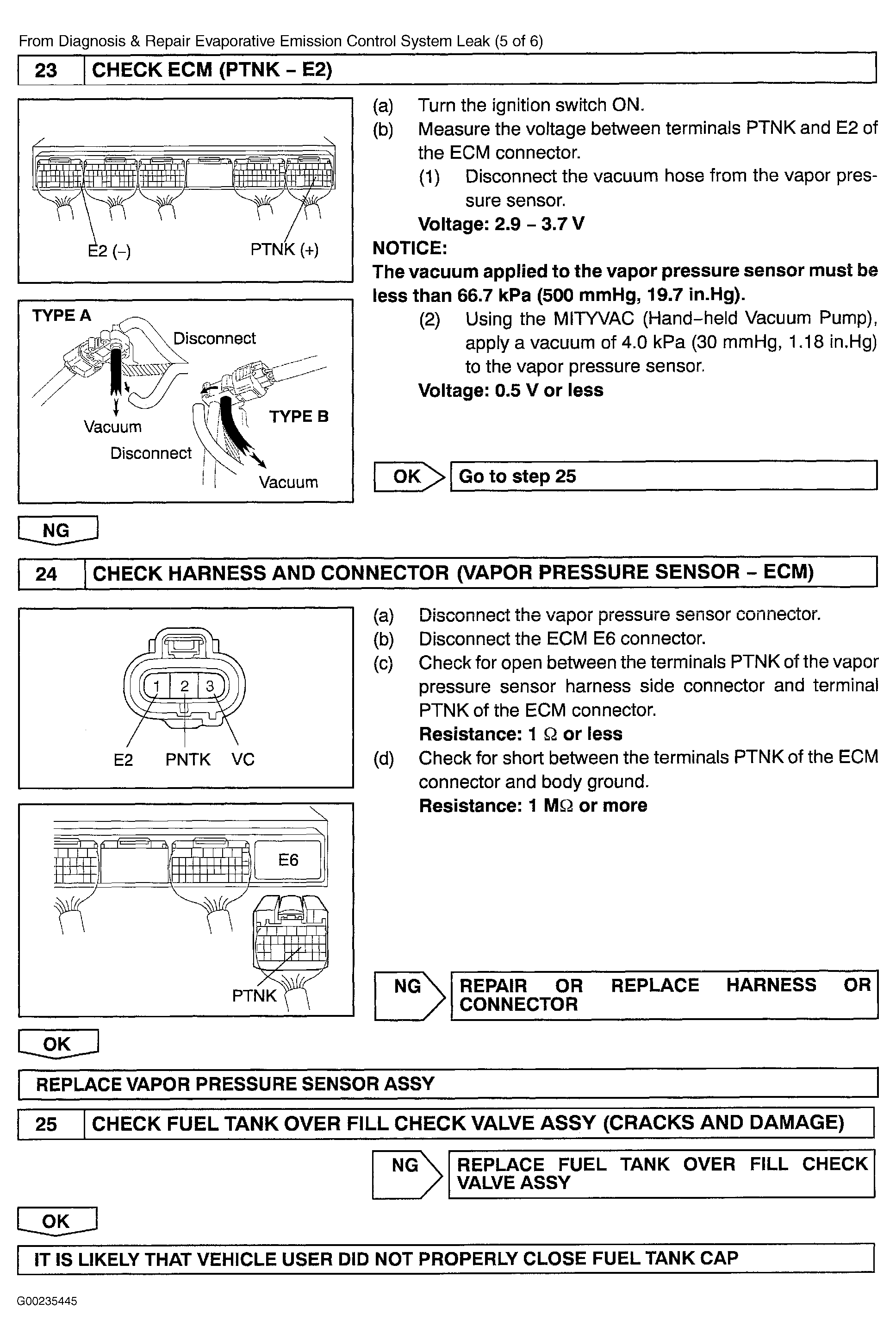

Fig 5: Diagnosis & Repair Of Evaporative Emission Control System Leak (5 Of 6)

Fig 6: Diagnosis & Repair Of Evaporative Emission Control System Leak (6 Of 6)
