Diagnosis & Repair (With OBD-II Scan Tool)

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1-Fig 4 .

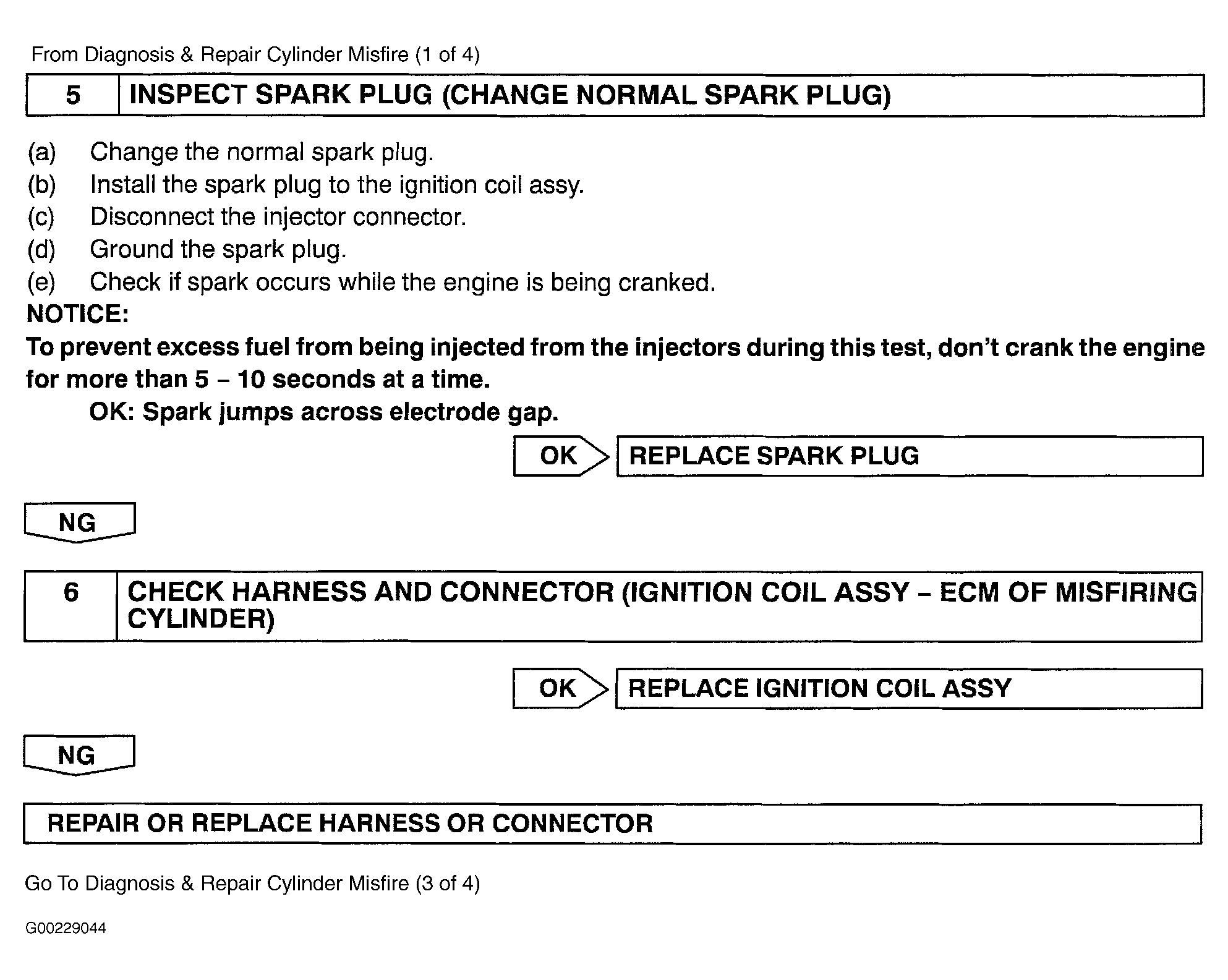

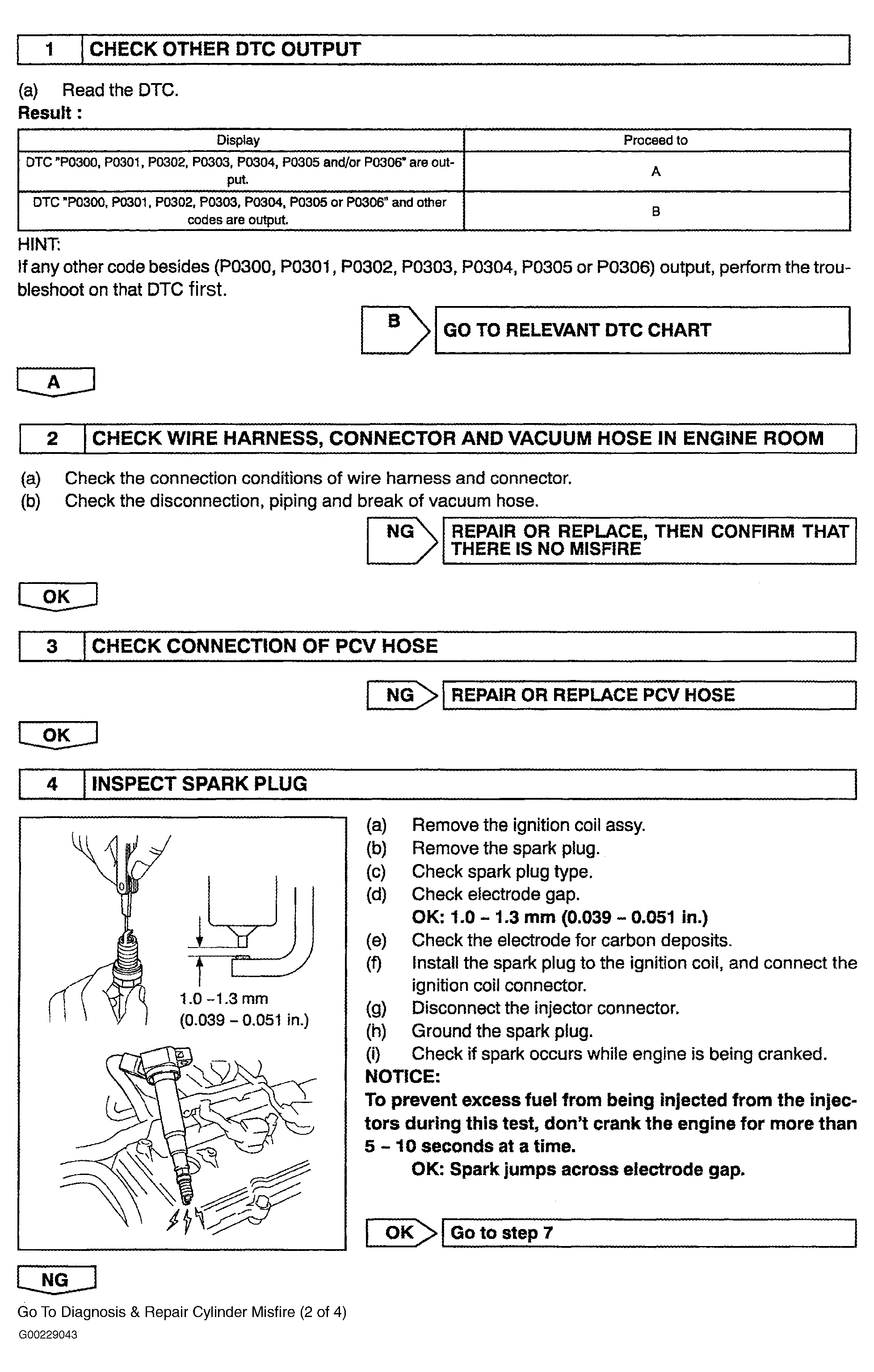

Fig 1: Diagnosis & Repair Of Cylinder Misfire (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

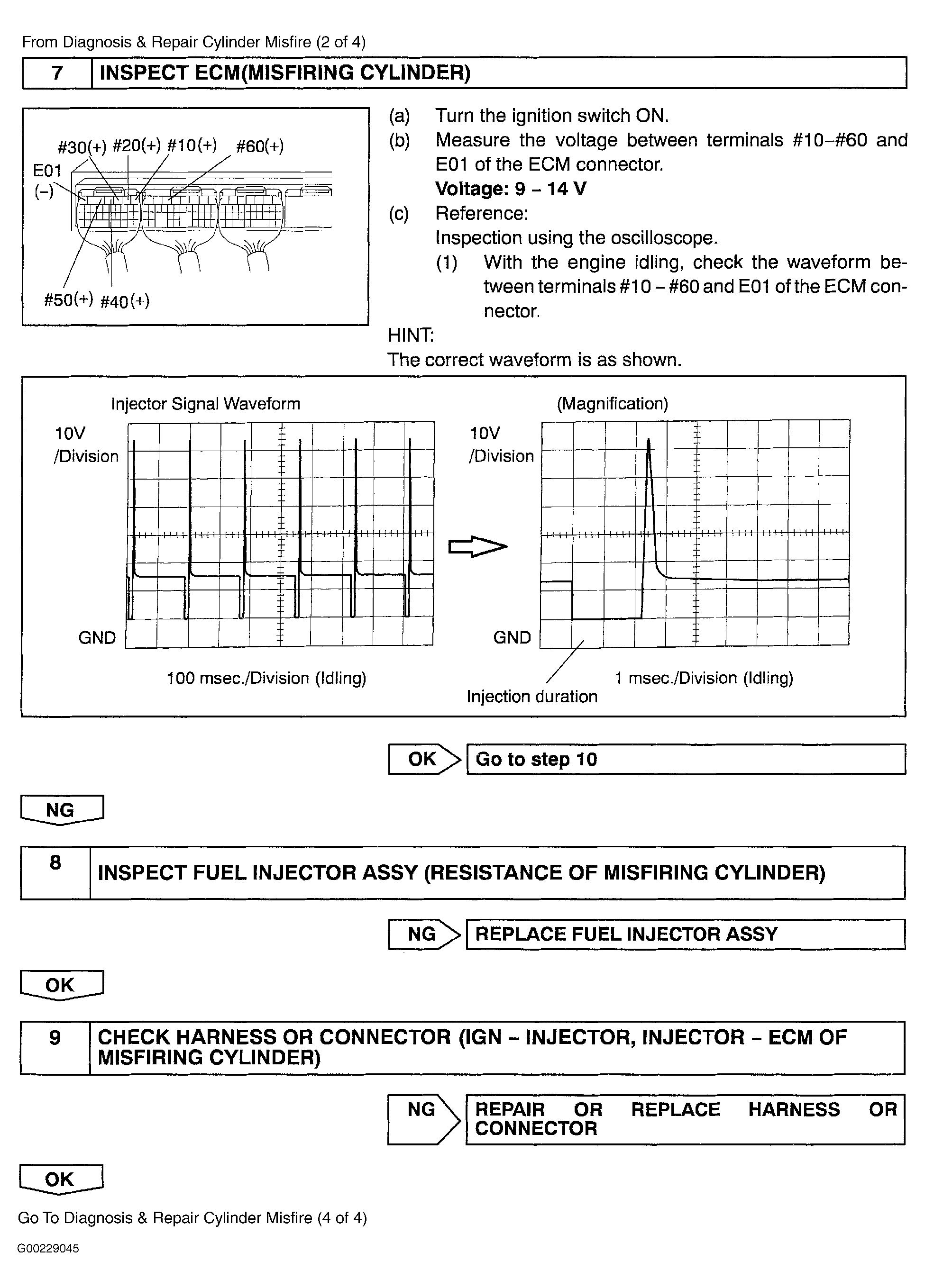

Fig 2: Diagnosis & Repair Of Cylinder Misfire (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

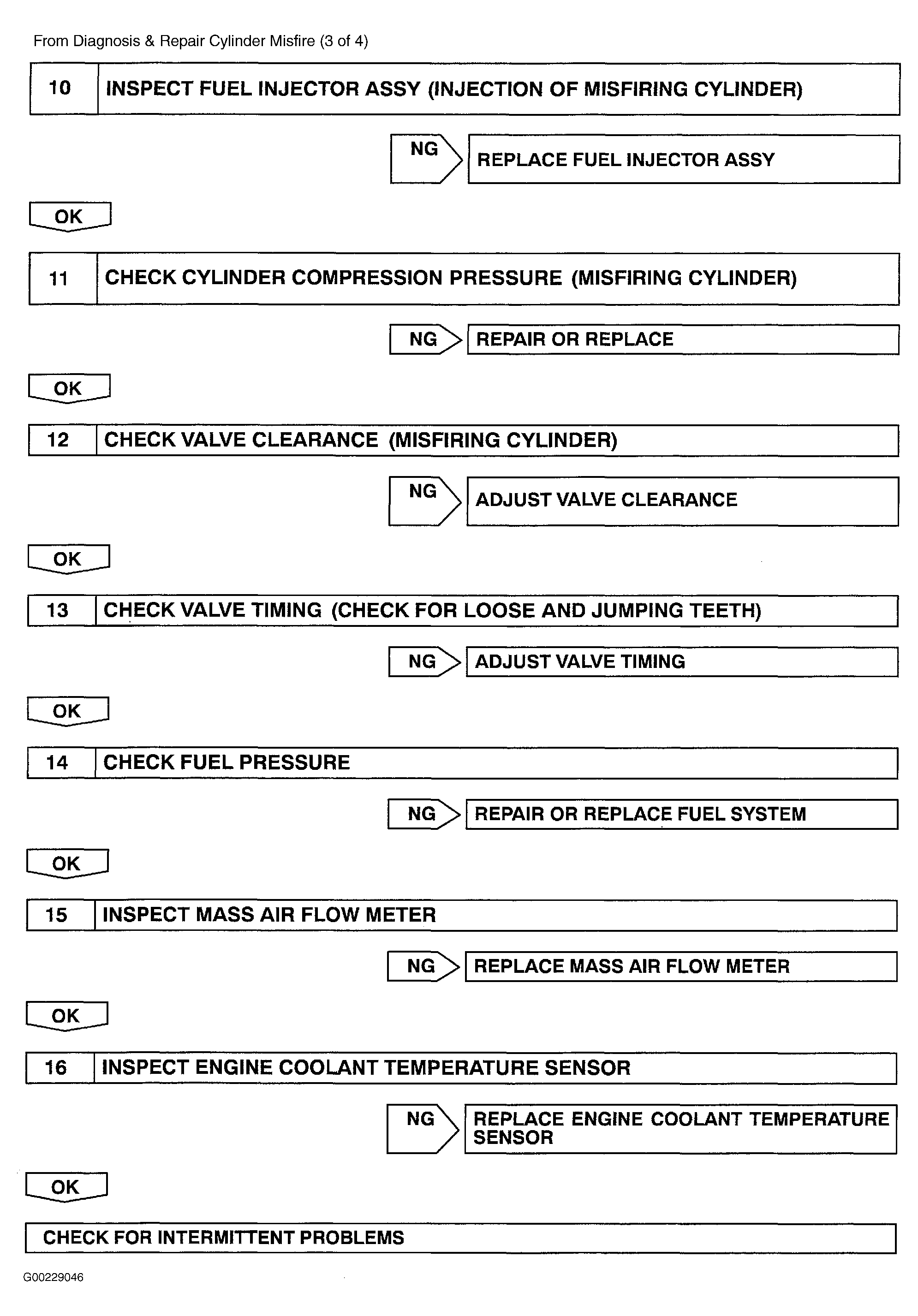

Fig 3: Diagnosis & Repair Of Cylinder Misfire (3 Of 4)

Fig 4: Diagnosis & Repair Of Cylinder Misfire (4 Of 4)
