Diagnosis & Repair (With Hand-Held Tester)

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1-Fig 5 .

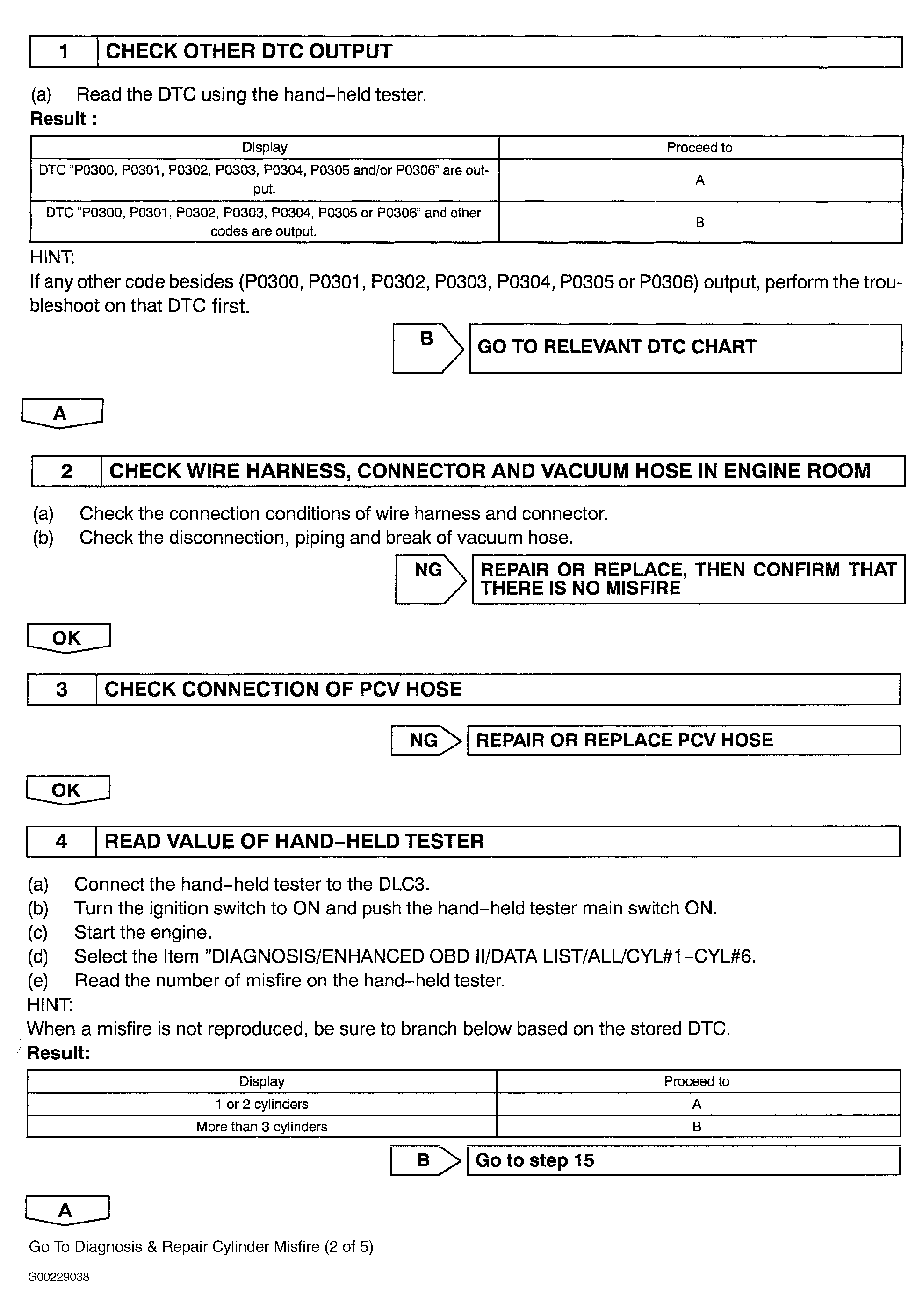

Fig 1: Diagnosis & Repair Of Cylinder Misfire (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

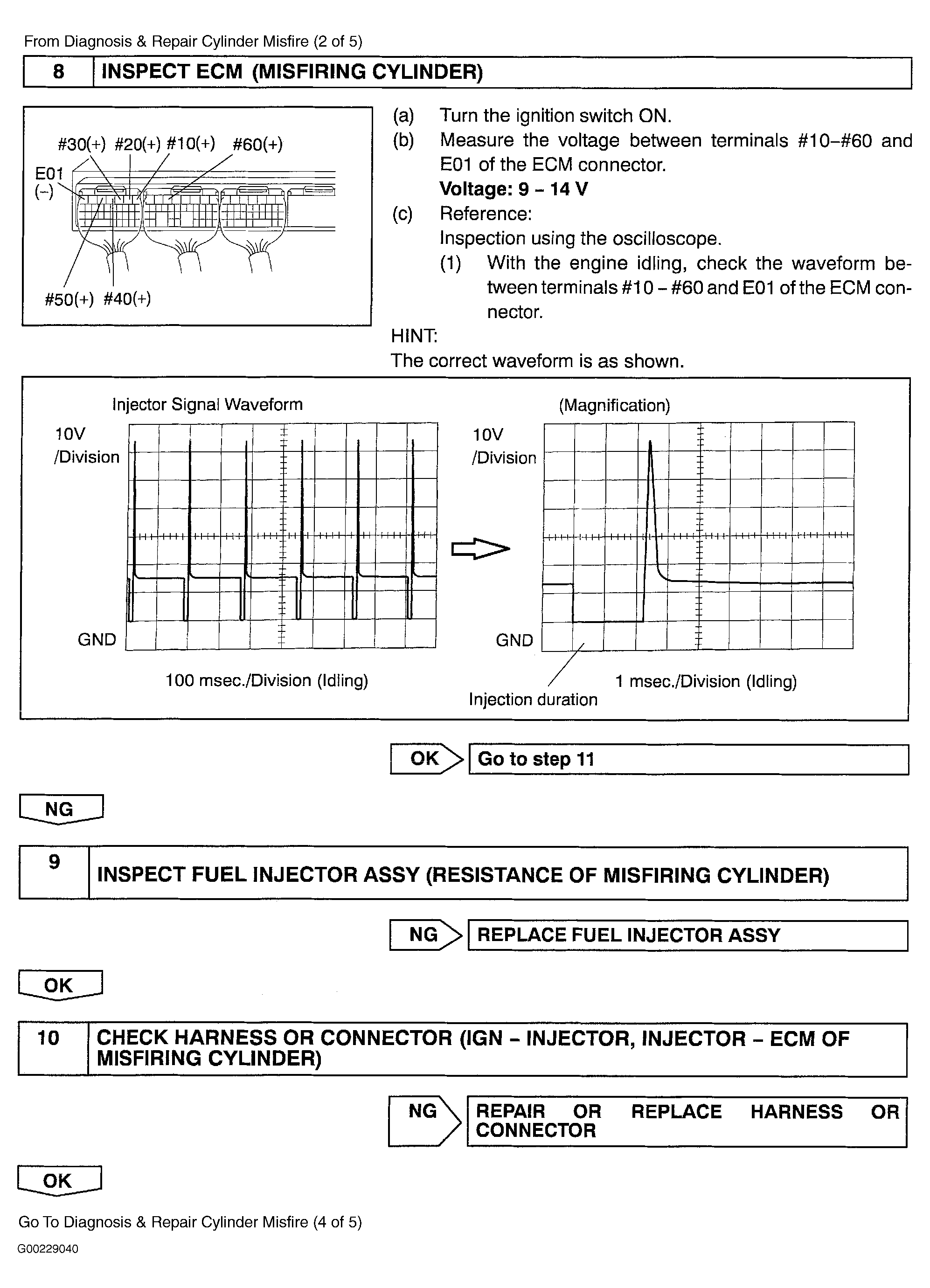

Fig 2: Diagnosis & Repair Of Cylinder Misfire (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

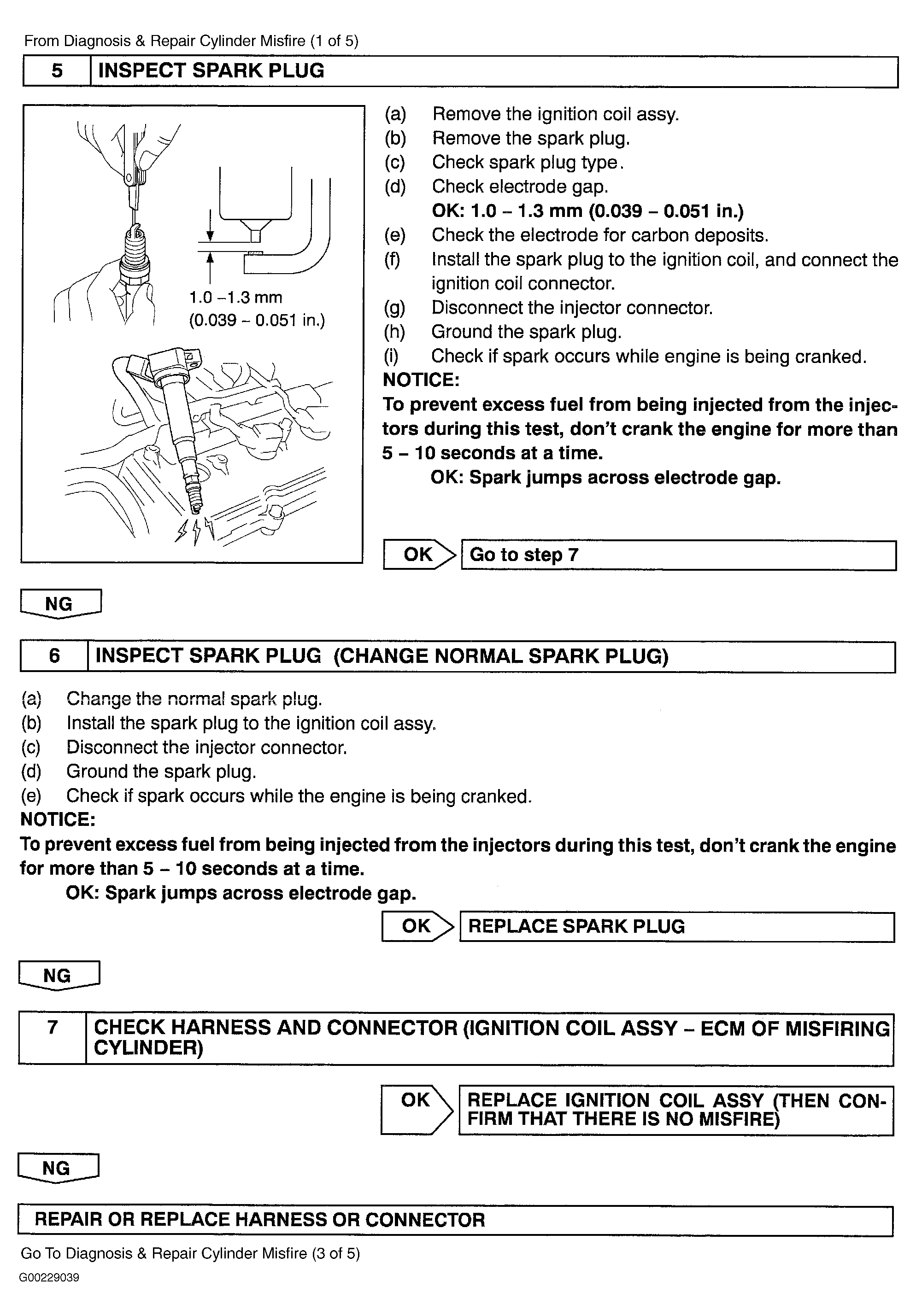

Fig 3: Diagnosis & Repair Of Cylinder Misfire (3 Of 5)

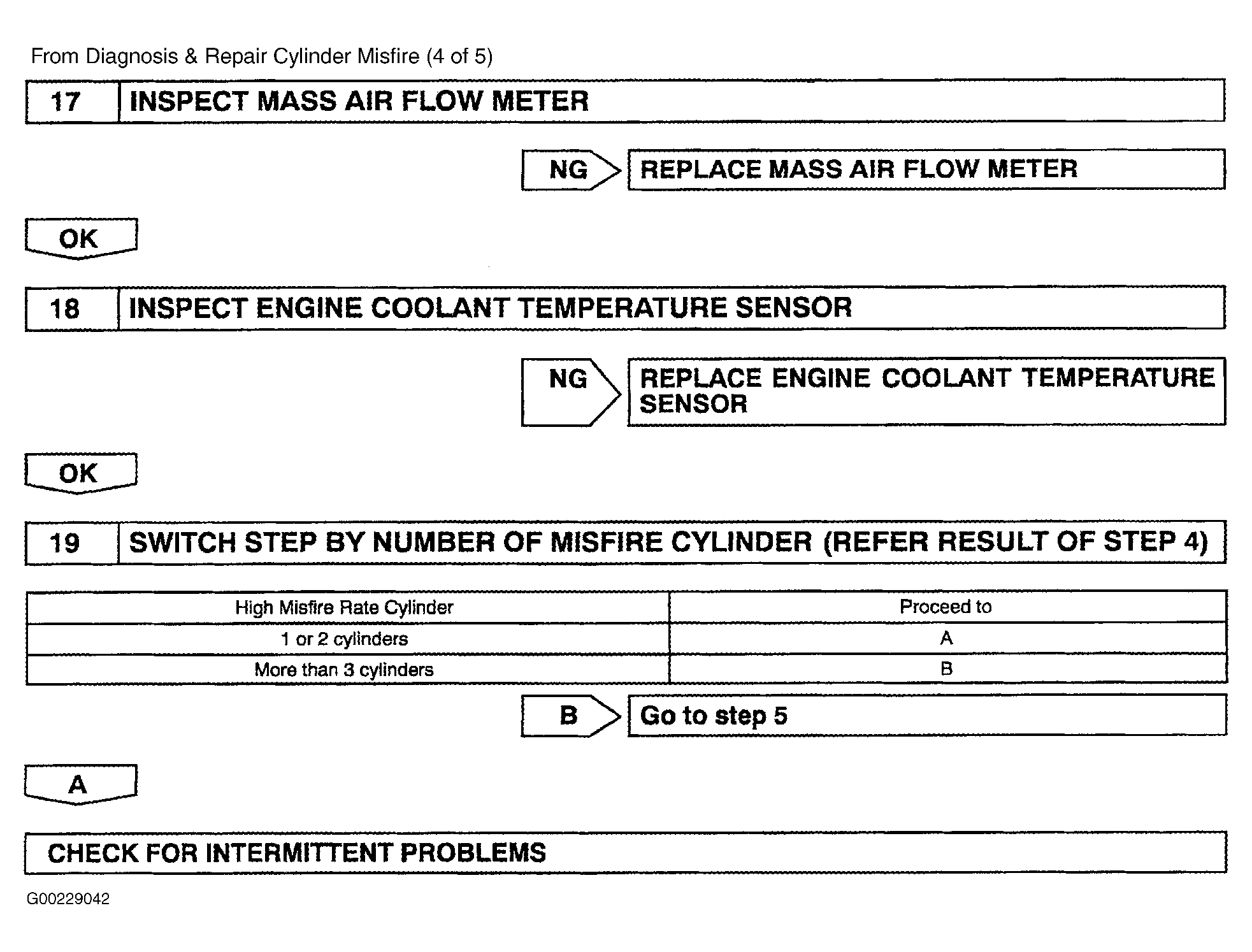

Fig 4: Diagnosis & Repair Of Cylinder Misfire (4 Of 5)

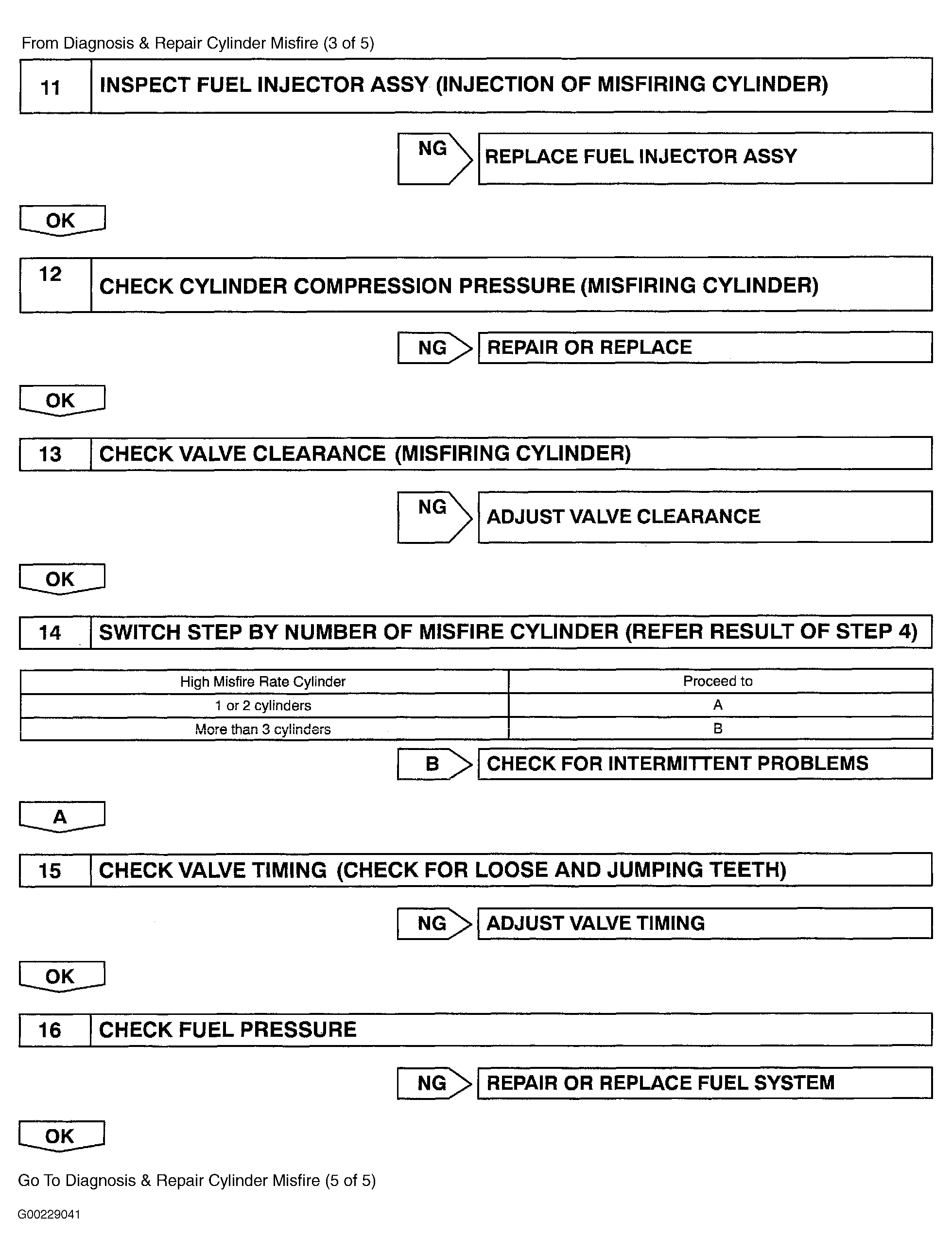

Fig 5: Diagnosis & Repair Of Cylinder Misfire (5 Of 5)
