On-Board Refueling Vapor Recovery (ORVR) System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
On some vehicles, ORVR system is used to recover fuel vapors into EVAP canister that are generated during refueling. ORVR system consists of fuel inlet pipe, overfill check valve and EVAP canister.

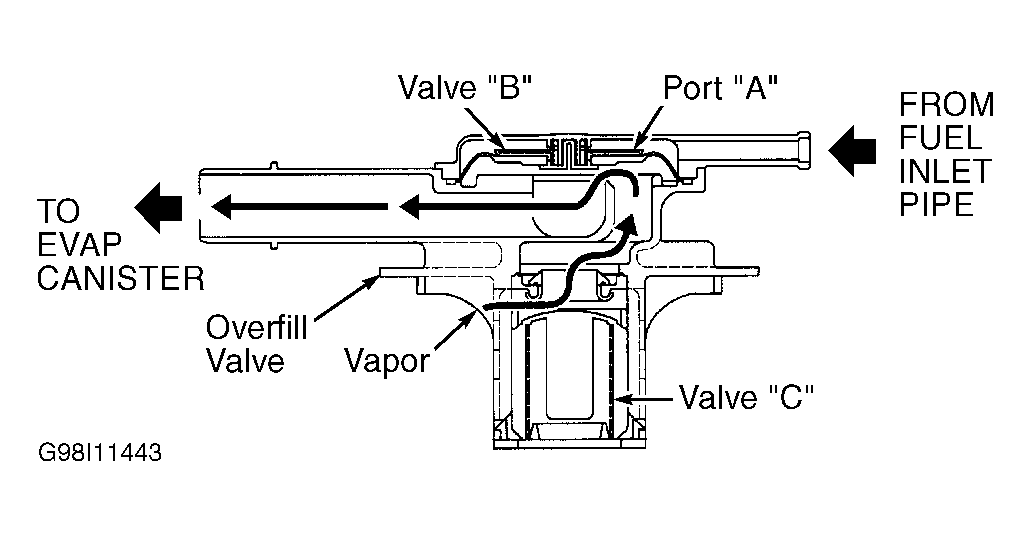

When fuel tank cap is removed, atmospheric pressure is applied to port "A" on overfill check valve. See Fig 1. Overfill check valve may also be referred to as ORVR-OCKV or fill check valve. When fuel flows into fuel inlet pipe and fuel tank, pressure in fuel tank increases. Increased pressure in fuel tank causes valve "B" on overfill valve to open, allowing fuel vapors to flow into EVAP canister. When fuel tank is full, valve "C" closes, shutting off vapor flow to EVAP canister.
