Fuel Lid Opener System

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

Verify customer problem. If fuel lid opener system does not operate properly, refer to the following list for possible cause of the malfunction.

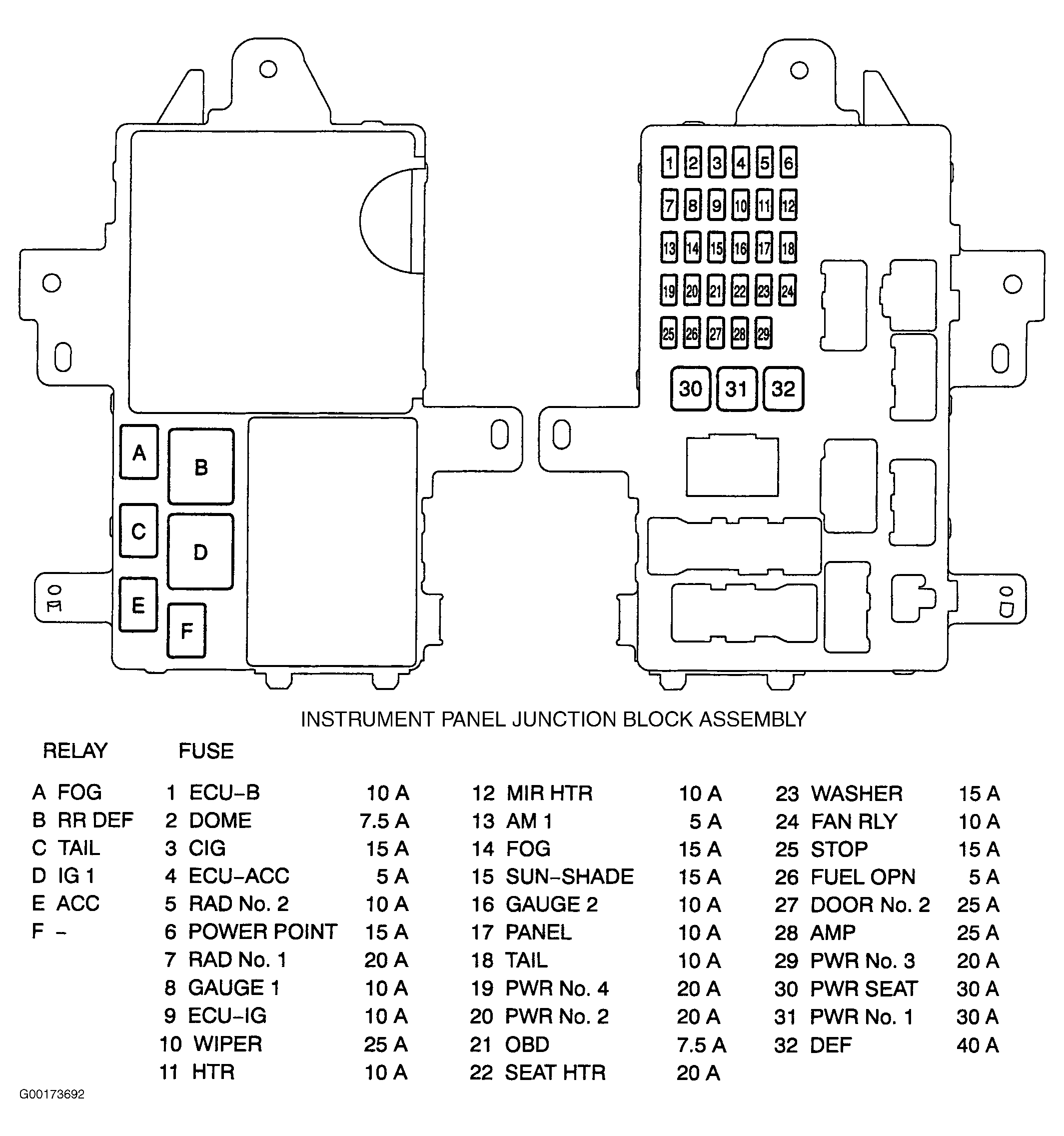

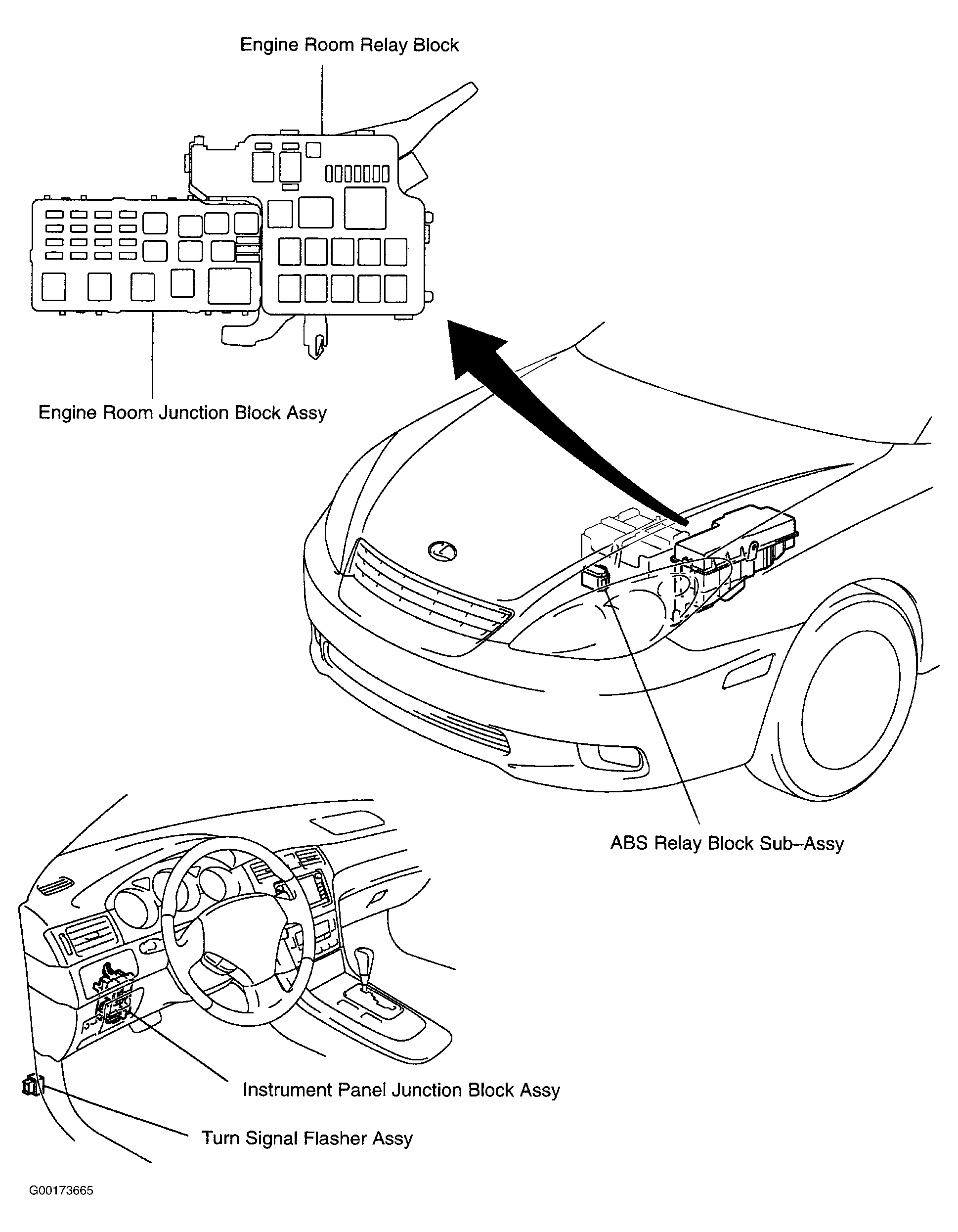

Check FUEL OPN fuse (5-amp) in instrument panel junction block. See Figure and Figure .
Check fuel lid opening switch. See FUEL LID OPENER SWITCH & FUEL LID OPENING LOCK SUBASSEMBLY under COMPONENT TESTS.
Check fuel lid opening lock subassembly. See FUEL LID OPENER SWITCH & FUEL LID OPENING LOCK SUBASSEMBLY under COMPONENT TESTS.
Check wiring. For fuel lid opener system wiring, see TRUNK, TAILGATE & FUEL DOOR under SYSTEM WIRING DIAGRAMS in ELECTRICAL.
