Rear Motor Lock Assembly (Driver's Side & Passenger's Side Doors)

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For inspection procedure, see Fig 1.

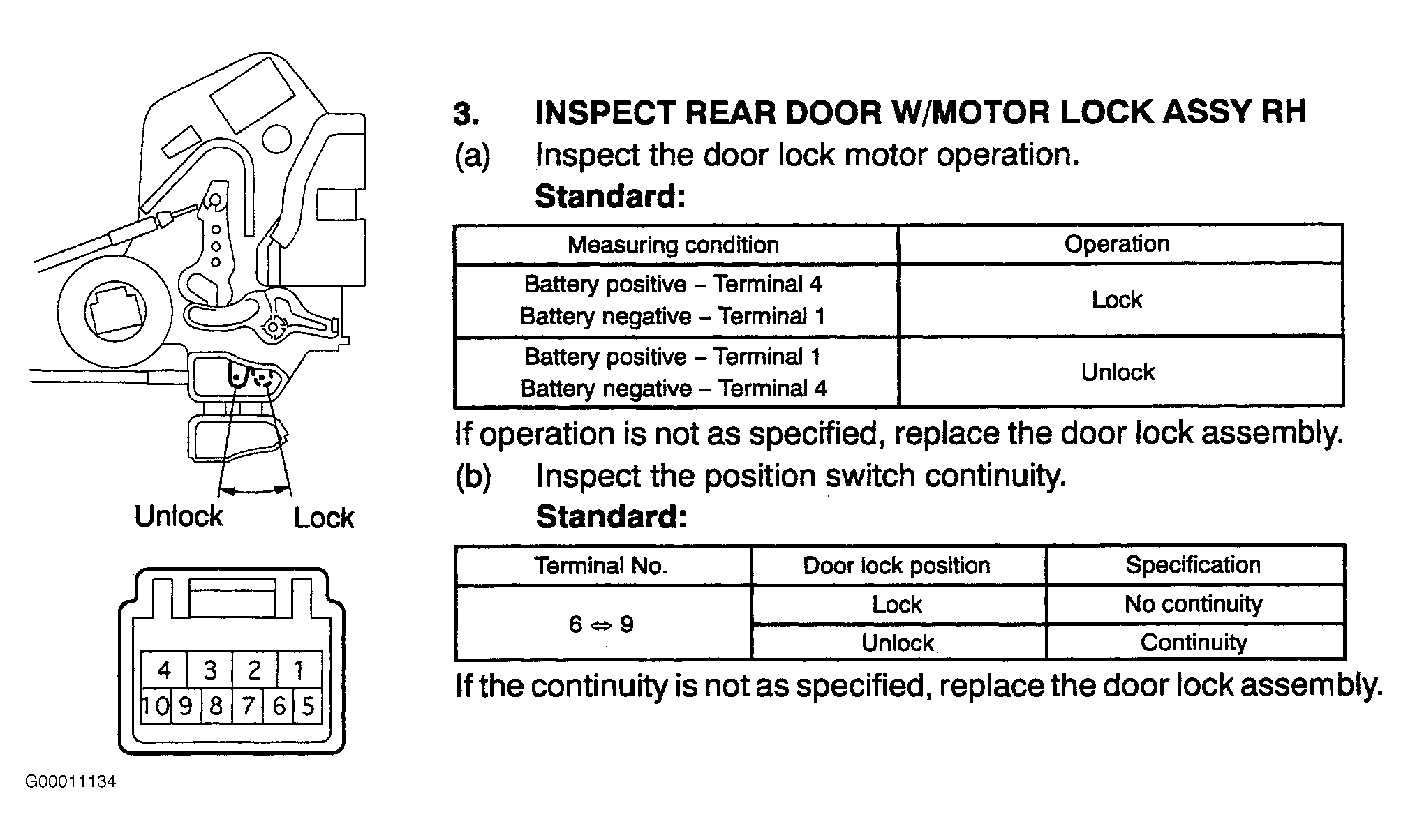

Fig 1: Inspecting Rear Motor Lock Assembly (Driver's Side & Passenger's Side Doors
G00011134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
