Luggage Compartment Door Lock Assembly

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For inspection procedure, see Fig 1.

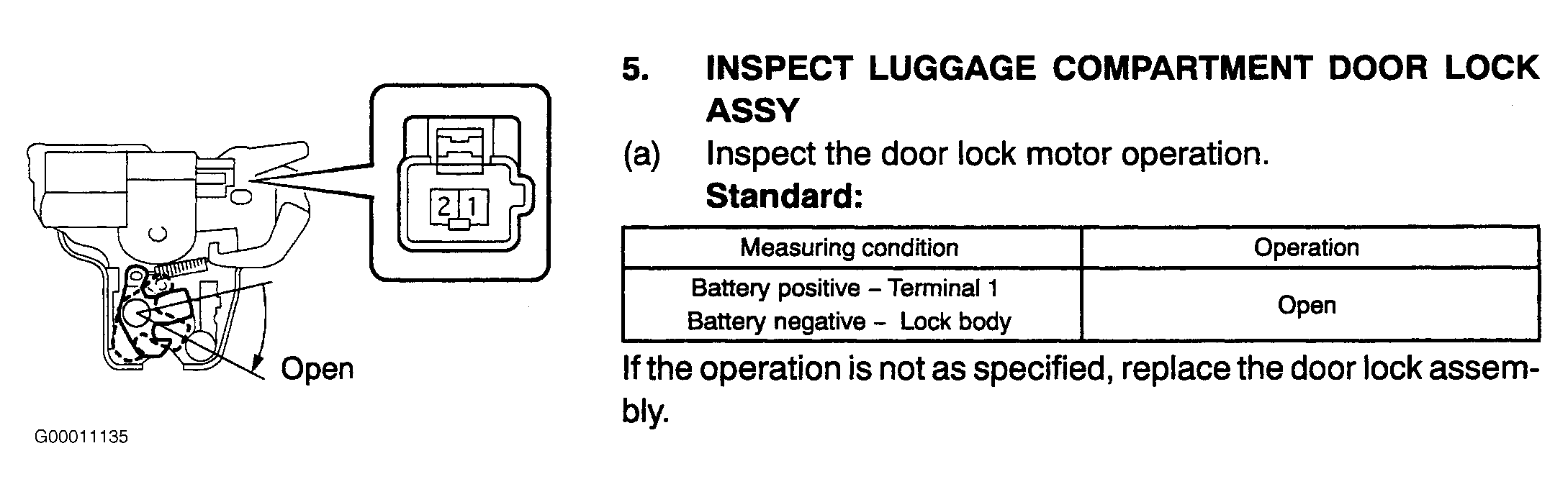

Fig 1: Inspecting Luggage Compartment Door Lock Assembly
G00011135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
