Removal & Installation

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Ensure front wheels are in straight-ahead position. Turn ignition switch to LOCK position. Disconnect negative battery cable. Wait at least 90 seconds. Working from back of steering wheel, loosen air bag module mounting Torx screws until groove around screw circumference catches on screw case. See Fig 1.
Pull driver-side air bag module from steering wheel and disconnect air bag module and horn electrical connectors. Place driver-side air bag module on a flat surface with pad cover facing up.
To install, reverse removal procedure. Tighten driver-side air bag module mounting Torx screws to specification. See TORQUE SPECIFICATIONS . There should be no interference between driver-side air bag module and steering wheel and clearance should be uniform. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .

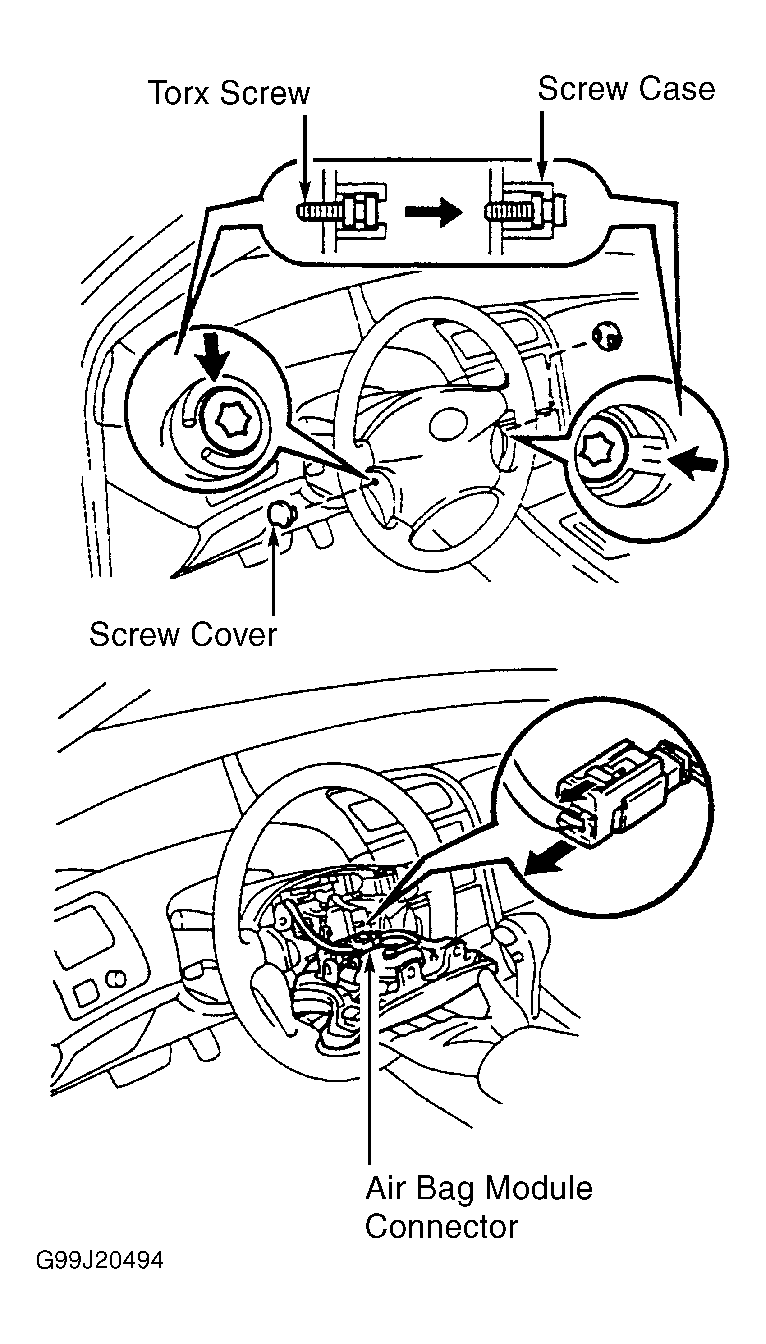

Fig 1: Removing Driver-side Air Bag Module
