Removal (RAV4)
WARNING: This page is about a different car, the 2001 Toyota Sequoia, 2001 Toyota RAV4, 2001 Toyota MR2, and 2001 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove rear wheels. Drain differential oil into proper container. Remove ABS speed sensor (if equipped). Remove cotter pin and lock cap. Apply brakes and remove nut.

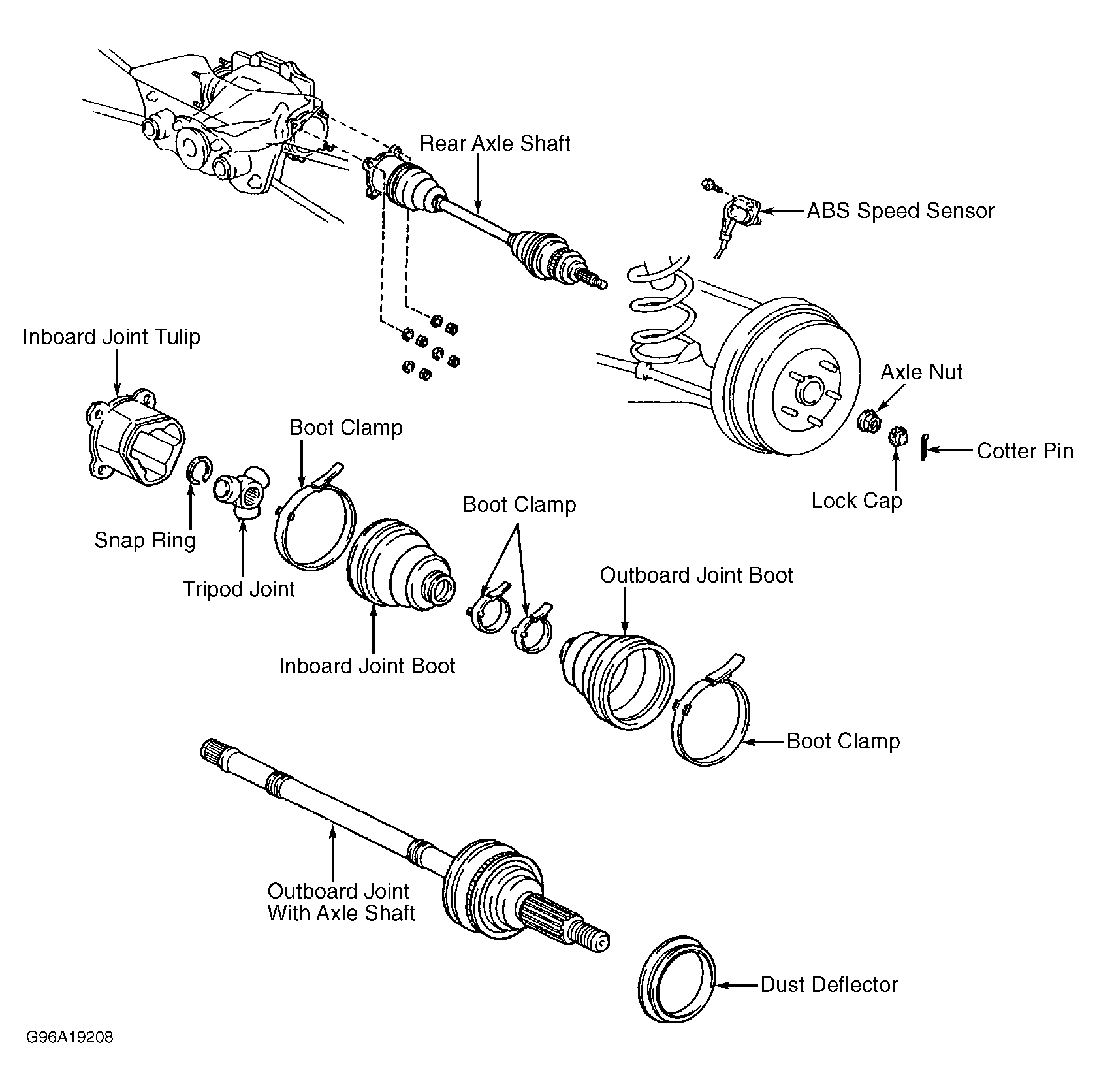

- Place match marks on axle shaft flange and differential flange for installation reference. Remove 4 nuts and washers. Using a plastic hammer, tap axle shaft from rear hub. Remove rear axle. See Fig 1.
