Removal (Floor Shift Models)
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

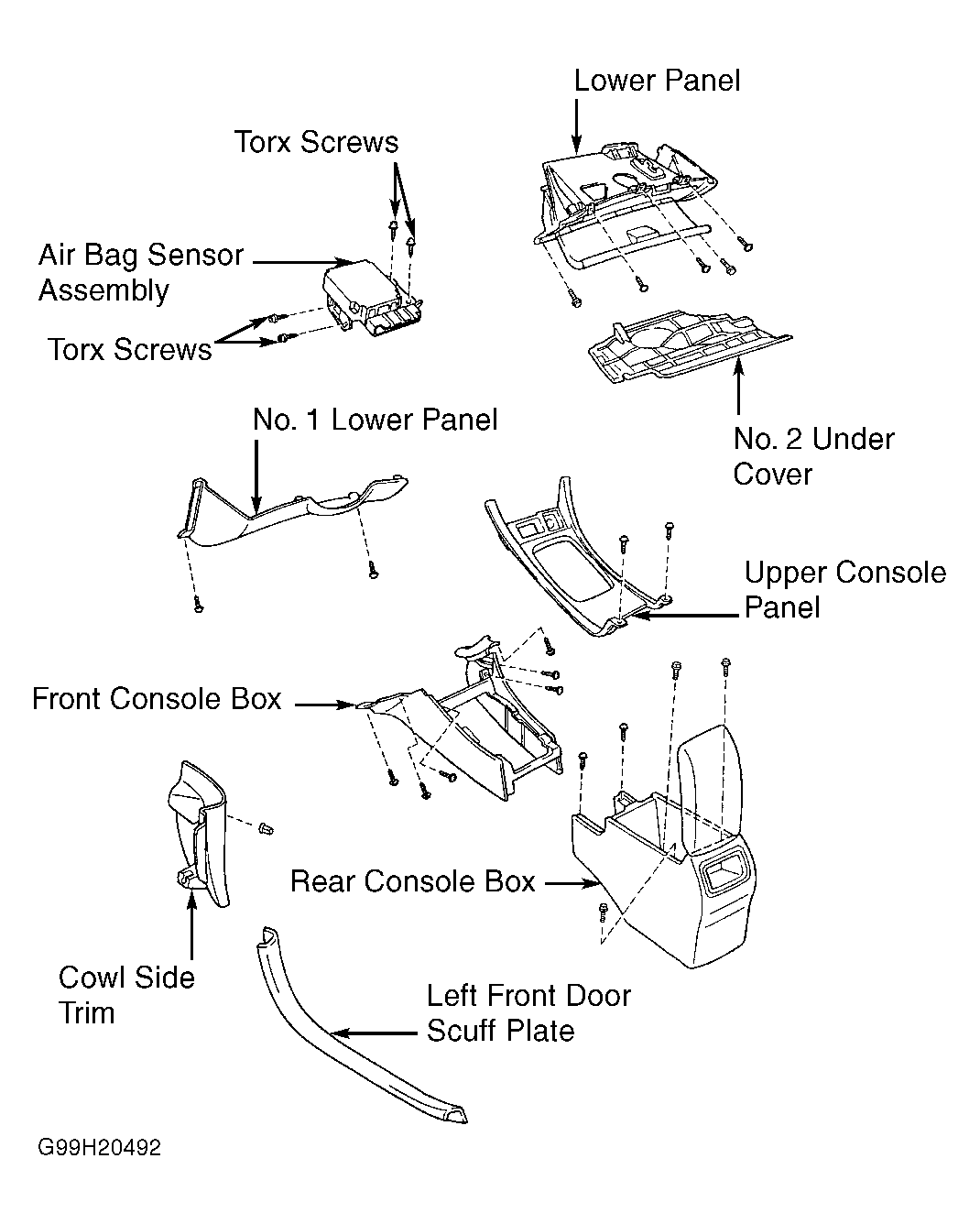

- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Turn ignition switch to LOCK position. Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Air bag sensor assembly is located on the floor inside front console box. See Figure.
- Remove left front door scuff plate and cowl side trim. Remove No. 1 lower panel and No. 2 under cover. Remove lower panel (glove box assembly). Remove upper console panel, rear console box and front console box. Disconnect air bag sensor assembly harness connectors. Using Torx wrench (T40), remove 4 Torx screws and air bag sensor assembly.
