Side AIR Bag
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

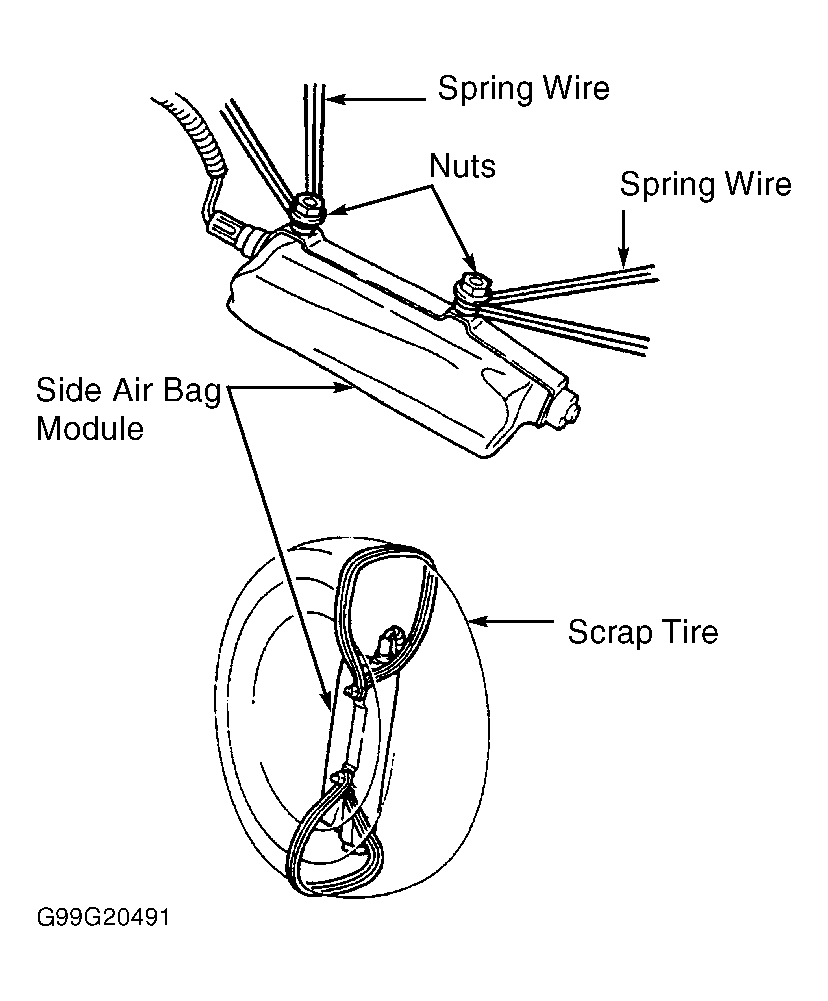

- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Test Deployment Tool (09082-00700). See TESTING DEPLOYMENT TOOL . Remove appropriate side air bag. See SIDE AIR BAG MODULE under REMOVAL & INSTALLATION. Install 2 nuts on stud located on rear side of air bag module. Wrap strong wire at least twice around each stud. See Fig 1. Ensure no slack is present in wire.
- Position side air bag module inside a scrap tire with air bag deployment direction facing inside and secure with strong wire. See Fig 1. Tire dimensions should be at least 7.28" (185 mm) wide and 14.17" (360 mm) inside diameter. Place this tire between 4 other tires (top tire should have wheel installed). Securely tie all tires together with wire. See Figure.
- Connect deployment tool, using Deployment Tool Sub-Harness Adapter (09082-00750), to side air bag connector. Position deployment tool at least 33 feet (10 meters) away from side air bag. Press activation switch to deploy side air bag. Because of heat, wait 30 minutes before handling side air bag. Seal deployed air bag module in vinyl bag and dispose of in usual manner.
