RESTRAINT SYSTEM COMPONENT LOCATIONS

Component

⁽¹⁾Location

Spiral cable

On steering column, behind steering wheel

Driver-side air bag module

Center of steering wheel

Front air bag sensors

Inside each front side member

Passenger-side air bag module

Right-side of instrument panel, above glove box

Air bag sensor assembly⁽²⁾

On floor inside front console box

Air bag sensor assembly⁽³⁾

On floor inside inside finish panel

Seat belt pretensioners

Integrated with front seat belt retractors

Side air bag modules

Outboard bolster of front seat backs

Side air bag sensor assemblies

In right and left center pillar

⁽¹⁾	See Fig 1.

⁽²⁾	On models with floor shift.

⁽³⁾	On models with column shift.

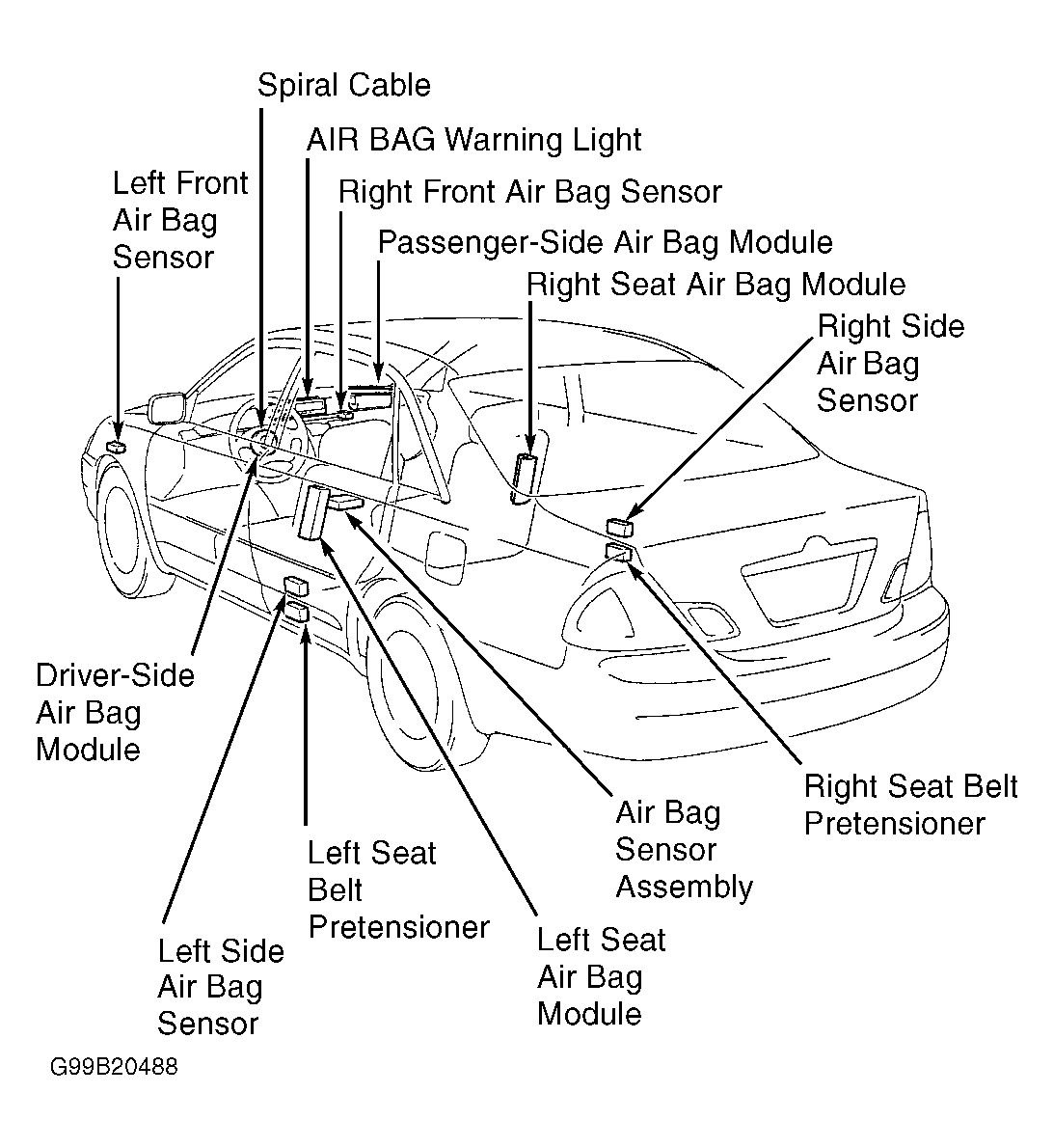

Fig 1: Locating Restraint System Components
