Touch Select Switches
WARNING: This page is about a different car, the 2002 Toyota Tundra and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS
.

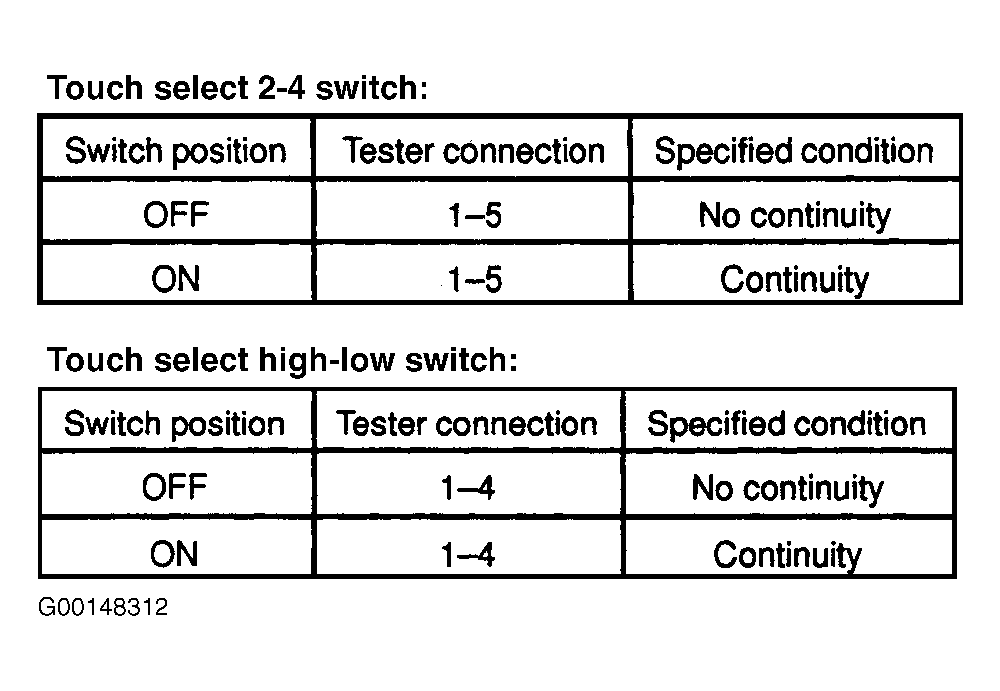

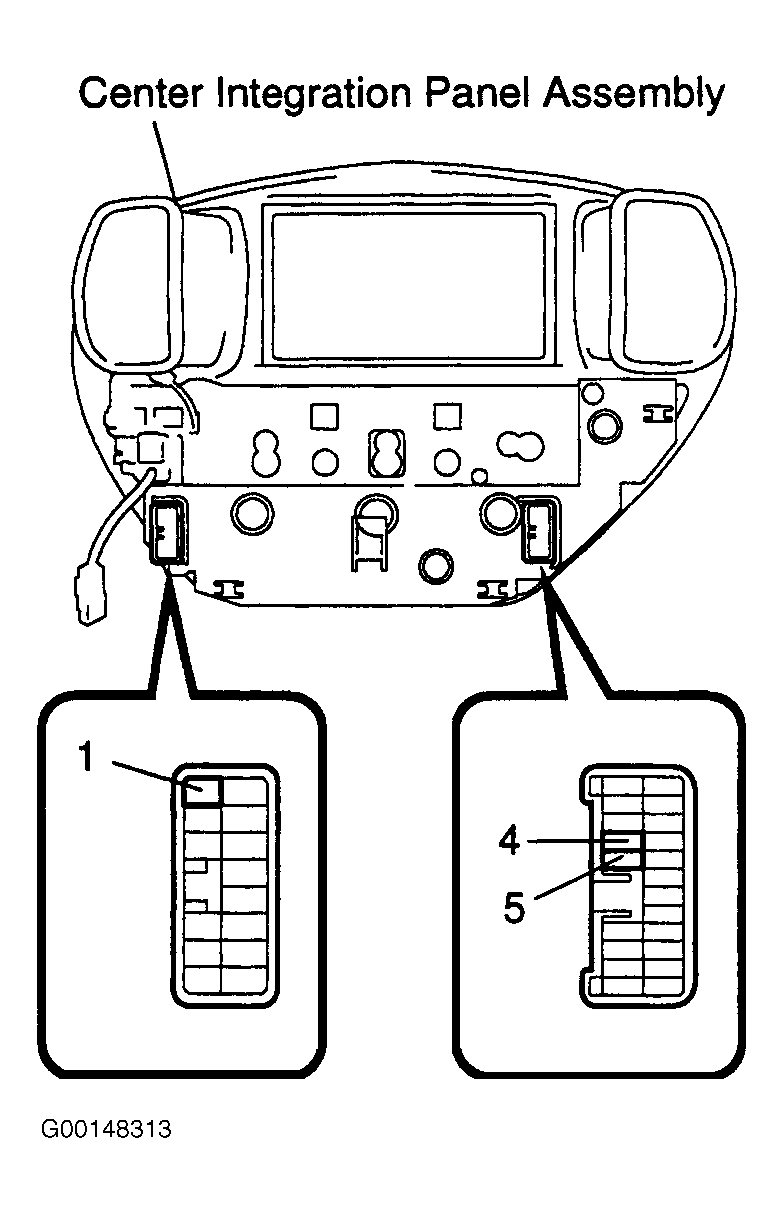

Remove the center integration panel assembly. See TOUCH SELECT SWITCHES under REMOVAL & INSTALLATION. Check for continuity between terminal No. 1 and 4. Check for continuity between terminal No. 1 and 5. See Fig 1 and Fig 2 . If continuity is not as specified, replace the center integration panel assembly.
