Component Locations

WARNING: This page is about a different car, the 2002 Toyota Tundra and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

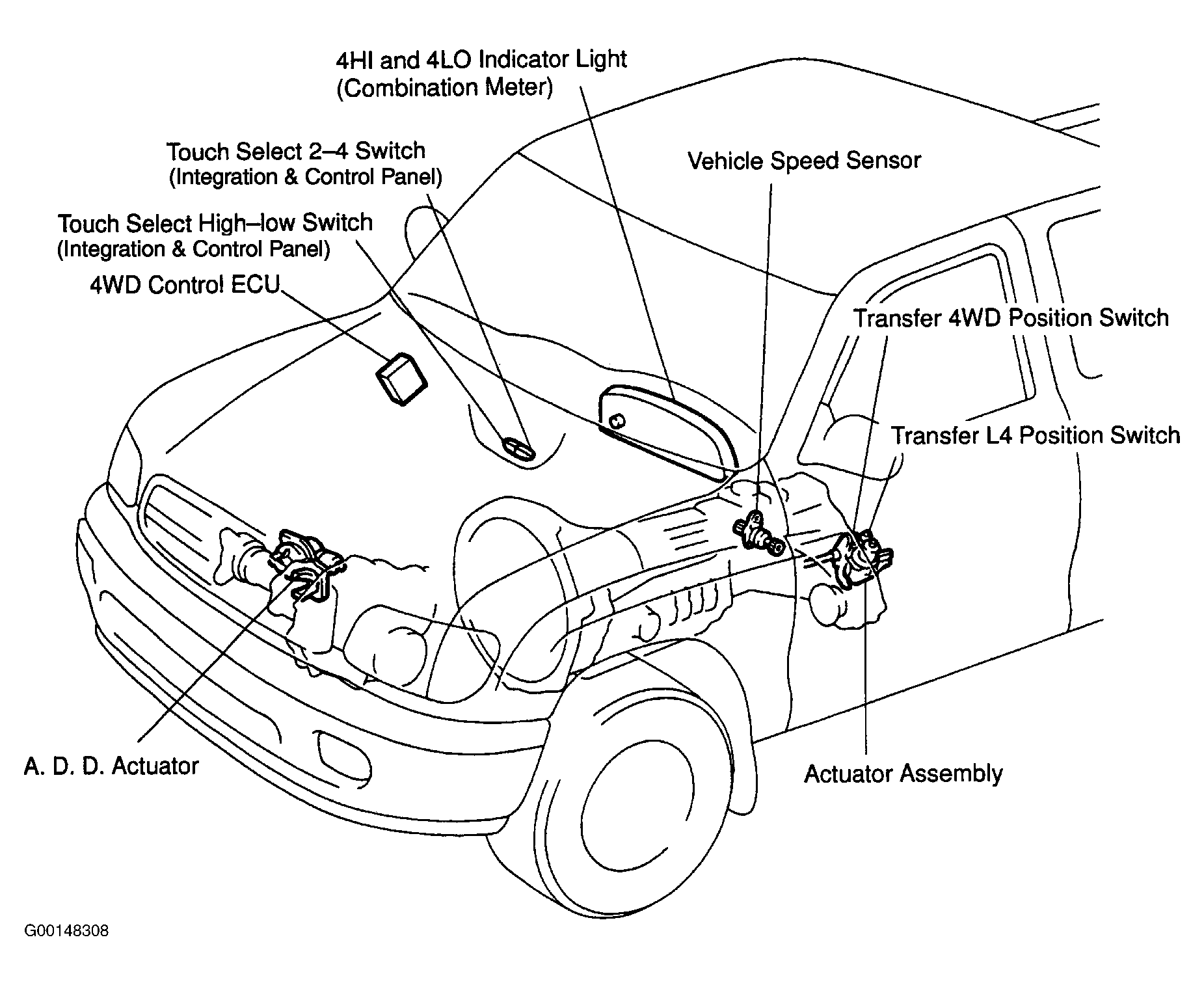

Fig 1: Identifying Transfer Shift Select Component Locations
G00148308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

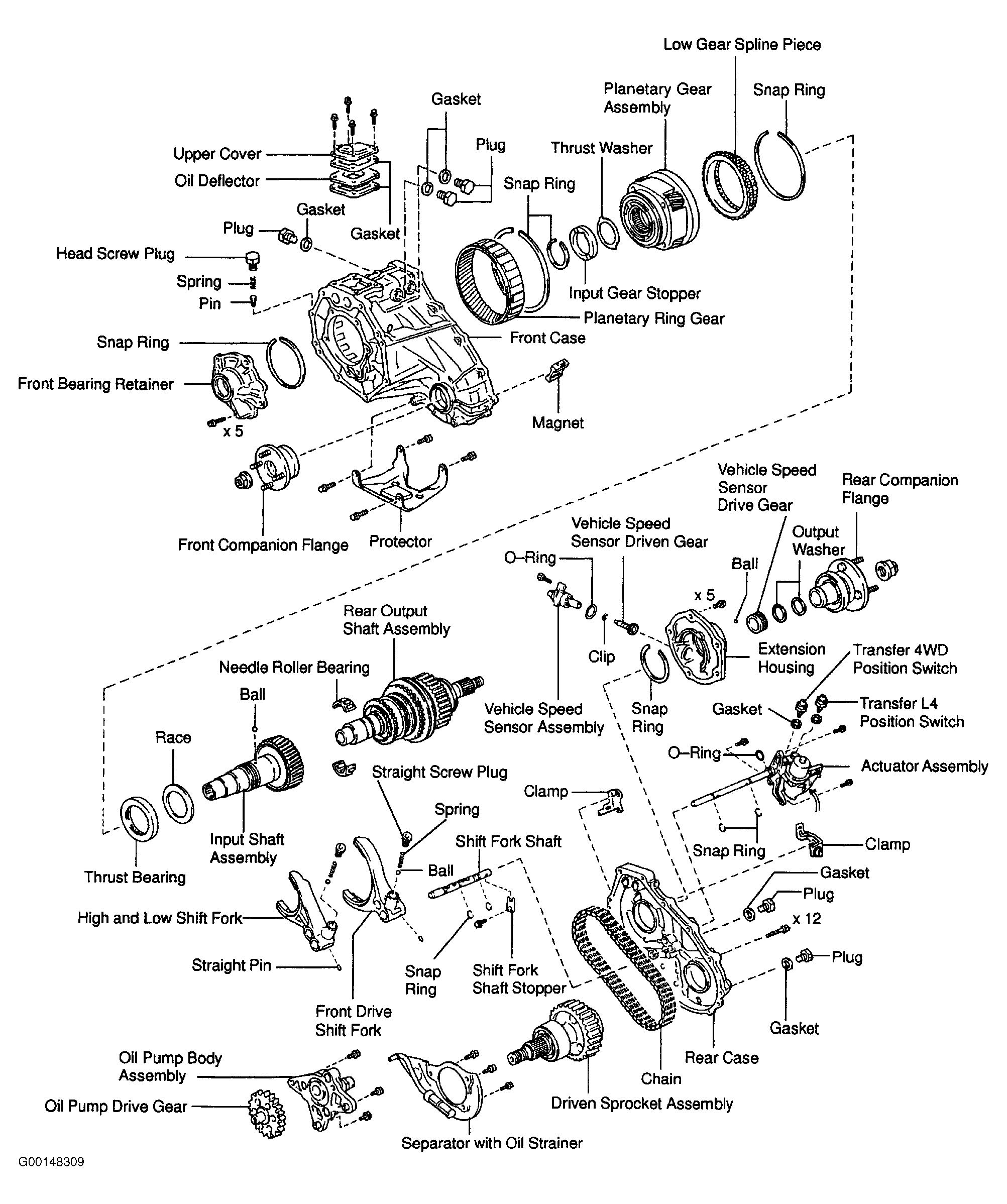

Fig 2: Exploded View Of Transfer Case Components
G00148309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
