Pin Voltage Tests
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

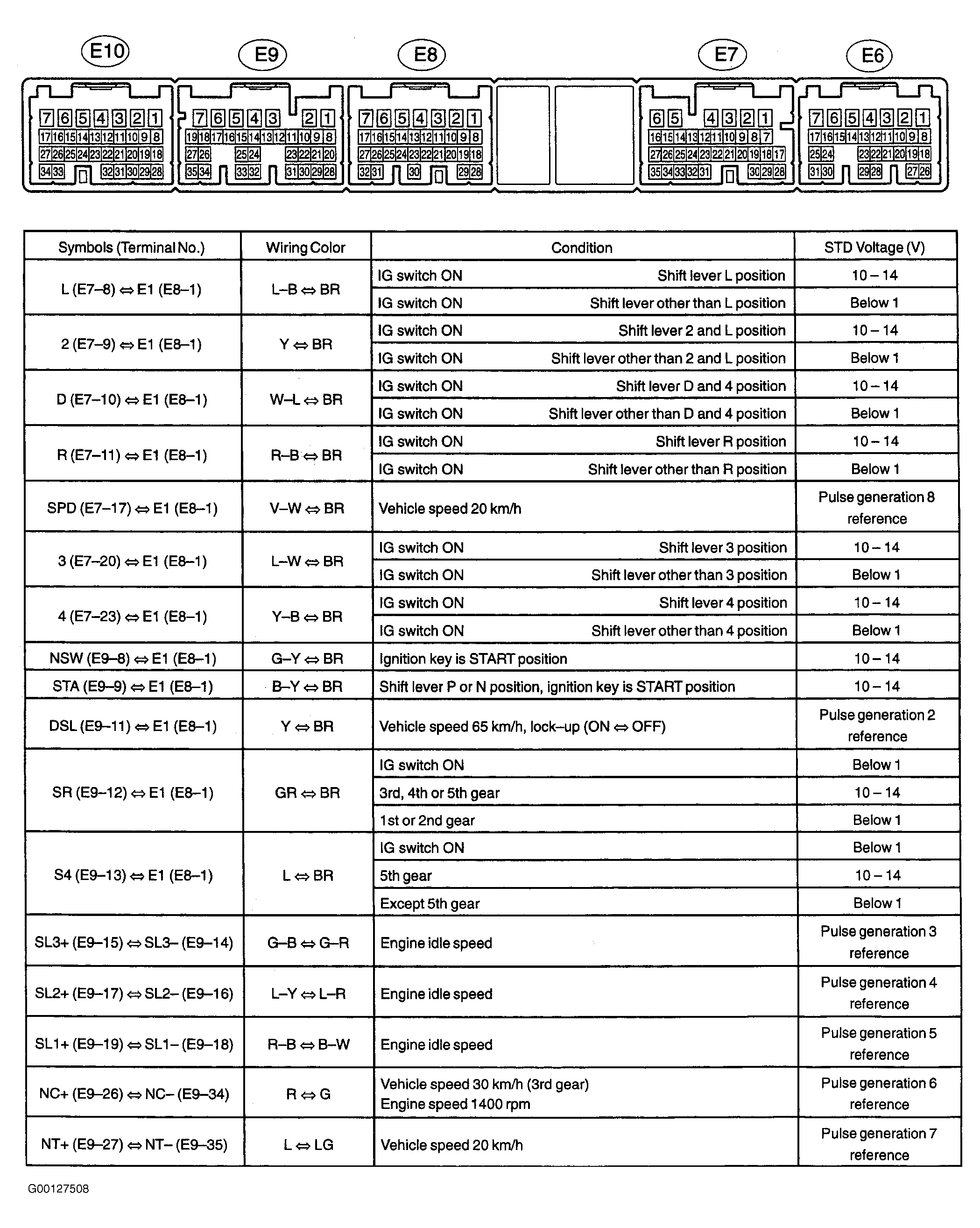

Access ECM located behind glove compartment. Turn ignition switch to ON position. Using a DVOM, backprobe ECM harness connector. Measure voltage between specified terminals. See Fig 1. Ensure voltage is as specified.
