Symptom Diagnosis

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sequoia, 2002 Toyota 4Runner, and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform PRELIMINARY INSPECTION prior to diagnosing by symptom.

NOTE: Use the following symptoms to aid in preliminary diagnosis. If a listed symptom matches the customer's concern, check the applicable items for possible cause.

Transmission symptom diagnosis and repair procedures are divided between on-vehicle and off-vehicle repairs. See Fig 1-Fig 3 .

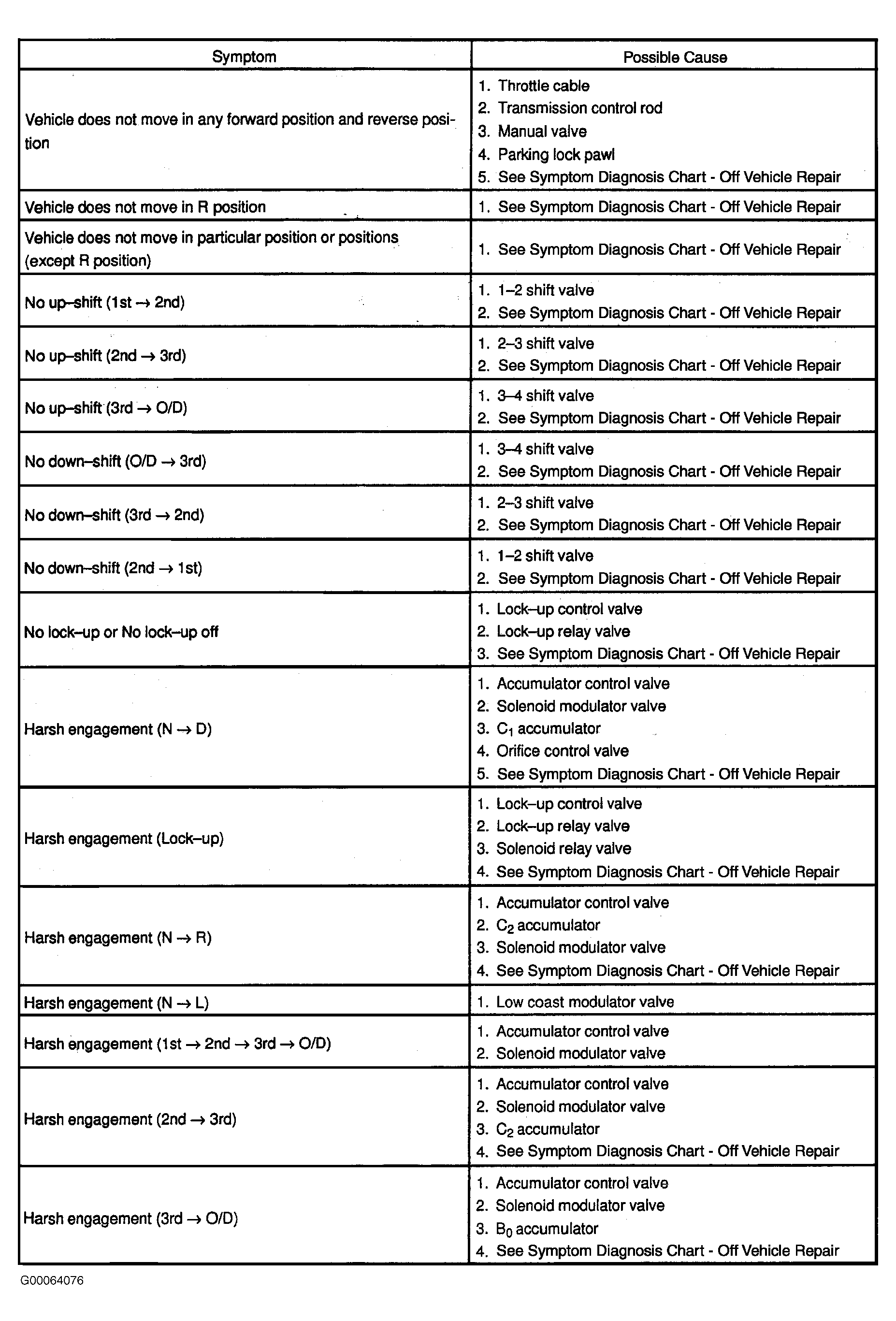

Fig 1: Symptom Diagnosis Chart (On-Vehicle Repair - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

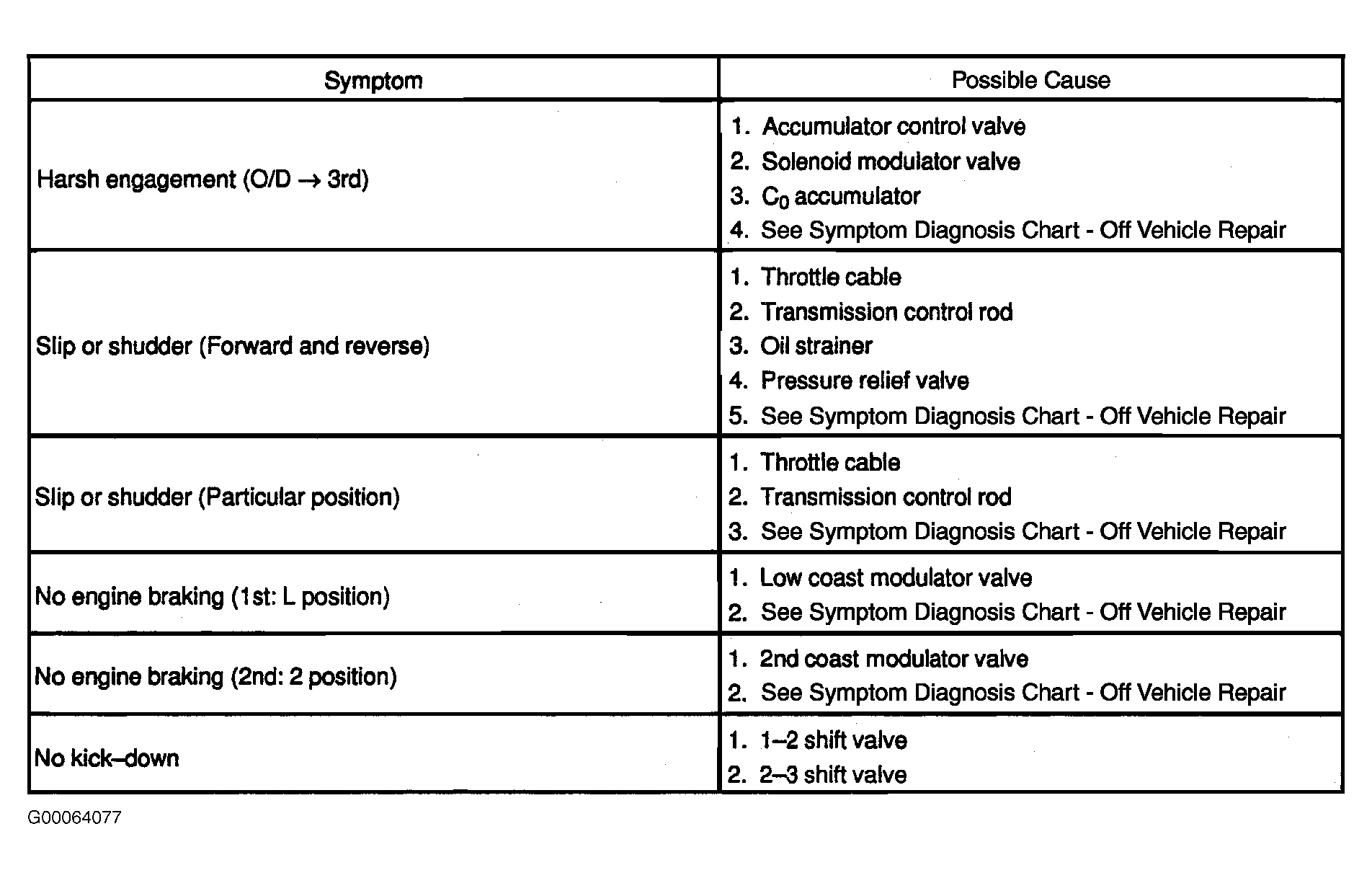

Fig 2: Symptom Diagnosis Chart (On-Vehicle Repair - 2 Of 2)

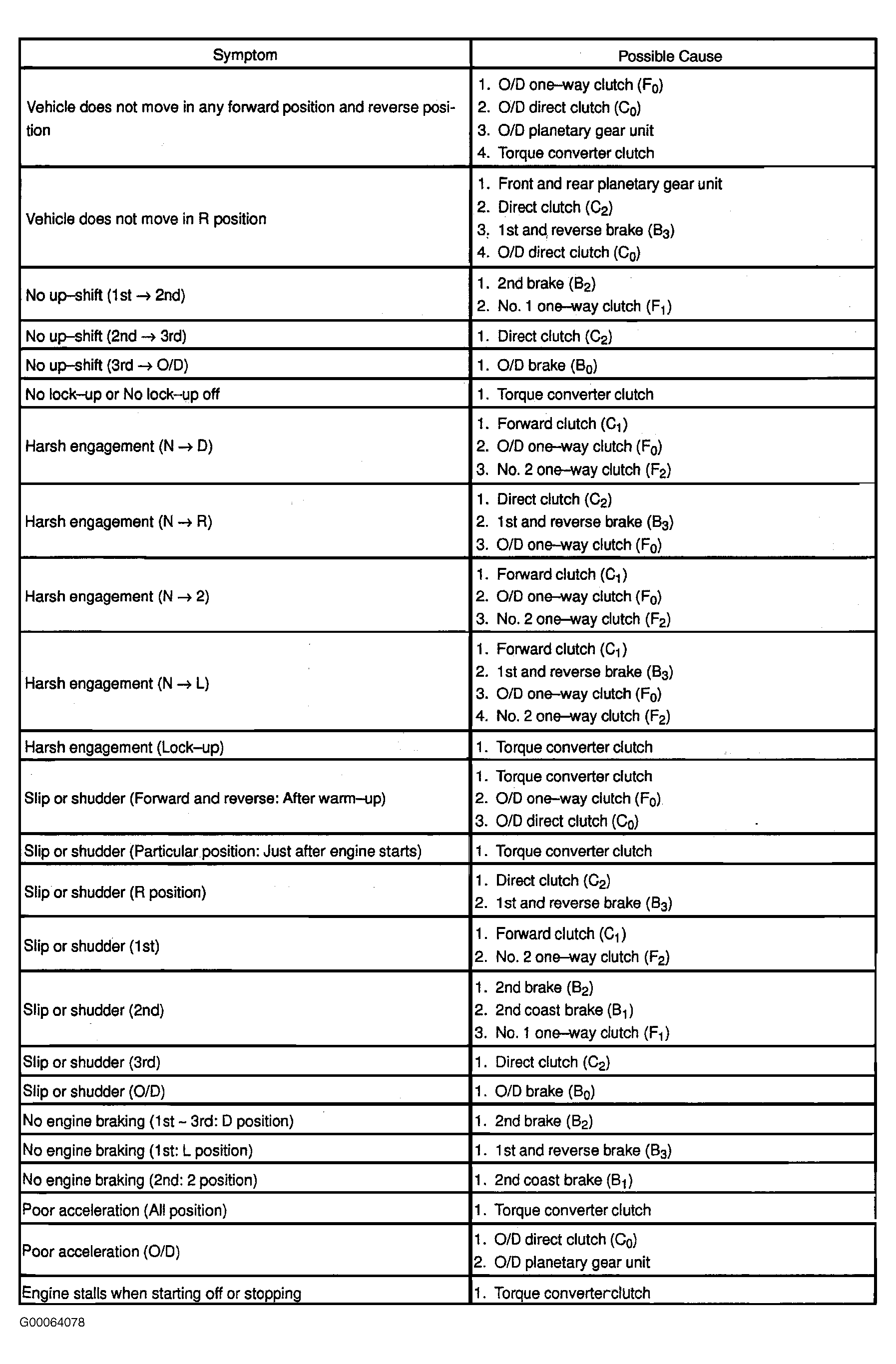

Fig 3: Symptom Diagnosis Chart (Off-Vehicle Repair)
