No. 1 & No. 2 Solenoids
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sequoia, 2002 Toyota 4Runner, and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

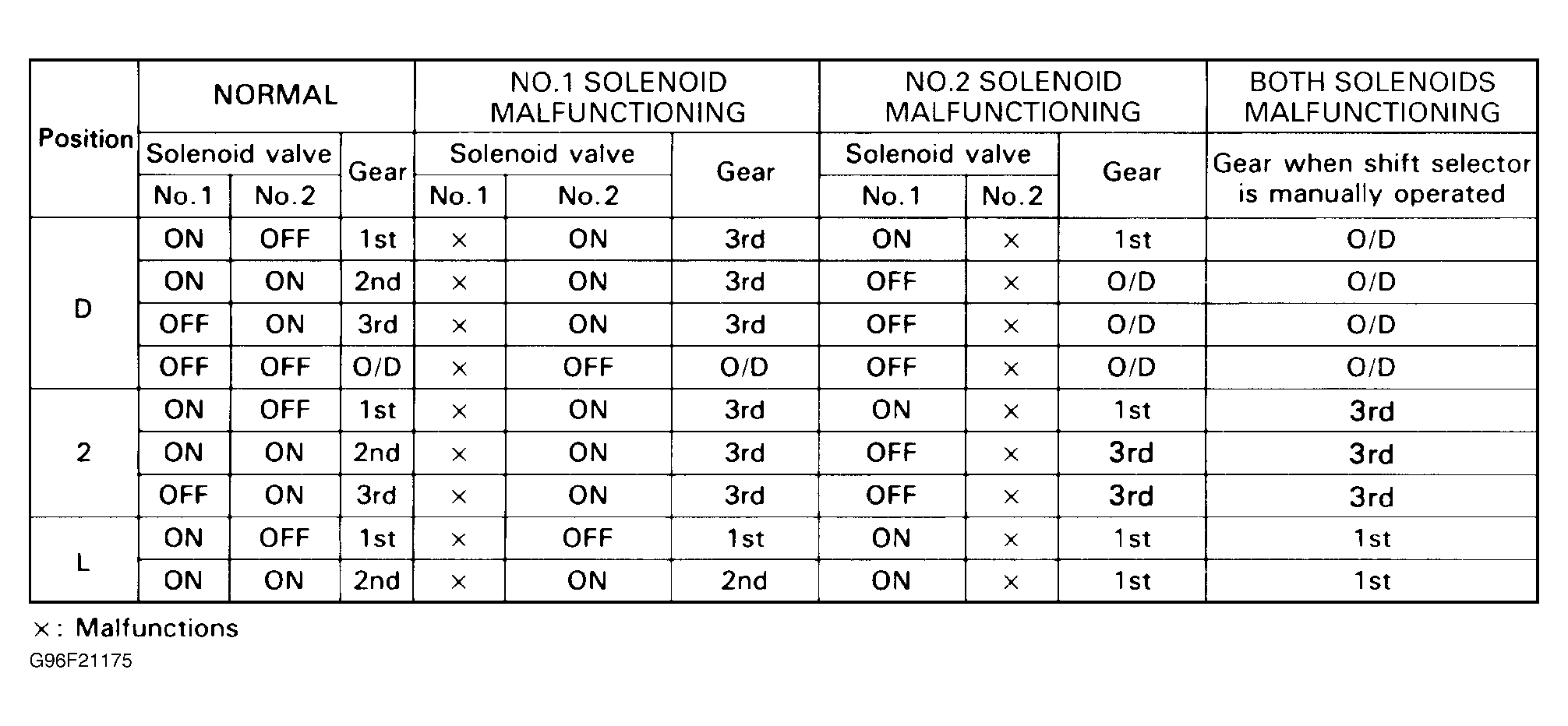

ECM controls transmission shifting by delivering an output signal to operate proper solenoid. Solenoids are located on transmission valve body. See Figure-Figure . Solenoids are operated in accordance with gearshift lever position. If a solenoid malfunctions, fail-safe gear may be selected. See Fig 1.
