Stop Light Switch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sequoia, 2002 Toyota 4Runner, and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

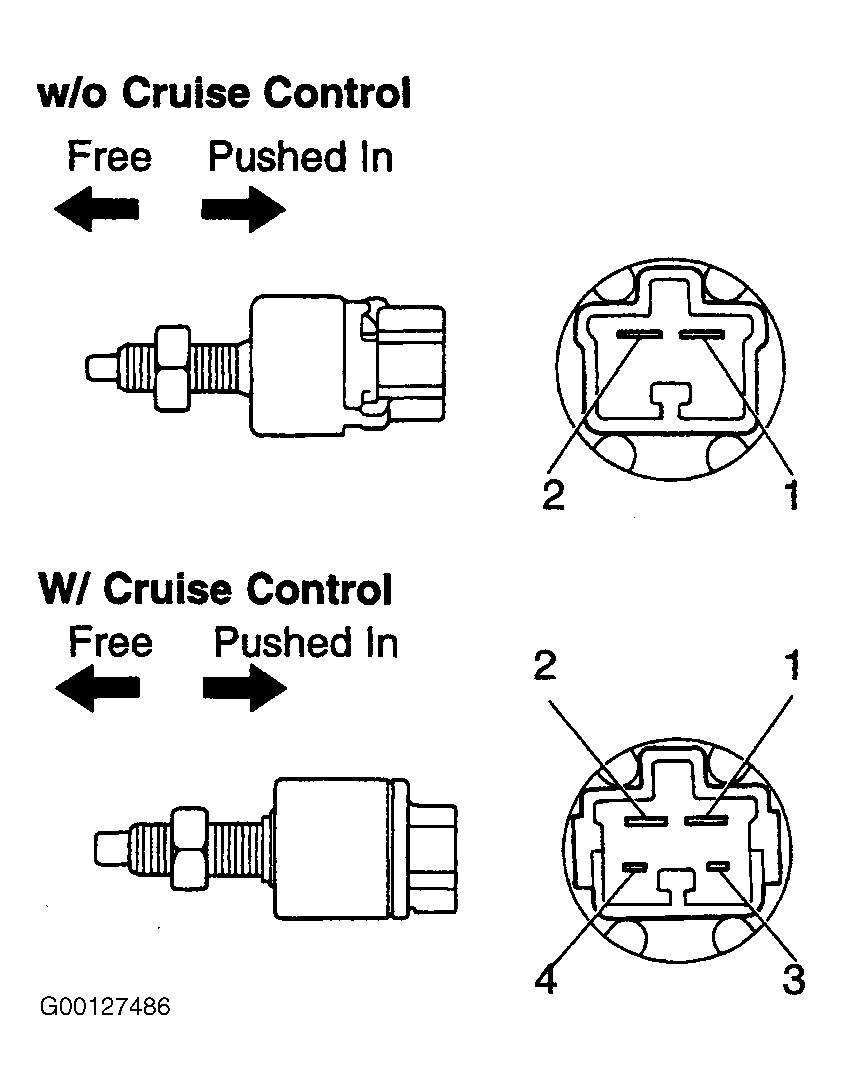

Disconnect electrical connector from stop light switch, located near brake pedal. Using DVOM, ensure continuity exists between switch terminals No. 1 and 2 with brake pedal applied. Continuity should exist between terminals No. 3 and 4 with pedal released. See Fig 1.
