Rear Planetary Gear, No. 2 One-Way Clutch & Output Shaft: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

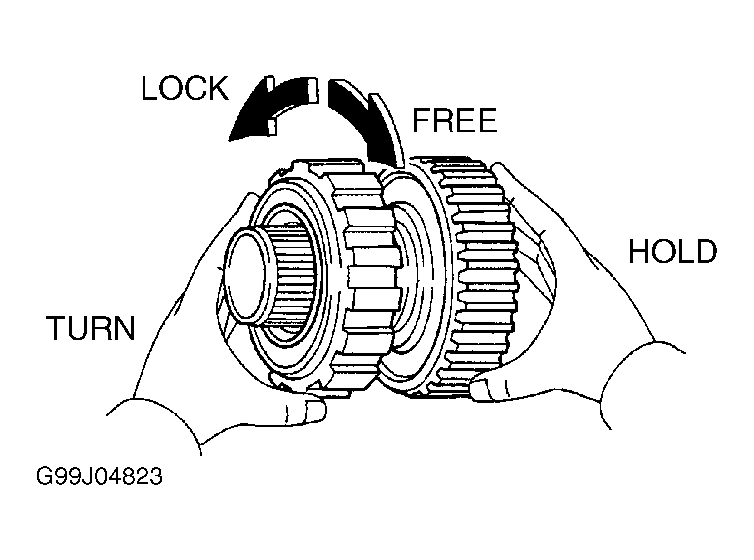

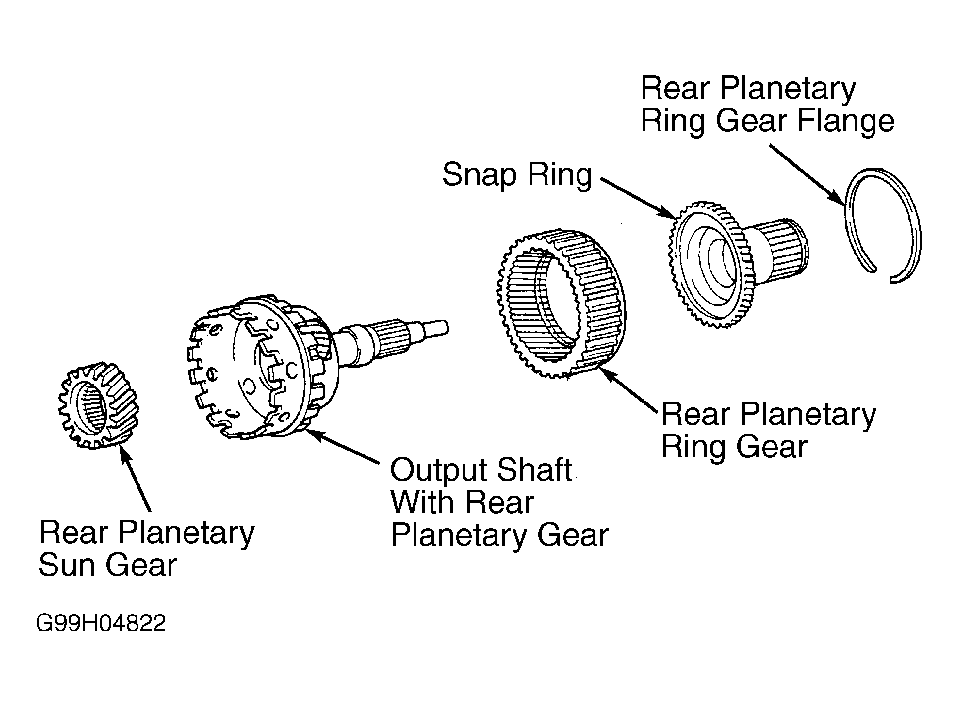

Remove rear planetary sun gear from rear planetary gear. See Figure. Hold rear planetary ring gear and check operation of No. 2 one-way clutch. Clutch should lock counterclockwise and turn freely clockwise. See Figure. Replace No. 2 one-way clutch as necessary.
