Multiple Disc Brake & Front Planetary Gear: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

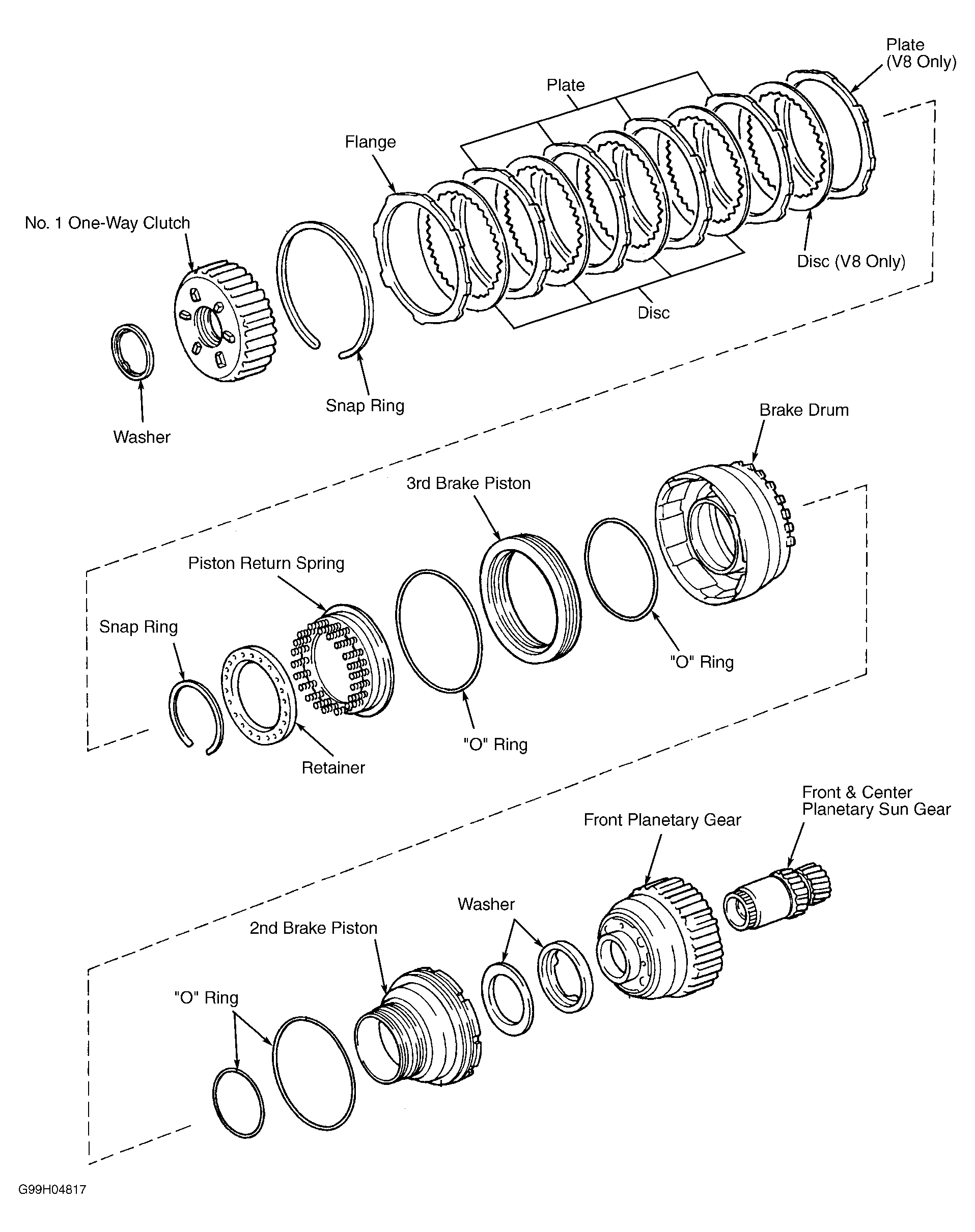

  1. Remove No. 1 one-way clutch from multiple disc brake. Remove front planetary gear with sun gear from multiple disc brake. Remove snap ring from brake drum. Remove flange, discs and plates. Note number and location of components. See Figure.
  2. Using appropriate compressor, compress piston return spring and remove snap ring. Place clutch drum on overdrive support and carefully apply air pressure to piston supply port. Remove 2nd-3rd compound clutch piston.
