Forward Clutch: Inspection

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

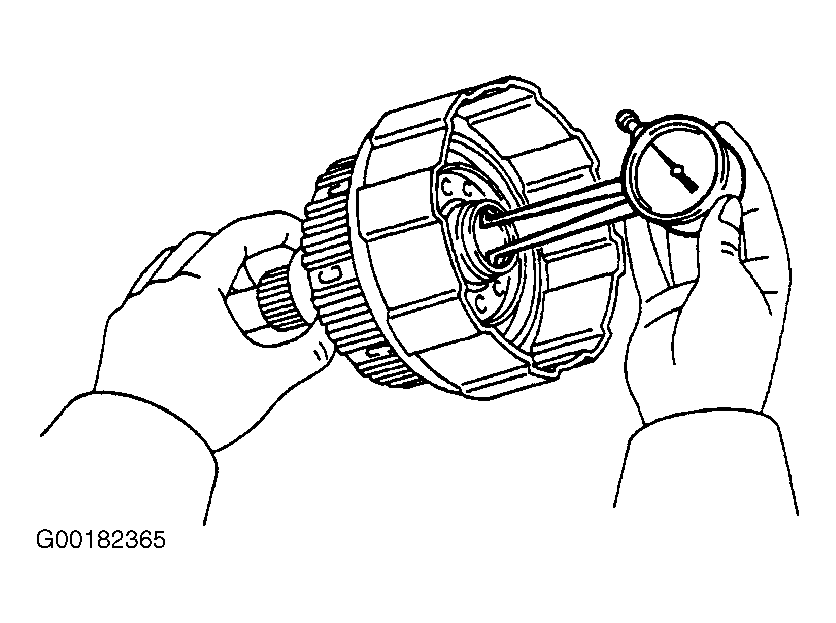

Clean all components (except discs) with solvent. Dry with compressed air. Inspect plates and discs for flaking or burnt areas. Ensure check ball is free in clutch piston. Apply air pressure to check ball area. Ensure check ball does not allow air to bleed through piston. Measure inside diameter of clutch drum bushing. Replace clutch drum if bushing diameter exceeds .791" (20.08 mm). See Figure.

CAUTION: Clutch discs should be soaked in ATF for 15 minutes prior to installation.
