Forward Clutch: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

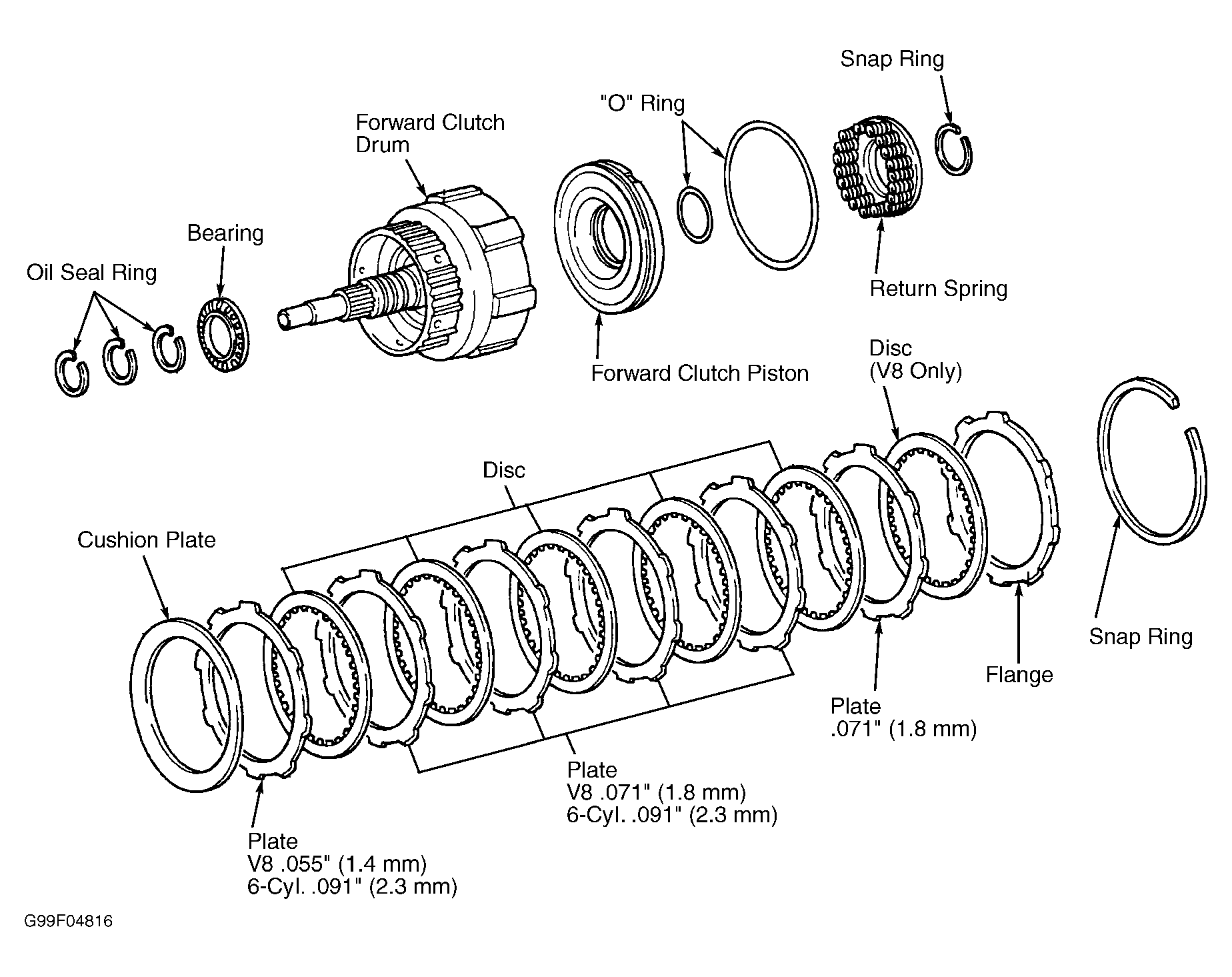

  1. Separate forward clutch assembly from direct clutch. Place overdrive support on wooden blocks and install forward clutch in overdrive support. Remove snap ring from clutch drum. Remove flange, discs, plates and cushion plate. See Figure. Note number and location of components.
  2. Using appropriate compressor, compress piston return spring and remove snap ring. Place clutch drum on overdrive support. Carefully apply air pressure to piston supply port, and remove clutch piston. Remove "O" rings from clutch piston and clutch hub. Remove oil seal rings.
