Direct Clutch: Reassembly
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
- Coat "O" rings with ATF. To complete reassembly, reverse disassembly procedure. Ensure piston return spring snap ring is fully seated and ring ends do not align with claw area on spring retainer of piston return spring.
- With clutch drum open area facing upward, install plates and discs, starting with a plate and then alternating with a disc. Install appropriate number of plates and discs.

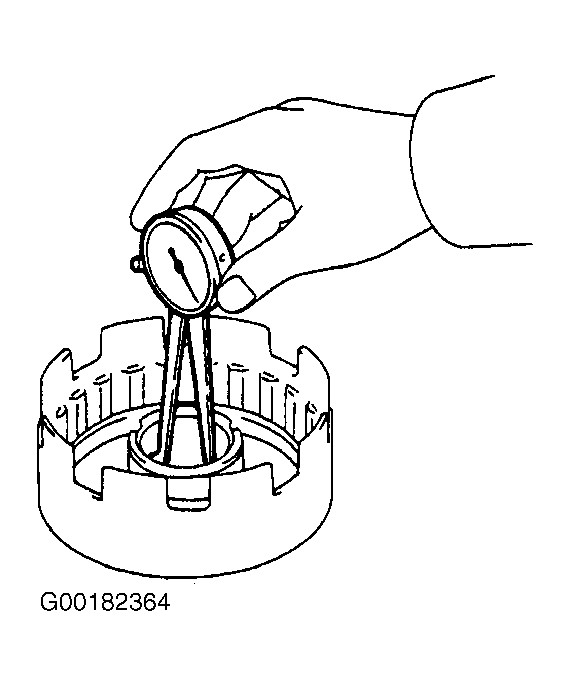

- Install flange with flat end facing toward disc. Install snap ring. Place clutch drum on overdrive support. Measure piston stroke with a dial indicator while applying 27-30 psi (1.9-2.1 kg/cm2 ) to piston supply port. See Fig 2.
- See DIRECT CLUTCH PISTON STROKE SPECIFICATIONS table. If piston stroke is not within specifications, check for incorrectly assembled components. Recheck piston stroke measurement.DIRECT CLUTCH PISTON STROKE SPECIFICATIONS
Application In. (mm) V8 Models .020-.031 (.50-.80) 6-Cyl. Models .016-.028 (.40-.70) - If piston stroke is not within specification, install different thickness flange. Flanges are available in thicknesses from .130" (3.30 mm) to .161" (4.10 mm), in .004" (.10 mm) increments. V8 models also have a .165" (4.20 mm) flange available.
