Direct Clutch: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

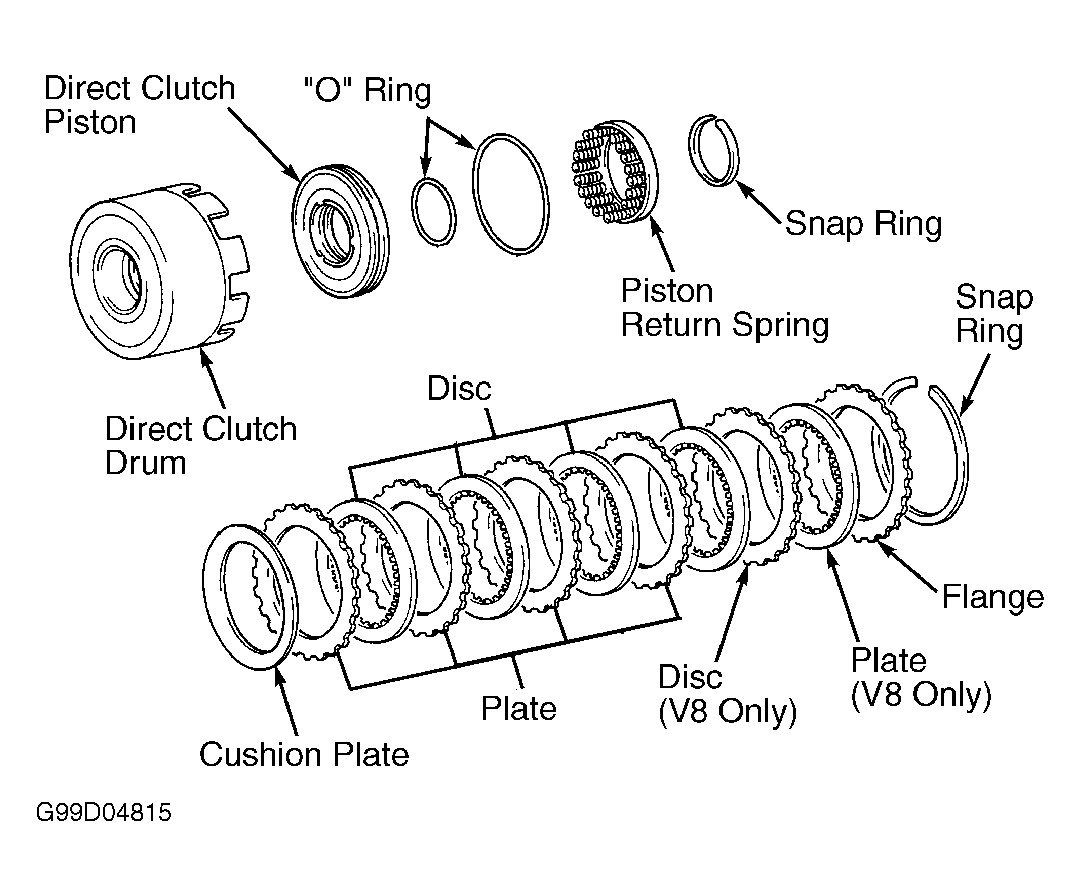

  1. Remove direct clutch drum from forward clutch assembly. Remove thrust washer from inside of clutch drum. Remove snap ring from clutch drum. Remove flange, discs and plates. Note number and location of components. See Figure.

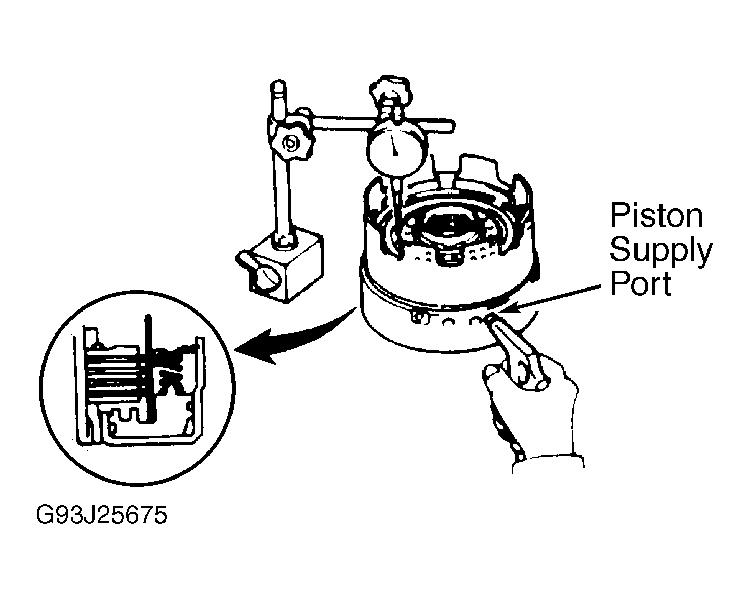

  2. Using appropriate compressor, compress piston return spring and remove snap ring. Place clutch drum on overdrive support and carefully apply air pressure to piston supply port, and remove clutch piston. See Figure.
