Center Planetary Gear: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

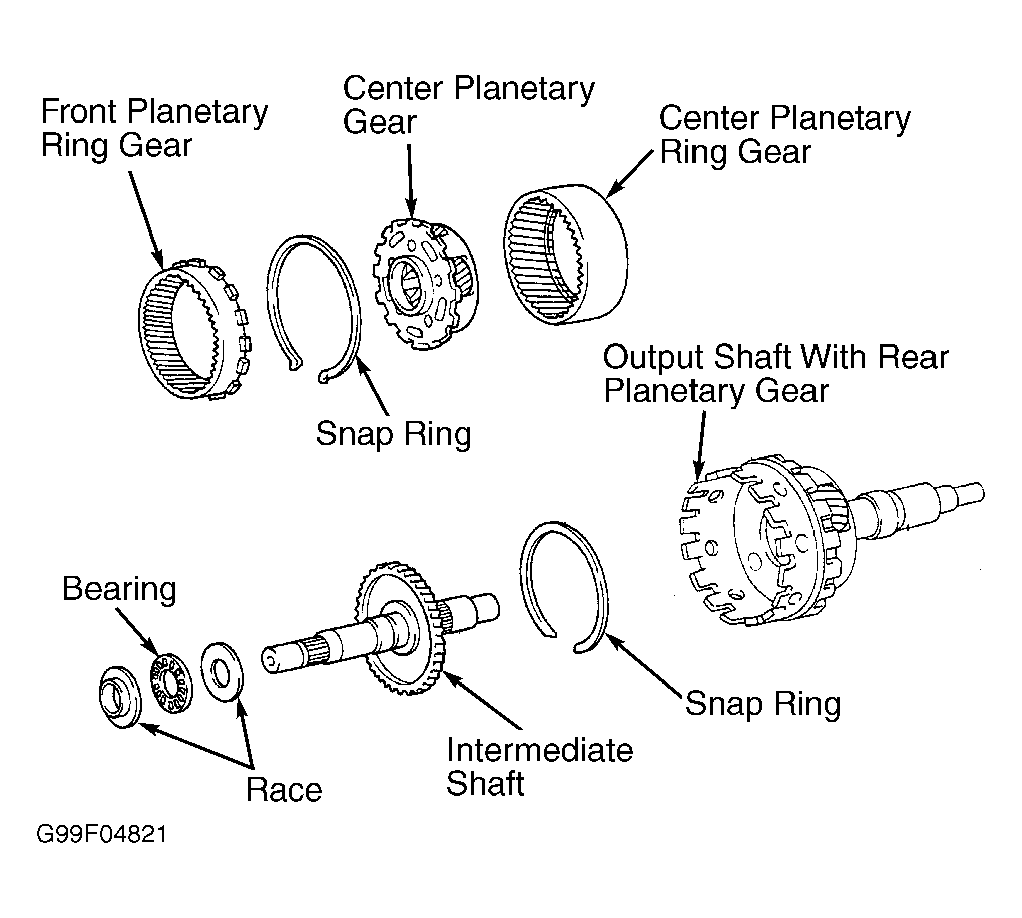

Using needle nose pliers, remove front planetary ring gear from center planetary gear. Remove center planetary gear, bearing and races from center planetary ring gear. See Figure. Remove snap ring and separate center planetary ring gear from intermediate shaft.
