1ST & Reverse Brake Assembly: Disassembly

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2005 Lexus SC 430, 2005 Lexus IS 300, 2005 Lexus GS 430, 2005 Lexus GS 300, and 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

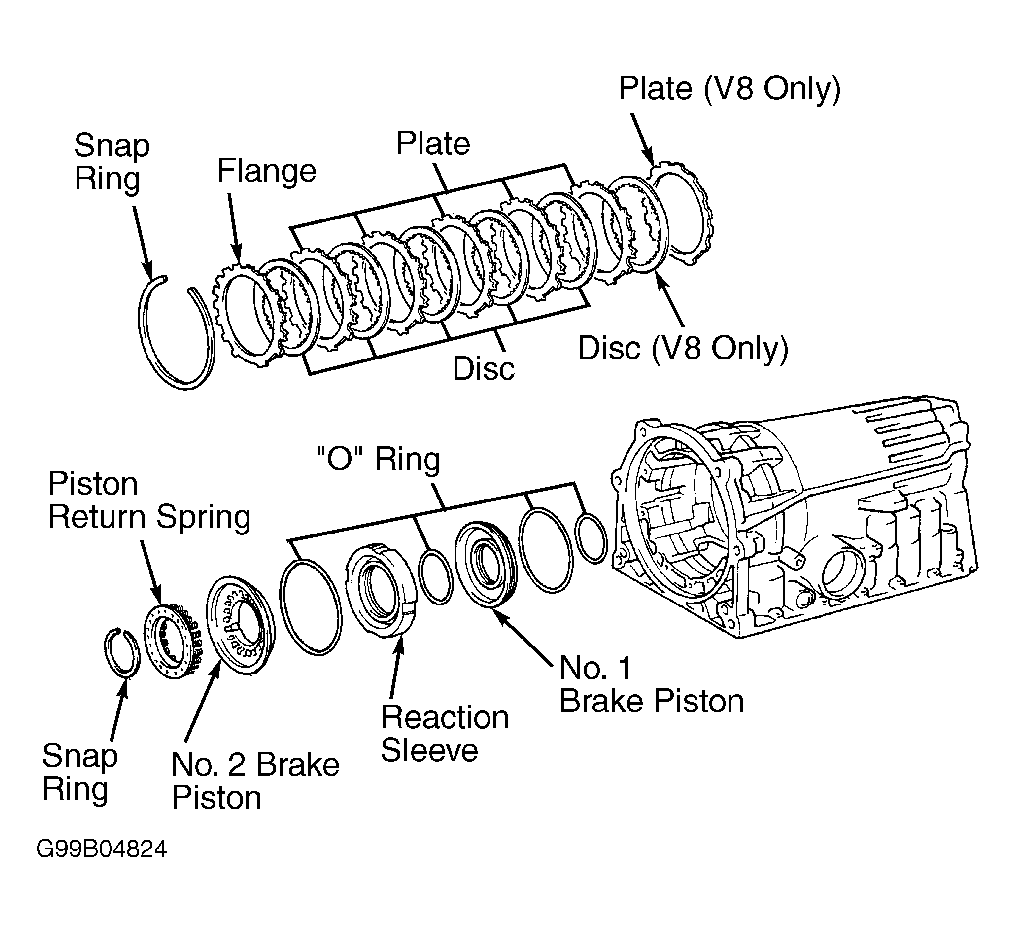

  1. Remove snap ring. Remove flange, discs and plates. See Figure. Note number and location of all components. Using appropriate compressor, compress piston return spring and remove snap ring.

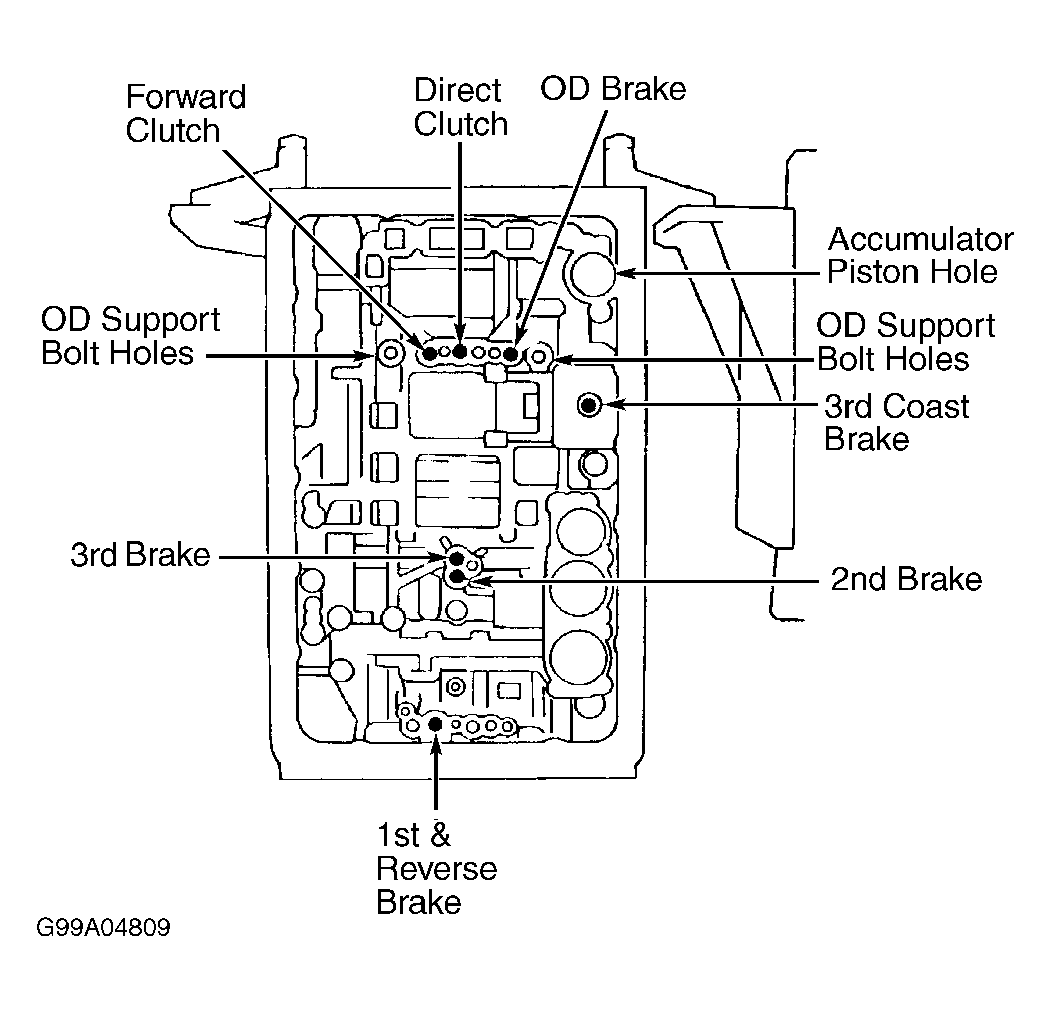

  2. Hold clutch piston and carefully apply air pressure to oil pump port. See Figure. Remove 1st and reverse clutch piston.

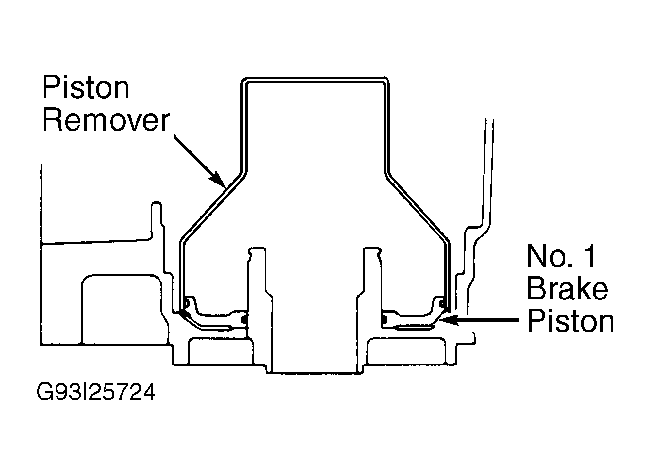

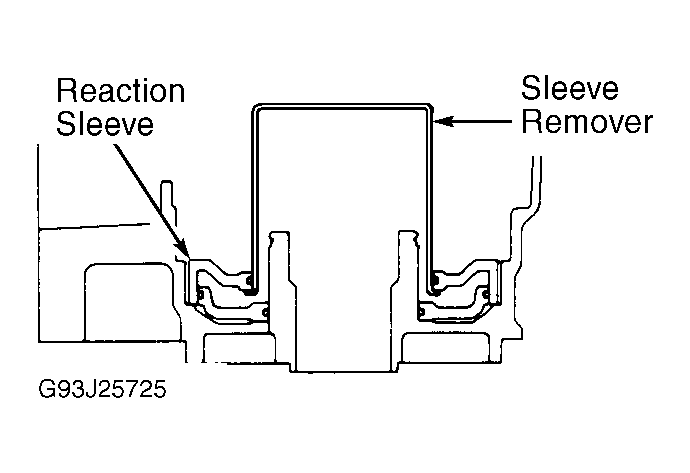

  3. Insert Sleeve Remover (09350-07080) behind reaction sleeve. Remove reaction sleeve from case. See Figure. Insert Piston Remover (09350-07090) behind No. 1 brake piston. Remove No. 1 brake piston from case. See Figure.
