O/D Main Switch (Floor Shift): Installation

WARNING: This page is about a different car, the 2002 Toyota Avalon and 2001 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Install the O/D main switch and harness assembly into gearshift lever assembly. See Fig 1.
Secure the knob and button with screws as shown. See Fig 3.
Install both wire terminals into the connector. See Fig 2.
Install the gearshift indicator plate. See Fig 4. Install the floor console assembly. See SHIFT INTERLOCK SYSTEMS - LEXUS & TOYOTA article.

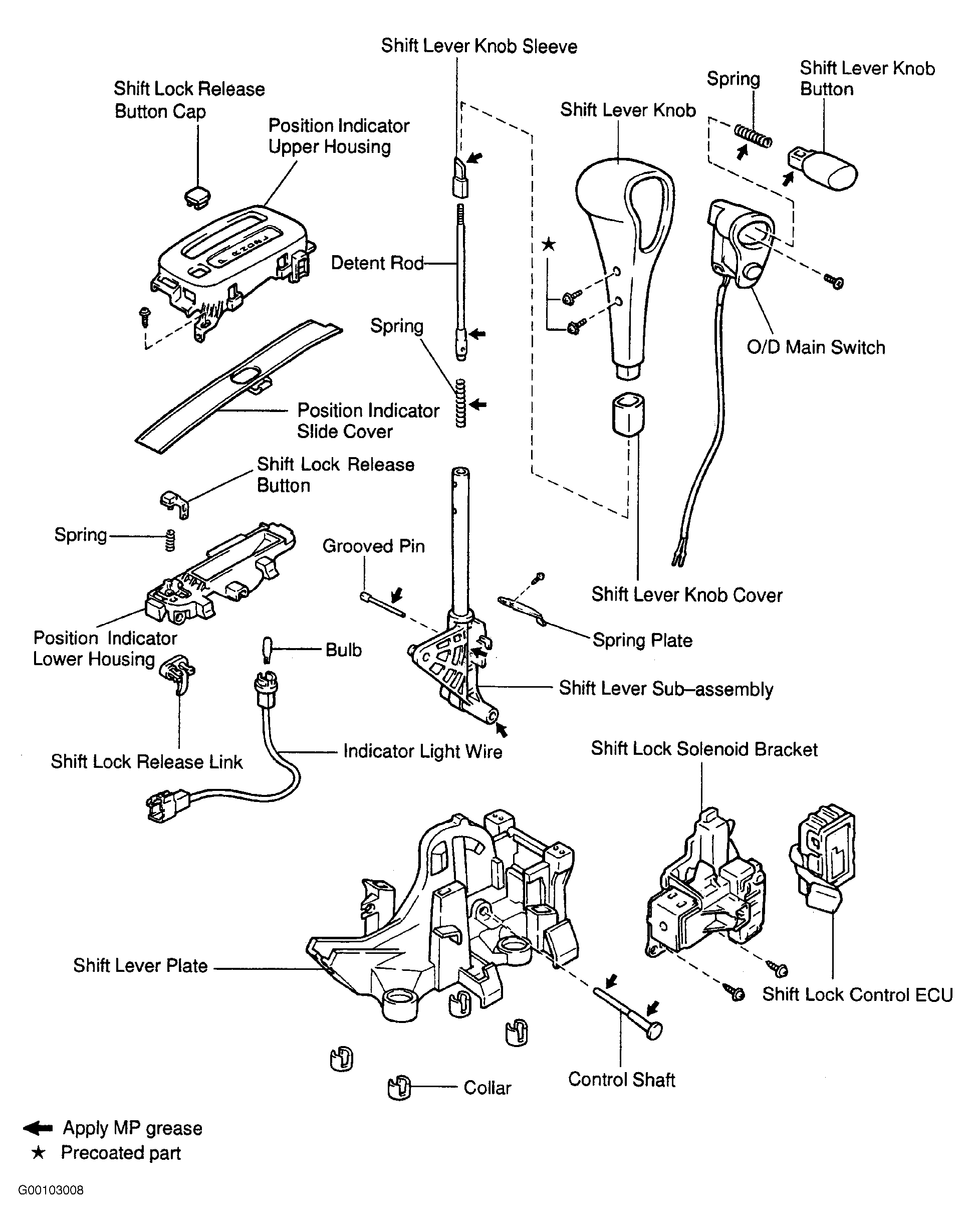

Fig 1: Disassembled View Of Gearshift Lever Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Removing & Installing O/D Main Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Removing & Installing Gearshift Lever Knob & Spring

Fig 4: Removing & Installing Gearshift Indicator Assembly
